Modulation Selection, Stick Mode

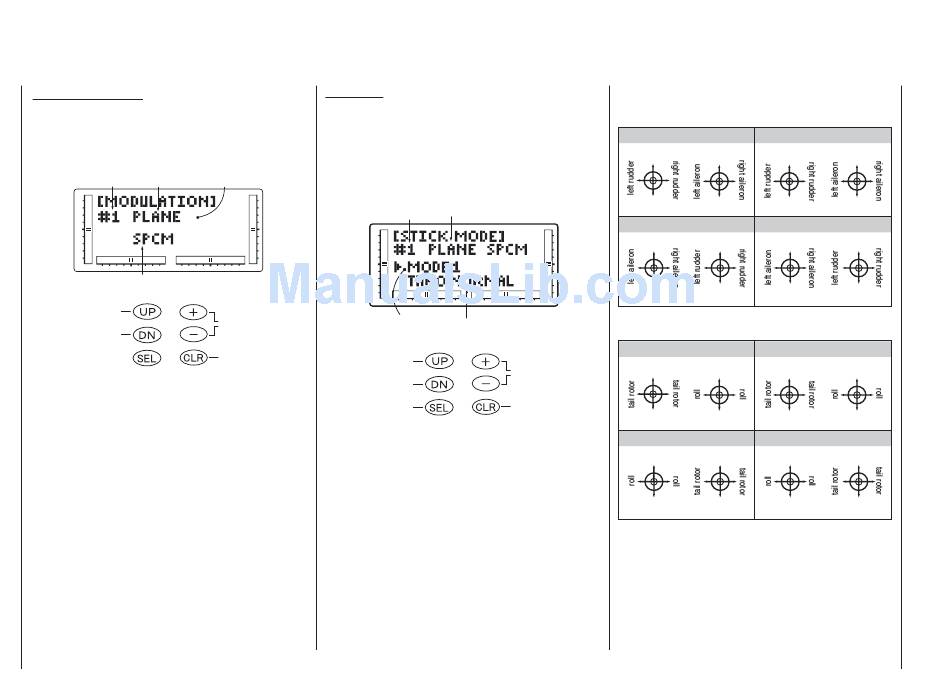

Modulation Selection

The Modulation Selection function enables your mx-12
to transmit to a variety of GRAUPNER receivers. You
can select from either S-PCM (Pulse Code Modulation)
or from PPM (Pulse Position Modulation [=FM]).
Model Number Type
Modulation
Go to Switch Select
menu
Go to Modulation
menu
Accessing the Modulation Function
1. Move the power switch to the ON position while
pressing the Down and Select key to access the
System mode.
2. Press either the Up or Down key until MODULATI-
ON appears at the top of the LCD.
3. Press either (+) or (-) keys to change the modulation
type.
4. Pressing the Clear key will also reset the modulati-
on selection to the factory preset S-PCM.
5. Press the Down key to access the MODEL COPY
function.
6. Press the Up key to access the TRAINER function.
7. To exit the MODULATION function, press the Down
and Select keys simultaneously.
Note: In the normal display, the selected modulation
type will appear in the upper right of the LCD.
38 System Mode

Stick Mode

The four primary control functions are: aileron, elevator,
rudder and throttle / airbrake for fixed-wing models; roll,
pitch-axis, tail rotor and throttle / collective pitch for heli-
copters, and there are basically four different options for
assigning them to the sticks. The choice of stick mode is
Model Name
a matter of the individual model flyer's preference.
Model No.
Stick mode
Change trainer mode
Return to Normal
To Trainer menu
mode
To Modulation menu
Select stick mode /
direction of control
This is the procedure for changing stick mode:
1. Hold DOWN and SELECT pressed in simultane
ously while you move the On/Off switch to ON; this
takes you to System mode.
2. Press UP or DOWN until the screen displays
STICK MODE at the top.
3. Press (+) or (-) to change the stick mode.
4. Pressing Clear resets the stick mode to the factory
default (Mode 1).
5. Press the DOWN button to move to the MODULA-
TION function.
6. Press UP to move on to the TRAINER function.
7. You can leave the STICK MODE function by pres-
Fixed-wing stick mode:
Type
Direction of control
Helicopter stick mode:
Select stick mode /
direction of control
Return to Normal
mode
sing DOWN and Select simultaneously.
MODE 1 (Throttle at right stick) MODE 2 (Throttle at left stick)
elev. down full throttle full throttle
elev. up idle idle
MODE 3 (Throttle at right stick) MODE 4 (Throttle at left stick)
elev. down full throttle full throttle
elev. up
idle idle
MODE 1 (Throttle at right stick) MODE 2 (Throttle at left stick)
pitch axis throttle throttle
pitch axis
throttle throttle
MODE 3 (Throttle at right stick) MODE 4 (Throttle at left stick)
pitch axis throttle throttle
pitch axis throttle throttle
elev. down
elev. up
elev. down
elev. up
pitch axis
pitch axis
pitch axis
pitch axis
