Function mode AIRPLANE

Servo Travel Screen

Up key.
8. Access the MIXING FUNCTIONS function by pres-
sing the Up key.
9. Exit the FAIL SAFE function by pressing the Down
and Select keys simultaneously.

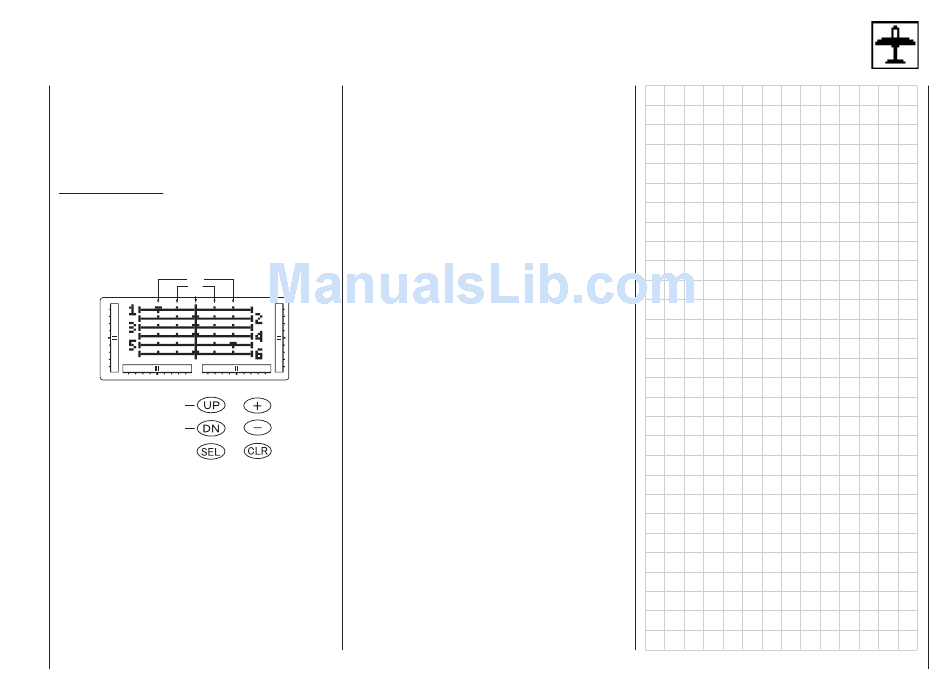

Servo Travel Screen
The Servo Travel Screen is used to verify the stick mo-
vements of the transmitter. It can also be used to verify
the mixing functions have been performed correctly
without the need to turn on the aircraft.
100%
50%
Neutral
Change D/R &
Exp menu
Go to Fail Safe menu
Accessing the Servo Travel Screen
1. Place the transmitter power switch in the ON positi-
on.
2. Access the Function mode. To do so, press the
Down and Select keys simultaneously. Press
either the Up or Down key until the SERVO
TRAVEL screen appears.
3. Move the sticks. The indicators correspond to the
following:
Indicator 1: Throttle
Indicator 2: Aileron
Indicator 3: Elevator
Indicator 4: Rudder
Indicator 5: Gear
Indicator 6: Flap
4. Access the D/R & EXP screen by pressing the Up
key.
5. Access the FAIL SAFE function by pressing the Up
key.
6. Exit the SERVO TRAVEL screen function by pres-
sing the Down and Select keys simultaneously.
Function mode AIRPLANE 25
