Swashplate Selection - GRAUPNER MX-12 - PROGRAMMATION Manual

System Mode

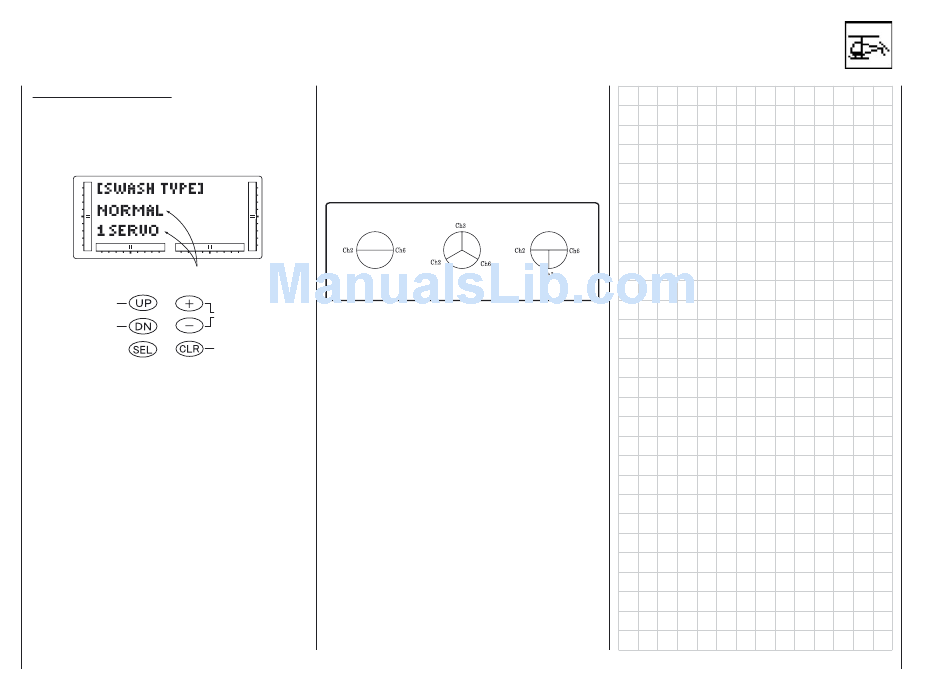

Swashplate Type Selection
Swashplate Type Selection
The Swashplate Mixing function enables the mx-12
system to operate many different types of swashplate
control systems, including 3 versions of CCPM.
Initial Setting
1 Servo (Normal)
Swashplate Indicator
Go to Model Select
menu
Go to Switch Select
menu
The Swashplate options are:
1 Servo: Non-CCPM, standard mixing type helicopter
2 Servo/180° CCPM
3 Servo/120° CCPM (GRAUPNER style, most popular)
4 Servo/90° CCPM
Definition of Swashplate Types
1. While pressing the Down and Select keys, switch
the transmitter to the ON position to enter the sys-
tem mode.
2. Press either the Up or Down key until SWASH
TYPE is displayed in the upper center portion of the
LCD.
3. Press the (+) or (-) keys to change the Swashplate
type.
4. Pressing the Clear key will reset the Swashplate
Type to the Normal position. 7. To access the AUX2
44 System Mode
Switch function, press the Down key.
5. Press the Up key to access the MODEL SELECT
function.
6. Press the Down key to access the SWITCH
SELECT function.
7. Exit the SWASH TYPE function by pressing the
Down and Select keys simultaneously.
2 Servo/180° CCPM
Turn selected type on
or off
Return to Default
mode
CCPM Servo Variations
3 Servo/120° CCPM
3 Servo/90° CCPM
(Graupner style, most popular)
