Function mode HELICOPTER

Servo Travel Screen

6. Repeat steps 4 and 5 until all six controls have been
set.
7. Access the SERVO TRAVEL screen by pressing the
Up key.
8. Access the MIXING FUNCTIONS function by pres-
sing the Up key.
9. Exit the FAIL SAFE function by pressing the Down
and Select keys simultaneously.

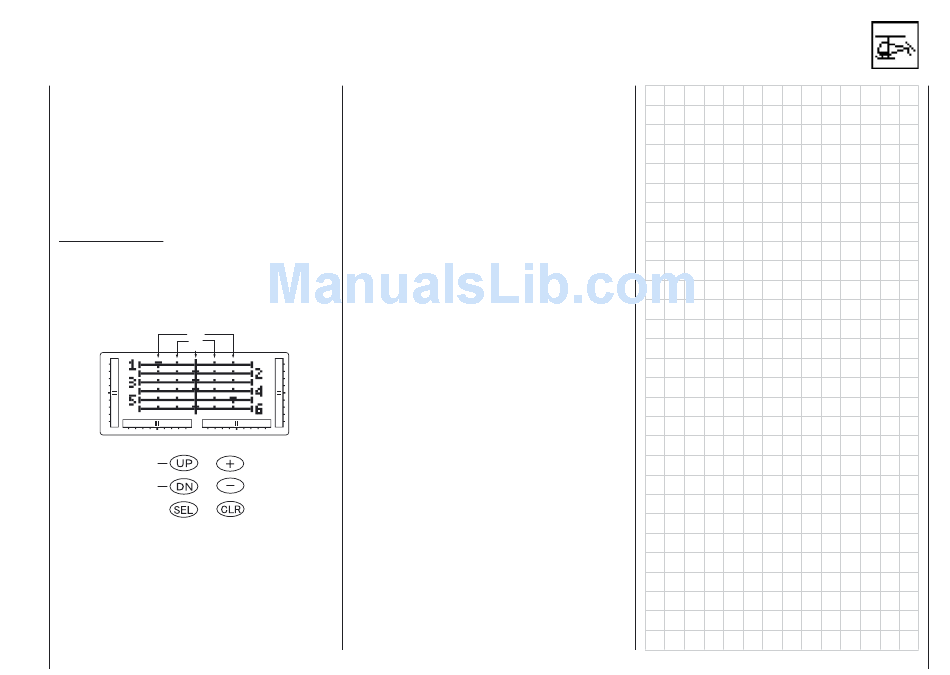

Servo Travel Screen
The Servo Travel Screen is used to verify the stick
movements of the transmitter.
It can also be used to verify the mixing functions have
been performed correctly without the need to turn on the
aircraft.
100%
50%
Neutral
Go to D/R & Exp menu
Go to Fail Safe menu
Accessing the Servo Travel Screen
1. Place the transmitter power switch in the ON positi-
on.
2. Access the Function mode. To do so, press the
Down and Select keys simultaneously. Press
either the Up or Down key until the SERVO TRA-
VEL screen appears.
3. Move the sticks. The indicators correspond to the
following:
Indicator 1: Throttle
Indicator 2: Aileron
Indicator 3: Elevator
Indicator 4: Rudder
Indicator 5: Gear
Indicator 6: Pitch
4. Access the D/R & EXP screen by pressing the Up
key.
5. Access the FAIL SAFE function by pressing the Up
key.
6. Exit the SERVO TRAVEL screen function by pres-
sing the Down and Select keys simultaneously.
Function mode HELICOPTER 35
