TX Matrix Plus Router Hardware Guide

Craft Interface Serial Number Label

452

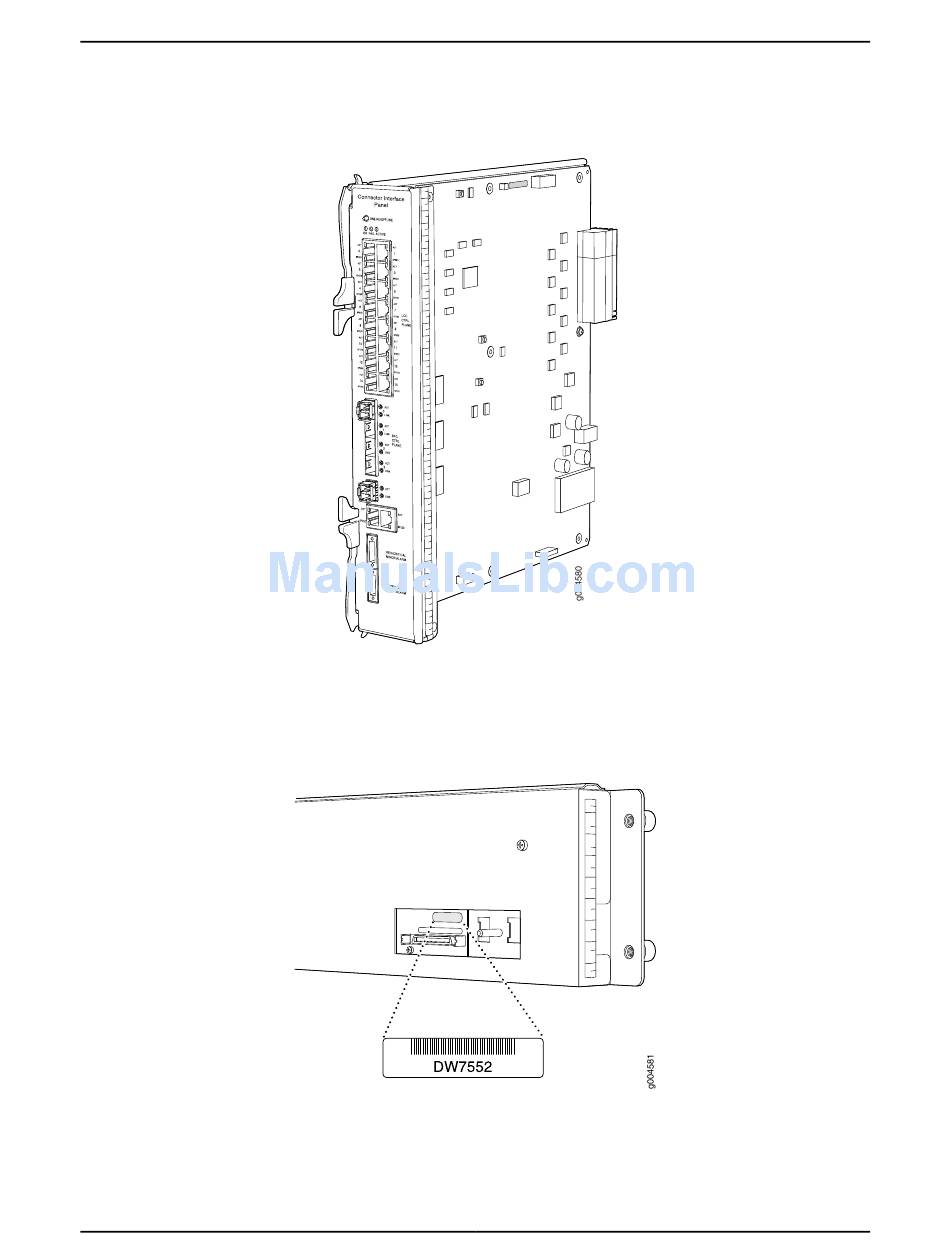

Figure 149: TX Matrix Plus TXP-CIP Serial Number Label

NC
C
NO
NC
C
NO
SP EE D:
YE L=1
0/1 00
GR N= 100
0
The serial number is located on the back of the craft interface panel, behind the alarm
LEDs (see Figure 150 on page 452).

Figure 150: TX Matrix Plus Craft Interface Serial Number Label

Serial number ID label
