Cleaning tool
Copyright © 2010, Juniper Networks, Inc.

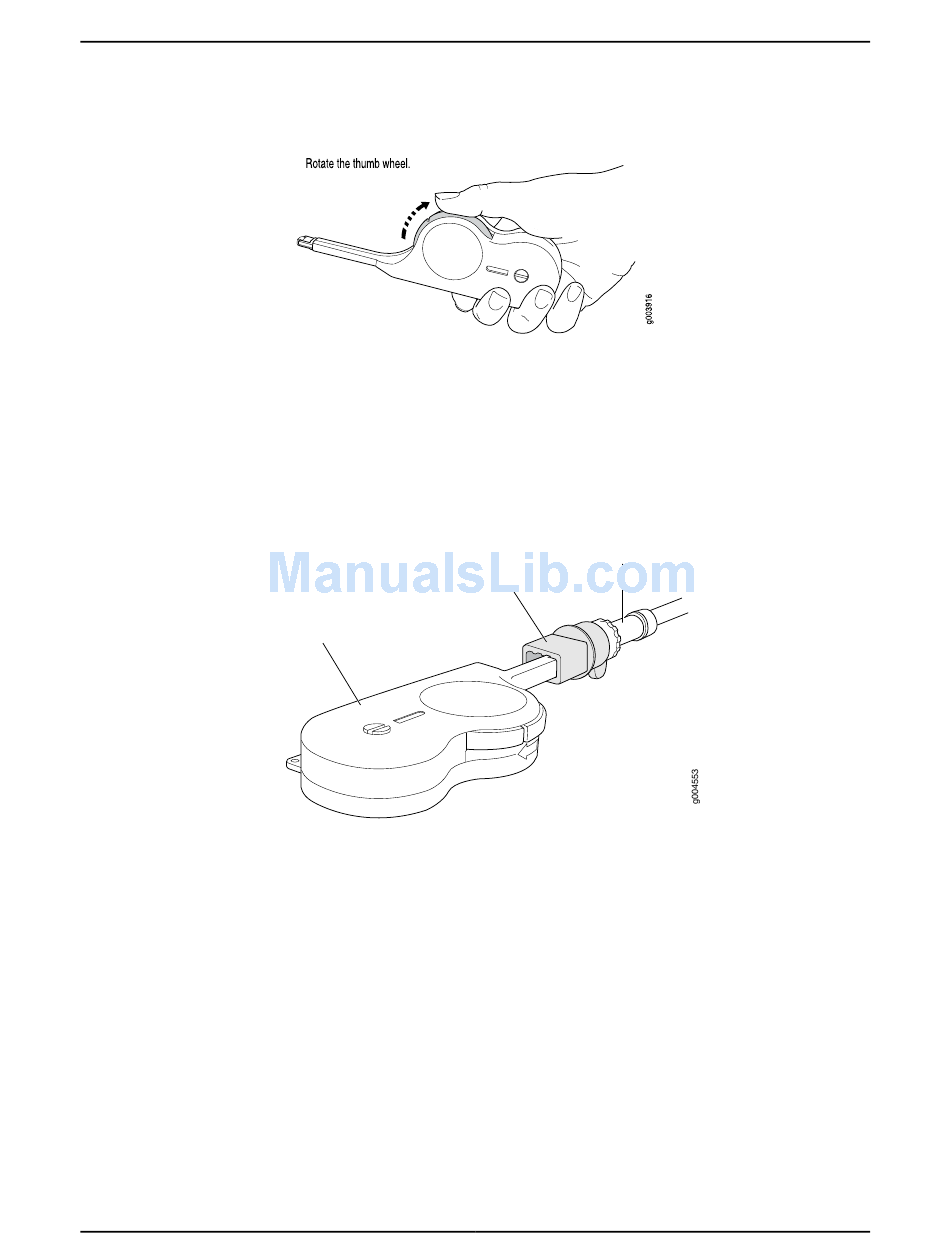

Figure 99: Rotating the Thumb Wheel

Clean the three visible ferrules in the fiber-optic array port.
10.
Repeat these steps for all fiber-optic components that require cleaning.
11.
Remove the dust cap from the fiber-optic array cable. Insert a cleaning connector into
12.
the fiber-optic array cable (see Figure 100 on page 273). Insert the tip of the cleaning
tool into the cleaning connector.
Figure 100: Inserting the Cleaning Connector into the Fiber-Optic Array
Cable and the Cleaning Tip into the Keyed Slot of the Cleaning Connector
Replace the dust cap on the cleaning tool.
13.
After you clean the fiber-optic array ports and the fiber-optic array cable connectors,
14.
reconnect the fiber-optic array cable between the TXP-F13 SIB fiber-optic array port
and TXP-T1600 SIB fiber-optic array port.
Bring the TXP-F13 SIB and TXP-1600 SIB online.
15.
Issue the
16. show chassis sibs
SIB are online.
Issue the show chassis fabric plane extensive
17.
optical link is .
Links ok
If the state of any TXP-F13 SIB, TXP-T1600 SIB, or link is still incorrect, contact your
18.
customer support representative for additional instructions.
Chapter 20: Maintaining TX Matrix Plus Hardware Components
Fiber-optic
cable
Cleaning tool
connector
command. Verify that the TXP-F13 SIB and TXP-T1600
command. Verify that the state of each
273
