Figure 138: Connecting DC Power Cables to the Positive Input Terminals
Route the DC power cables through the cable restraints.
6.
Attach the cable restraint to the input power tray.
7.
Attach the input power tray cover.
8.

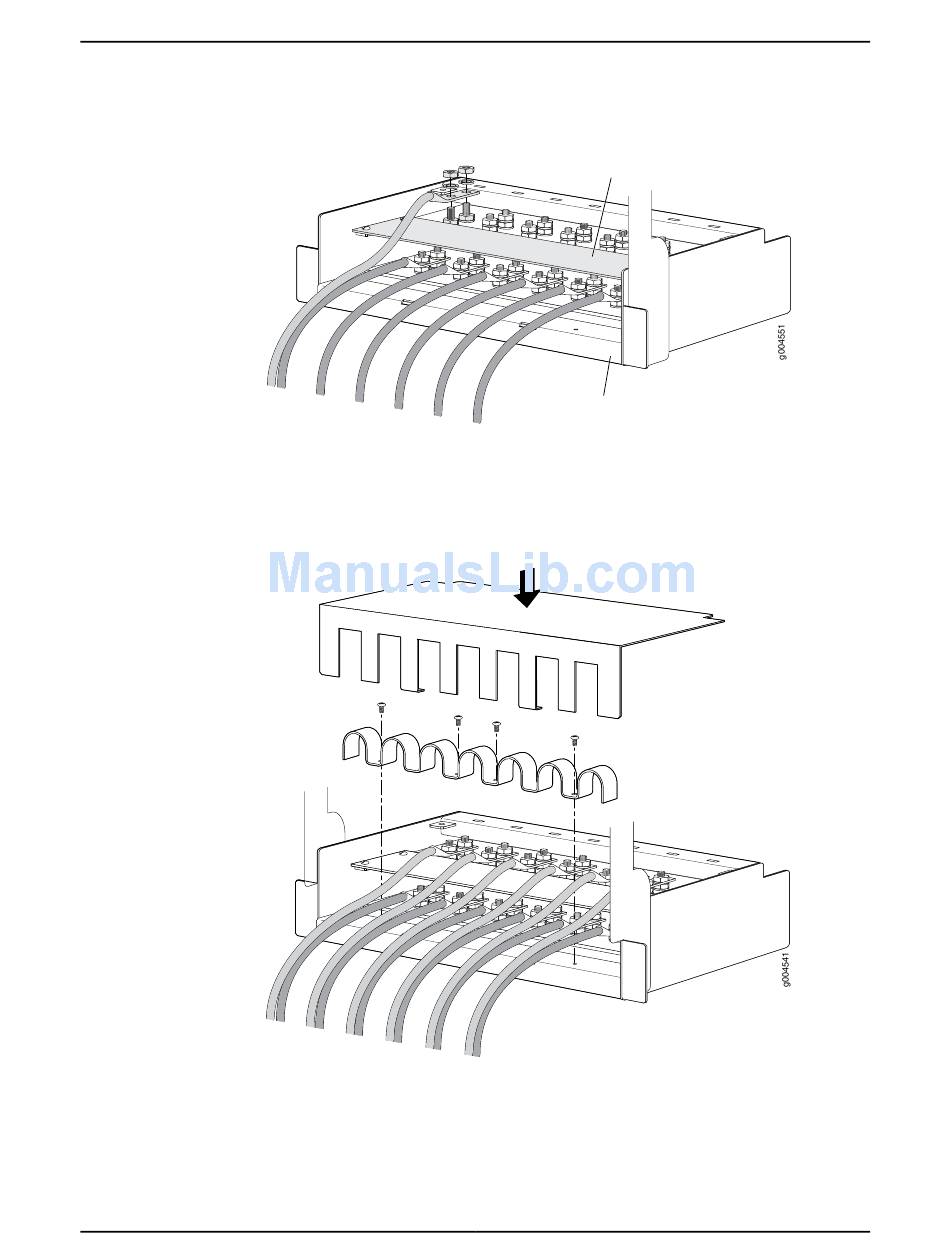

Figure 139: Attaching the Cable Restraint and Input Power Tray
Insert the input power tray into the power supply.
9.
Chapter 22: Replacing TX Matrix Plus Hardware Components
Power lug separator
Input power tray
