Installing A Tx Matrix Plus Lower Front Air Filter; Figure 116: Removing The Lower Front Air Filter - Juniper TX MATRIX PLUS Hardware Manual

TX Matrix Plus Router Hardware Guide
348

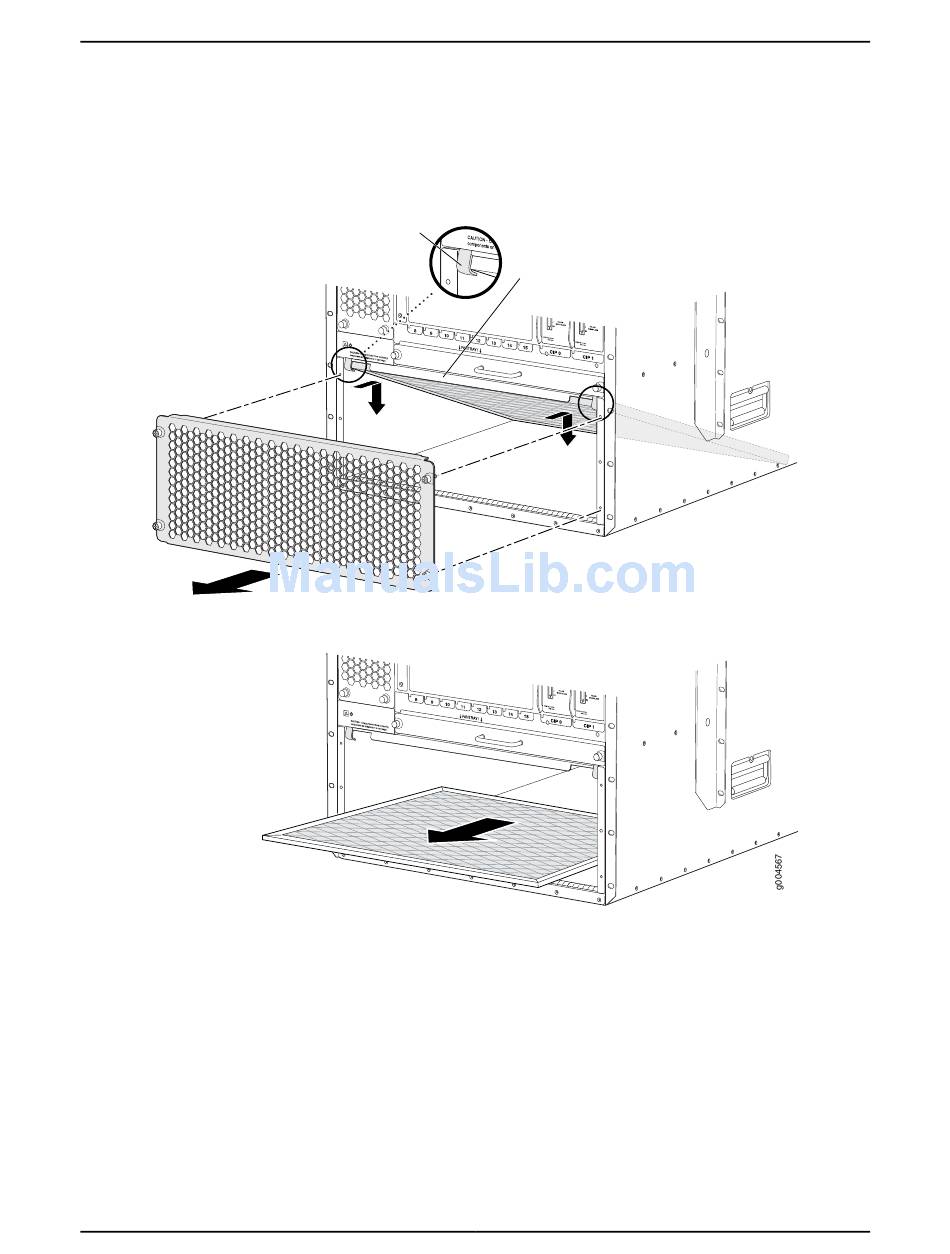

Figure 116: Removing the Lower Front Air Filter

Press back on the filter to release it from
the hooks, then slide the filter straight out.
Filter hook

Installing a TX Matrix Plus Lower Front Air Filter

To install the lower front air filter (see Figure 117 on page 349):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to one of the ESD points on the chassis.
Insert the filter element into the air filter frame.
2.
Slide the air filter straight into the chassis.
3.
Lift the front edge of the air filter and engage the filter hooks to secure it.
4.
Air filter
