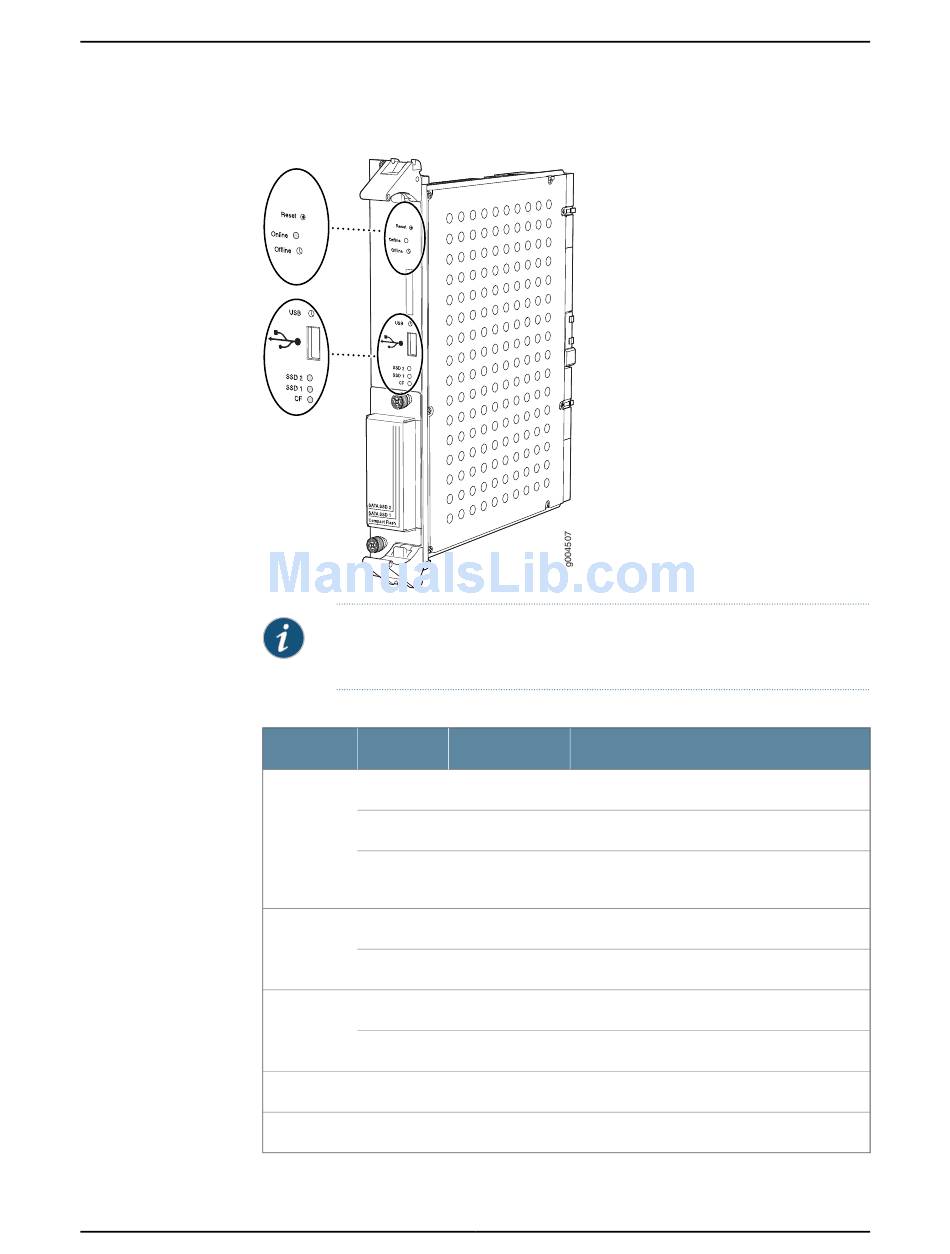

Figure 13: RE-C2600 LEDs
NOTE: The LEDs on the Routing Engine do not necessarily indicate
routing-related activity.
Table 9: RE-C2600 LEDs
Label
Color
Green
ONLINE
Red
–
Blue
SSD1
–
Blue
SSD2
–
Green
CF
–
Chapter 2: TX Matrix Plus Hardware Component Overview
State
Description
On steadily
Routing Engine is functioning normally.
On steadily
Routing Engine is not functioning normally.
Off
Routing Engine is not online or not functioning
normally.
On steadily
Indicates disk activity.
Off
There is no disk activity.
On steadily
Indicates disk activity.
Off
There is no disk activity.
On steadily
Indicates activity for the CompactFlash card.
Off
There is no activity for the CompactFlash card.
29
