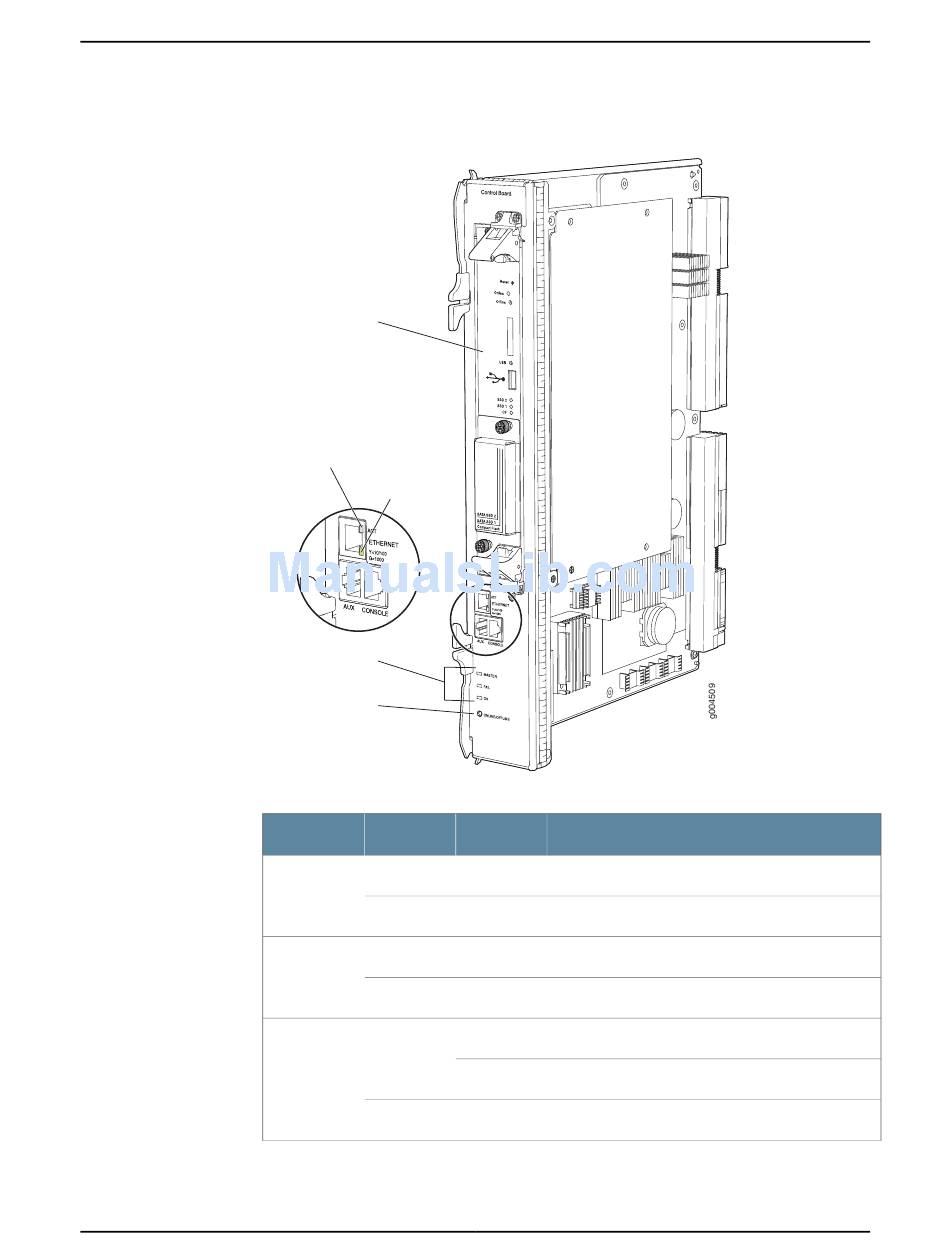

Figure 10: TXP-CB

Routing Engine
ETHERNET ETHERNET
port ACT LED port speed LED
Y = 10/100
G = 1000
Status LEDs
ONLINE/OFFLINE
button

Table 8: TXP-CB LEDs

Label Color
Blue
MASTER
–
FAIL Yellow
–
Green
OK
–
State Description
On steadily TXP-CB is functioning as the master.
Off TXP-CB is functioning as the backup.
On steadily TXP-CB has failed.
Off No faults have been detected on the TXP-CB.
On steadily TXP-CB is online and is functioning normally.
Blinking TXP-CB is powering up, but not online.
Off TXP-CB is offline.
