TX Matrix Plus Clearance Requirements for Airflow and Hardware Maintenance
30" (72.6 cm)
clearance recommended
for maintenance
Front of chassis
(mounting hole width)
108
You must install the TX Matrix Plus router in its own dedicated rack. Consider the height
and weight of the TX Matrix Plus router.
Account for the total weight of the routing matrix. One TX Matrix Plus router weighs
up to 925 lb (420 kg). Each T1600 routers weighs up to approximately 606 lb (275
kg). If you stack two fully configured T1600 routers in one rack, it must be capable of
supporting about 1212 lb (550 kg).
TX Matrix Plus Installation Safety Guidelines on page 399
Installation Safety Warnings for M Series, MX Series, and T Series Routers on page 399
Routing Matrix with a TX Matrix Plus Router Hardware Configuration Overview on
page 104
Overview of Installing a TX Matrix Plus Router with a Mechanical Lift on page 127
When planning the installation site, you must allow sufficient clearance around the rack
(see Figure 43 on page 108):
For the cooling system to function properly, the airflow around the chassis must be
unrestricted. Figure 24 on page 45 depicts the airflow in the TX Matrix Plus router.
For service personnel to remove and install hardware components, there must be
adequate space at the front and back of the rack. Allow at least 30 in. (72.6 cm) in
front of the rack and 30 in. (72.6 cm) behind the rack.

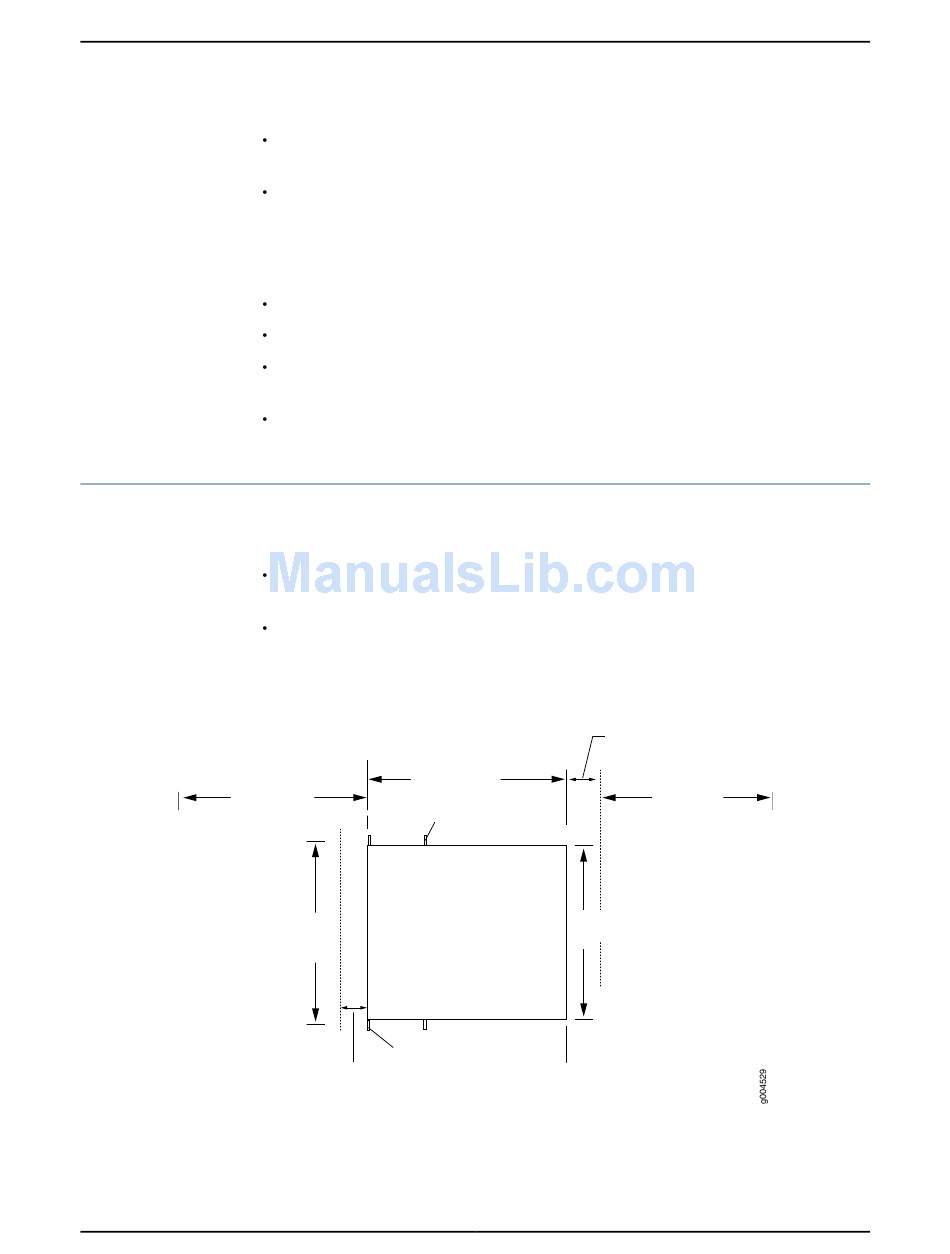

Figure 43: Chassis Dimensions and Clearance Requirements

36.2" (91.9 cm)
Center-mounting bracket
23"
(58.4 cm)
Front-mounting flange
Front
cable manager
depth 2.7" (6.9 cm)
Cable
management
depth 9"
30" (61 cm)
clearance required
for maintenance
Rear of chassis
21.4"
(54.4 cm)
