TX Matrix Plus Router Hardware Guide
368
CAUTION: Do not stack hardware components on one another after you
remove them. Place each component on an antistatic mat resting on a
stable, flat surface.
If you are not reinstalling a TXP-F13 SIB into the emptied TXP-F13 SIB slot within a
12.
short time, install a blank TXP-F13 SIB panel over the slot to maintain proper airflow
in the TXP-F13 SIB card cage.

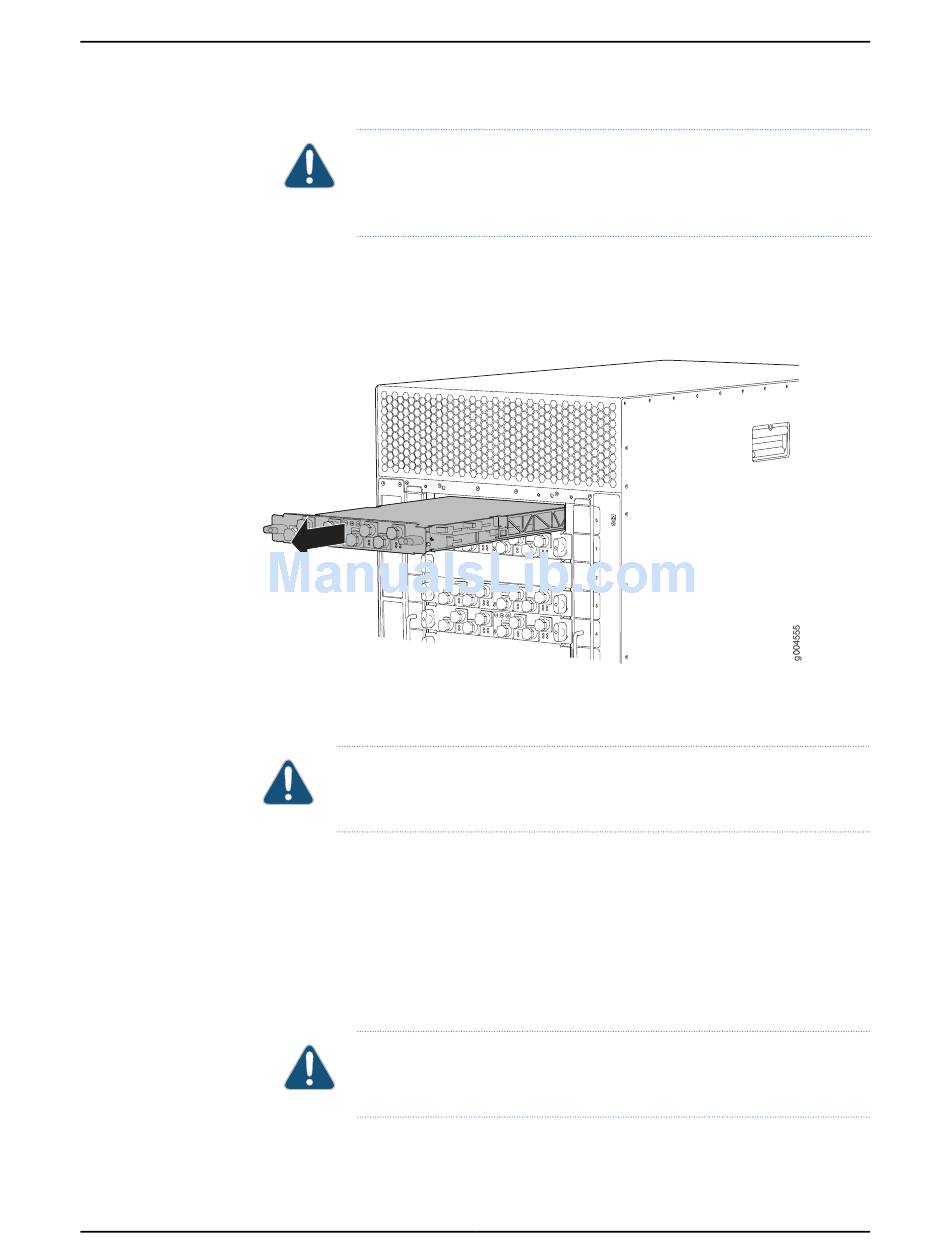

Figure 126: Removing a TXP-F13 SIB

Installing a TXP-F13 SIB

To install a TXP-F13 SIB into the rear of the chassis (see Figure 127 on page 370):
CAUTION: Be prepared to support the weight of the TXP-F13 SIB
(approximately 17.0 lb (7.7 kg)) before you lift it.
Have ready a replacement TXP-F13 SIB or TXP-F13 SIB blank panel.
1.
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
2.
the strap to one of the ESD points on the chassis.
Locate the slot in the TXP-F13 SIB card cage in which you plan to install the TXP-F13
3.
SIB.
Place one hand under the bottom edge of the TXP-F13 SIB and one hand around the
4.
top of the TXP-F13 SIB faceplate.
CAUTION: When the TXP-F13 SIB is out of the chassis, do not hold it by
its ejector handles or edge connectors. They cannot support its weight.
Lift the TXP-F13 SIB into place and carefully align the left and right edges with the
5.
guides inside the card cage.
