Jetdirect Menus for Graphical Control Panels

Newer printer/MFP devices support graphical control panels, which may consist of a numeric keypad,
navigation buttons and touch-screen displays.
For Jetdirect menus, graphical control panels typically display 18 characters on a line, and as many as
four lines at a time. In addition, scrolling may be supported to allow display of additional lines.
NOTE:
contain a EIO slot in which a Jetdirect EIO print is installed. The menu items displayed depend
on the features supported by the print server.

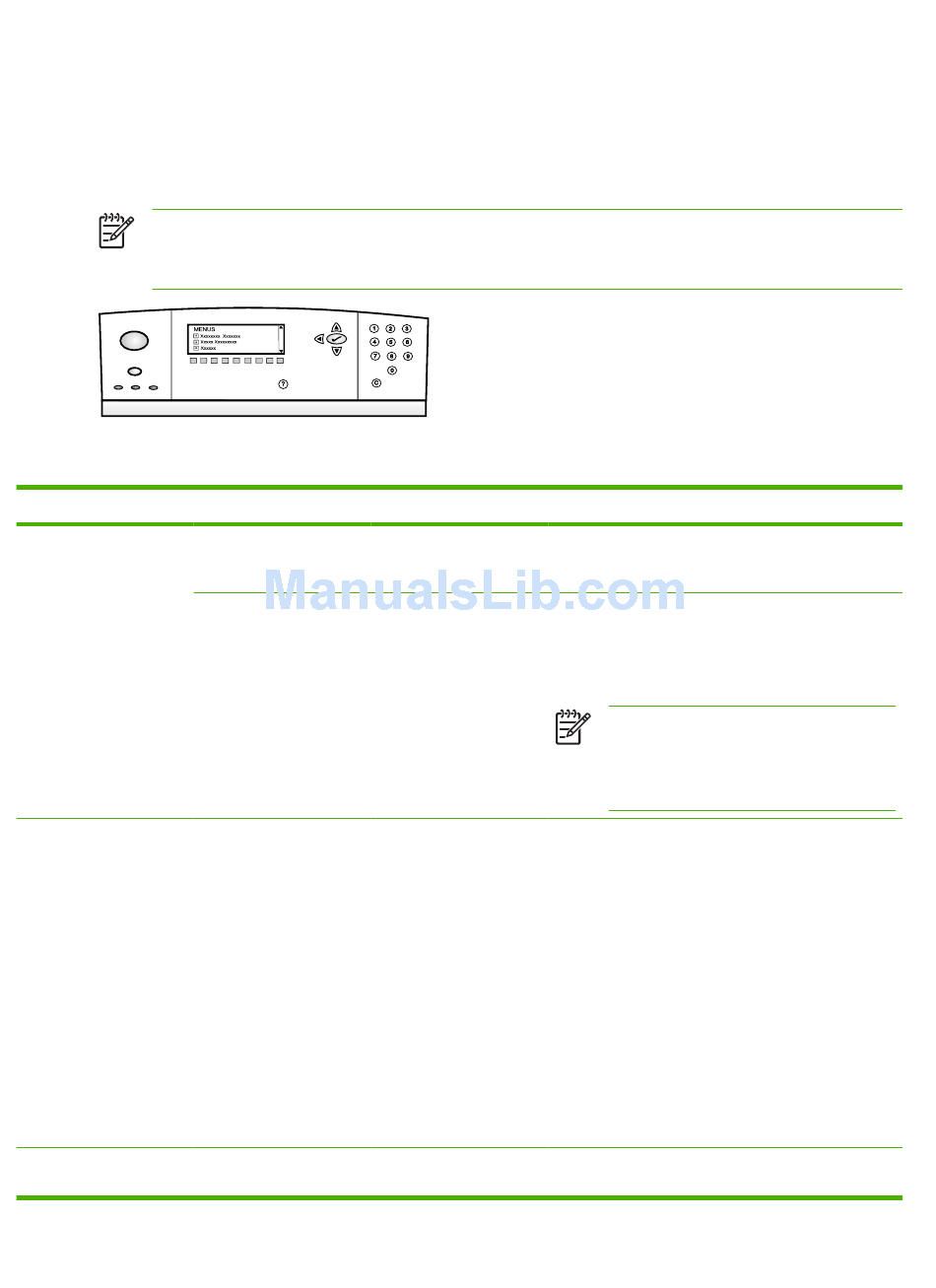

Figure C-1
Table C-1 Jetdirect EIO Menu on Graphical Control Panel
Menu item
TCP/IP
170 Appendix C HP Jetdirect Control Panel Menus (V.36.xx)
These menus apply to printers/MFPs with a Jetdirect embedded print server, or that
Example of Graphical Control Panel
Sub-menu item
Enable
Host Name
IPv4 Settings
Sub-menu item
Config Method
DHCP Release
Values and Description
Off: Disable the TCP/IP protocol.
On (default): Enable the TCP/IP protocol.
An alphanumeric string, up to 32 characters, used to
identify the device. This name is listed on the
HP Jetdirect configuration page. The default host name
is NPIxxxxxx, where xxxxxx is the last six digits of the
LAN hardware (MAC) address.
NOTE: Names, such as host names, must
begin with a letter and can contain only letters,
numbers, periods (for domain names only), or
hyphens. The underline character (_) is not
allowed.
Specifies the method that TCP/IPv4 parameters will be
configured on the HP Jetdirect print server.
BootP: Use BootP (Bootstrap Protocol) for automatic
configuration from a BootP server.
DHCP (default): Use DHCP (Dynamic Host
Configuration Protocol) for automatic configuration
from a DHCPv4 server. If selected and a DHCP lease
exists, DHCP Release and DHCP Renew
available to set DHCP lease options.
Auto IP: Use automatic link-local IPv4 addressing. An
address in the form 169.254.x.x is assigned
automatically.
Manual: Use the Manual Settings
TCP/IPv4 parameters.
This menu appears if Config Method
DHCP and a DHCP lease for the print server exists.
menus are
menu to configure
was set to
