HEIDENHAIN ITNC 530 - CONVERSATIONAL PROGRAMMING User Manual page 91

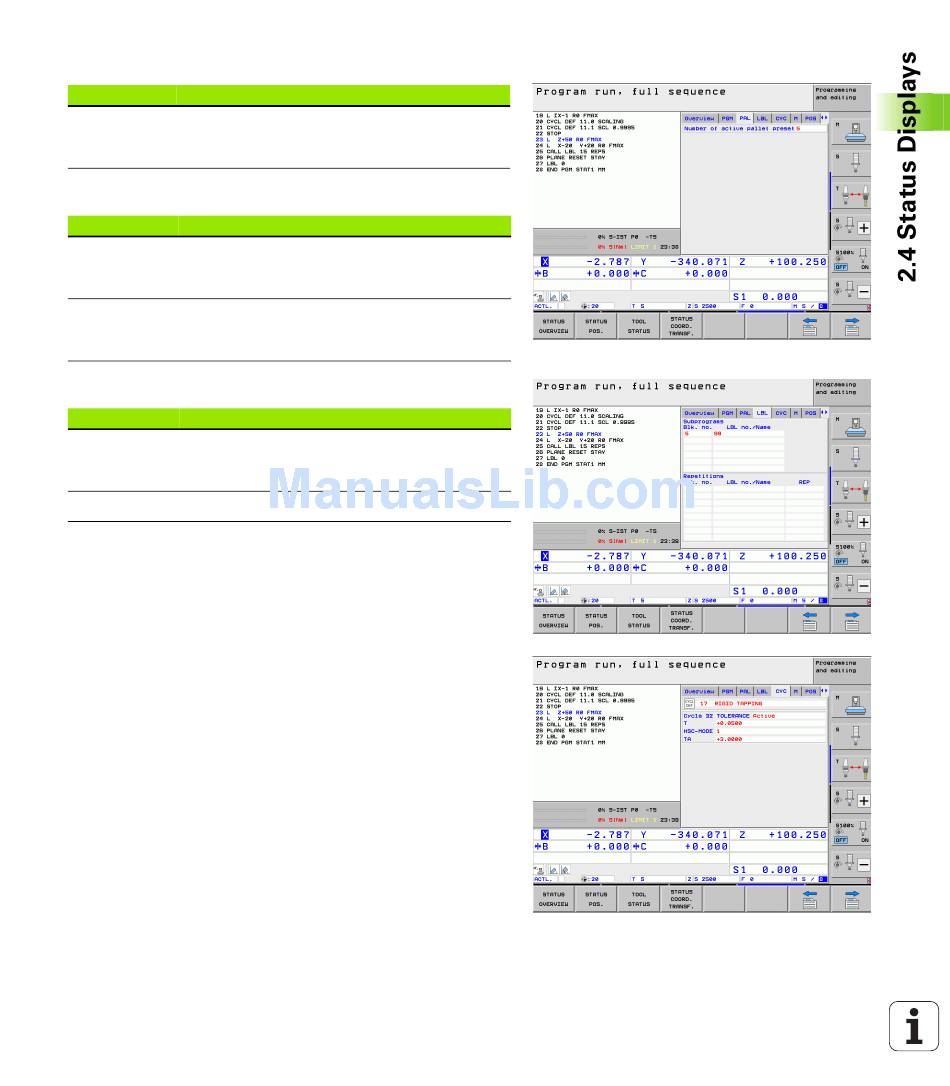

General pallet information (PAL tab)
Soft key Meaning
No direct Number of the active pallet preset
selection
possible
Program section repeat/Subprograms (LBL tab)
Soft key Meaning
No direct Active program section repeats with block
selection number, label number, and number of
possible programmed repeats/repeats yet to be run
Active subprogram numbers with block number in
which the subprogram was called and the label
number that was called
Information on standard cycles (CYC tab)
Soft key Meaning
No direct Active machining cycle
selection
possible
Active values of Cycle 32 Tolerance
HEIDENHAIN iTNC 530 91
