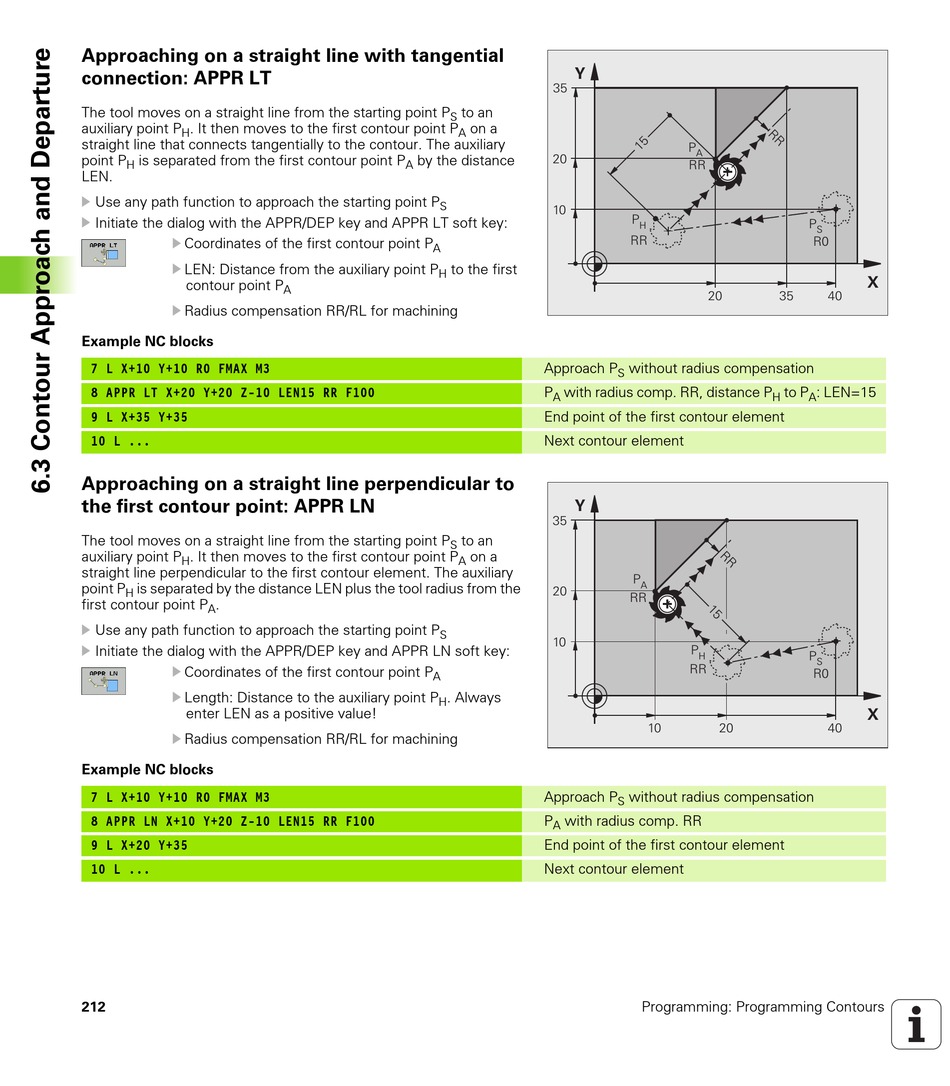

Approaching on a straight line with tangential
connection: APPR LT
The tool moves on a straight line from the starting point P
auxiliary point P . It then moves to the first contour point P
H
straight line that connects tangentially to the contour. The auxiliary
point P is separated from the first contour point P
H
LEN.
U Use any path function to approach the starting point P
U Initiate the dialog with the APPR/DEP key and APPR LT soft key:
U
Coordinates of the first contour point P
U LEN: Distance from the auxiliary point P
contour point P
U Radius compensation RR/RL for machining
Example NC blocks
7 L X+10 Y+10 R0 FMAX M3
8 APPR LT X+20 Y+20 Z-10 LEN15 RR F100
9 L X+35 Y+35
10 L ...
Approaching on a straight line perpendicular to
the first contour point: APPR LN
The tool moves on a straight line from the starting point P
auxiliary point P . It then moves to the first contour point P
H
straight line perpendicular to the first contour element. The auxiliary
point P is separated by the distance LEN plus the tool radius from the
H
first contour point P .
A
U Use any path function to approach the starting point P
U Initiate the dialog with the APPR/DEP key and APPR LN soft key:
U Coordinates of the first contour point P
U Length: Distance to the auxiliary point P
enter LEN as a positive value!
U Radius compensation RR/RL for machining
Example NC blocks
7 L X+10 Y+10 R0 FMAX M3
8 APPR LN X+10 Y+20 Z-10 LEN15 RR F100
9 L X+20 Y+35
10 L ...
212
to an
S
A
by the distance
A
S
A
to the first
H
A
to an
S
A
S
A
. Always
H
on a
Approach P without radius compensation
S
P with radius comp. RR, distance P
A
End point of the first contour element
Next contour element
on a
Approach P without radius compensation
S
P with radius comp. RR
A
End point of the first contour element
Next contour element
Programming: Programming Contours
to P : LEN=15
H A
