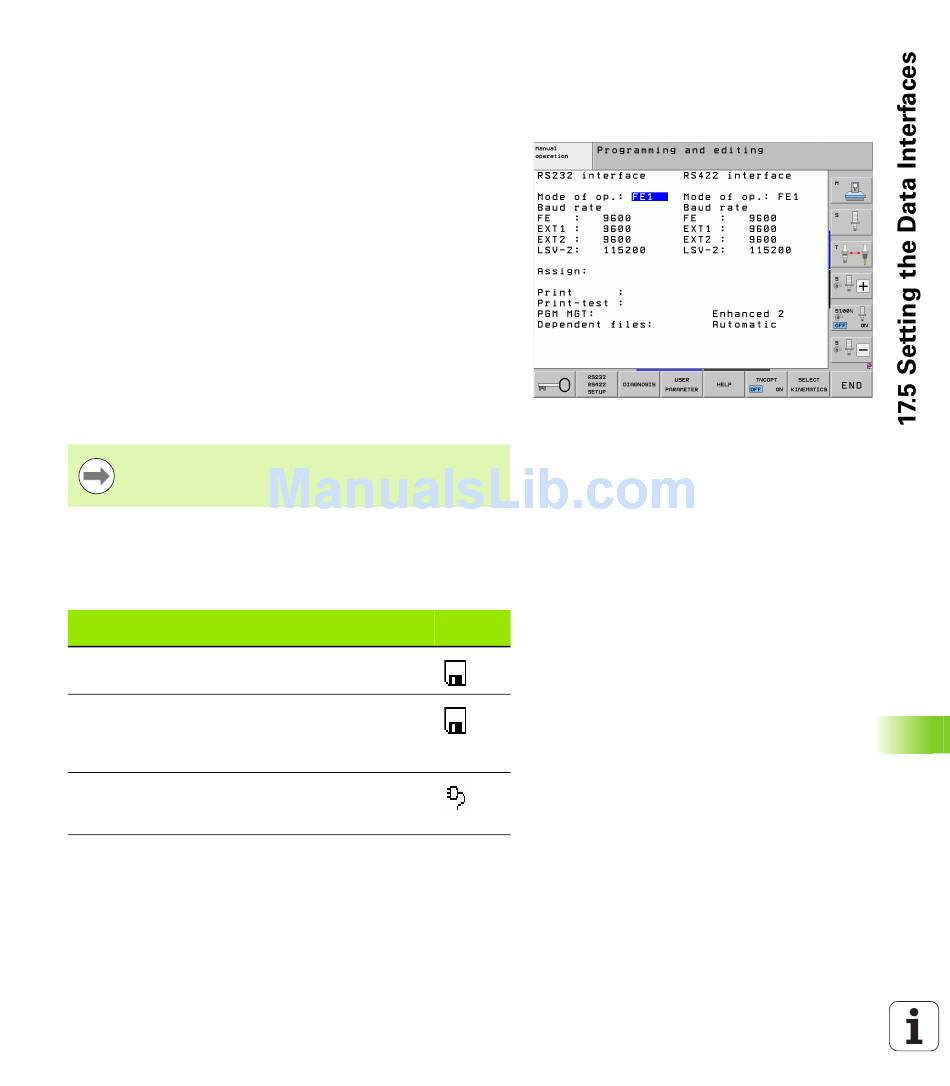

17.5 Setting the Data Interfaces

Application
To set up the data interfaces, press the RS-232 / RS-422 SETUP soft
key to call a menu for setting the data interfaces:

Setting the RS-232 interface

The mode of operation and baud rates for the RS-232 interface are
entered in the upper left of the screen.

Setting the RS-422 interface

The mode of operation and baud rates for the RS-422 interface are
entered in the upper right of the screen.
Setting the OPERATING MODE of the external
device
The functions "Transfer all files," "Transfer selected file,"
and "Transfer directory" are not available in the operating
mode EXT.

Setting the baud rate

You can set the BAUD RATE (data transfer speed) from 110 to 115 200
baud.
External device
PC with HEIDENHAIN data transfer
software TNCremoNT
HEIDENHAIN floppy disk units
FE 401 B
FE 401 from program no.
230 626-03
Non-HEIDENHAIN devices such as
printers, scanners, punchers, PC
without TNCremoNT
HEIDENHAIN iTNC 530
Operating
Symbol
mode
FE1
FE1
FE1
EXT1, EXT2
623
