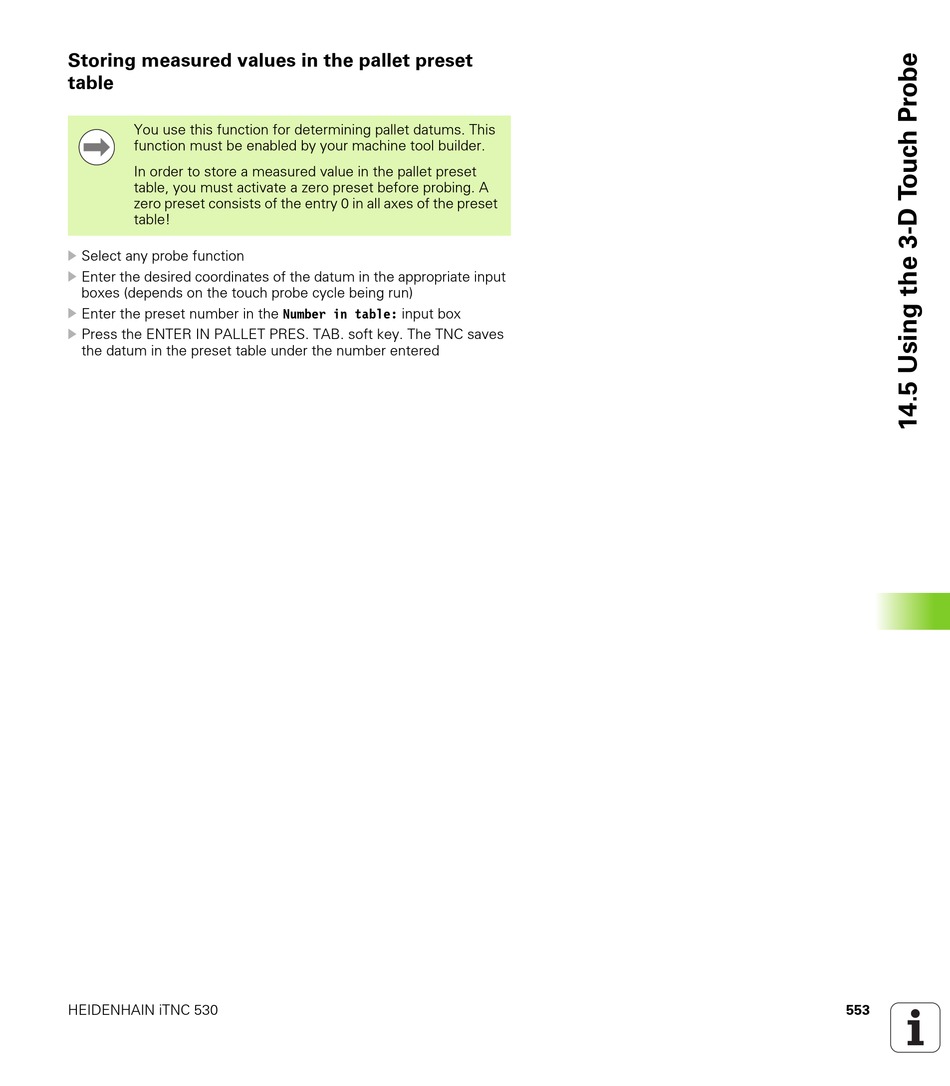

Storing measured values in the pallet preset
table
You use this function for determining pallet datums. This
function must be enabled by your machine tool builder.
In order to store a measured value in the pallet preset
table, you must activate a zero preset before probing. A
zero preset consists of the entry 0 in all axes of the preset
table!
U
Select any probe function
U Enter the desired coordinates of the datum in the appropriate input
boxes (depends on the touch probe cycle being run)
U Enter the preset number in the Number in table: input box
U Press the ENTER IN PALLET PRES. TAB. soft key. The TNC saves
the datum in the preset table under the number entered
HEIDENHAIN iTNC 530 553
