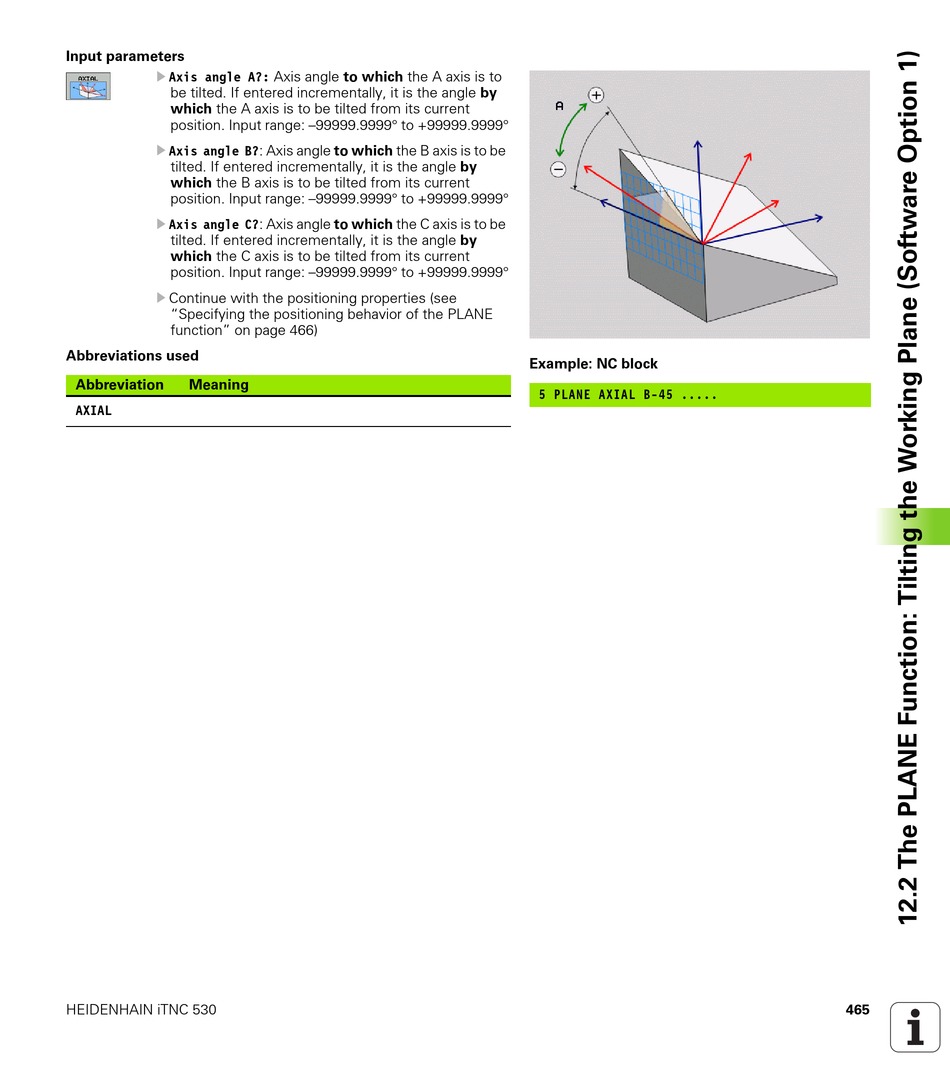

HEIDENHAIN ITNC 530 - CONVERSATIONAL PROGRAMMING User Manual page 465

Input parameters
U Axis angle A?: Axis angle to which the A axis is to
be tilted. If entered incrementally, it is the angle by
which the A axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
U
Axis angle B?: Axis angle to which the B axis is to be
tilted. If entered incrementally, it is the angle by
which the B axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
U Axis angle C?: Axis angle to which the C axis is to be
tilted. If entered incrementally, it is the angle by
which the C axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
U
Continue with the positioning properties (see
"Specifying the positioning behavior of the PLANE
function" on page 466)
Abbreviations used
Abbreviation Meaning
AXIAL
HEIDENHAIN iTNC 530
Example: NC block
5 PLANE AXIAL B-45 .....
