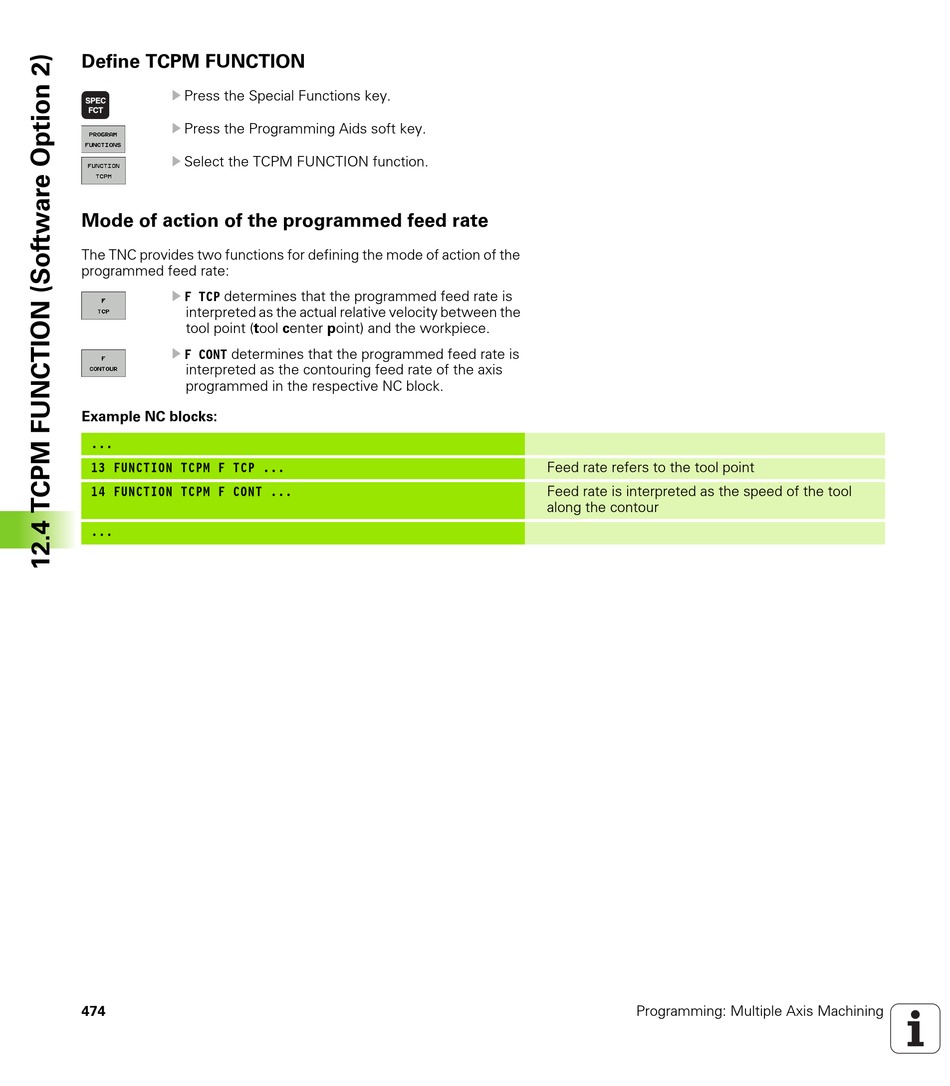

Define TCPM FUNCTION

U Press the Special Functions key.
U Press the Programming Aids soft key.
U Select the TCPM FUNCTION function.

Mode of action of the programmed feed rate

The TNC provides two functions for defining the mode of action of the
programmed feed rate:
U F TCP determines that the programmed feed rate is
interpreted as the actual relative velocity between the
tool point (tool center point) and the workpiece.
U F CONT determines that the programmed feed rate is
interpreted as the contouring feed rate of the axis
programmed in the respective NC block.
Example NC blocks:
...
13 FUNCTION TCPM F TCP ...
14 FUNCTION TCPM F CONT ...
...
474
Feed rate refers to the tool point
Feed rate is interpreted as the speed of the tool
along the contour
Programming: Multiple Axis Machining
