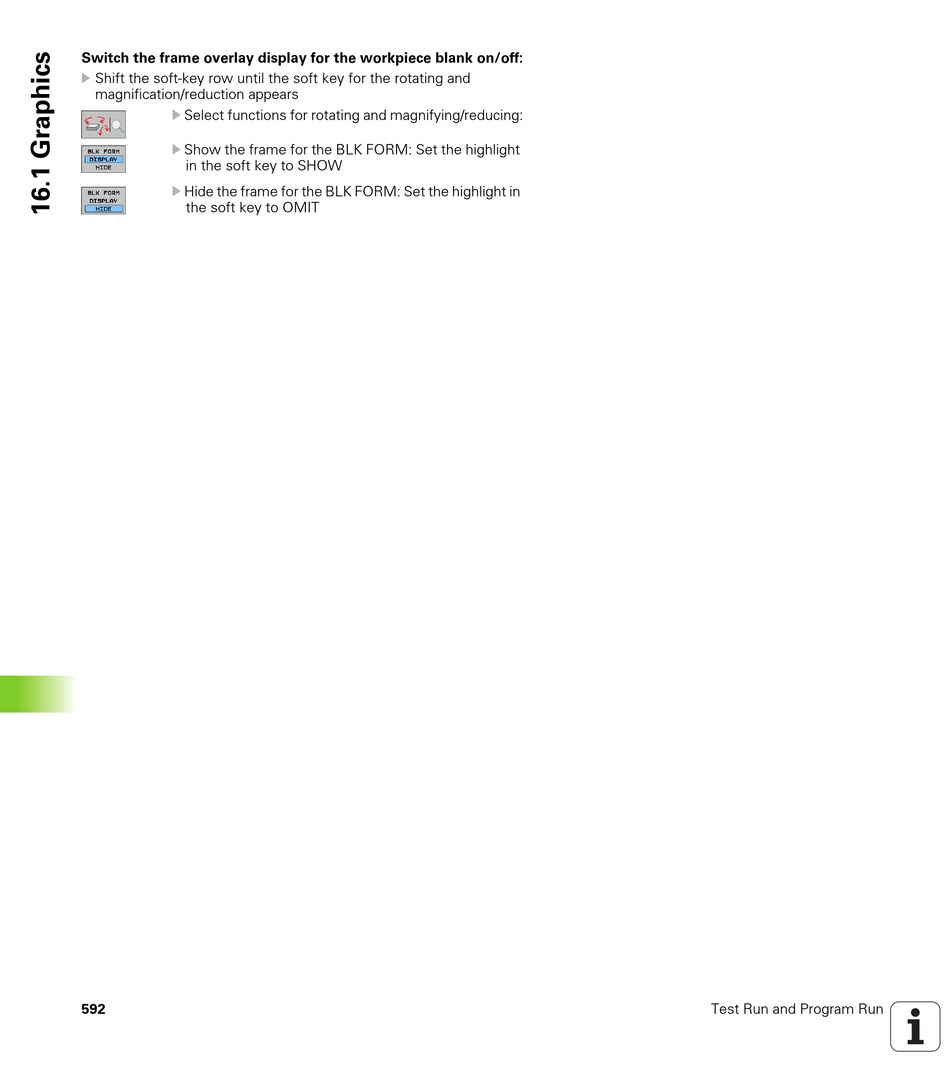

Switch the frame overlay display for the workpiece blank on/off:
U
Shift the soft-key row until the soft key for the rotating and
magnification/reduction appears
U
Select functions for rotating and magnifying/reducing:
U
Show the frame for the BLK FORM: Set the highlight
in the soft key to SHOW
U
Hide the frame for the BLK FORM: Set the highlight in
the soft key to OMIT
592
Test Run and Program Run
