HEIDENHAIN ITNC 530 - CONVERSATIONAL PROGRAMMING User Manual page 153

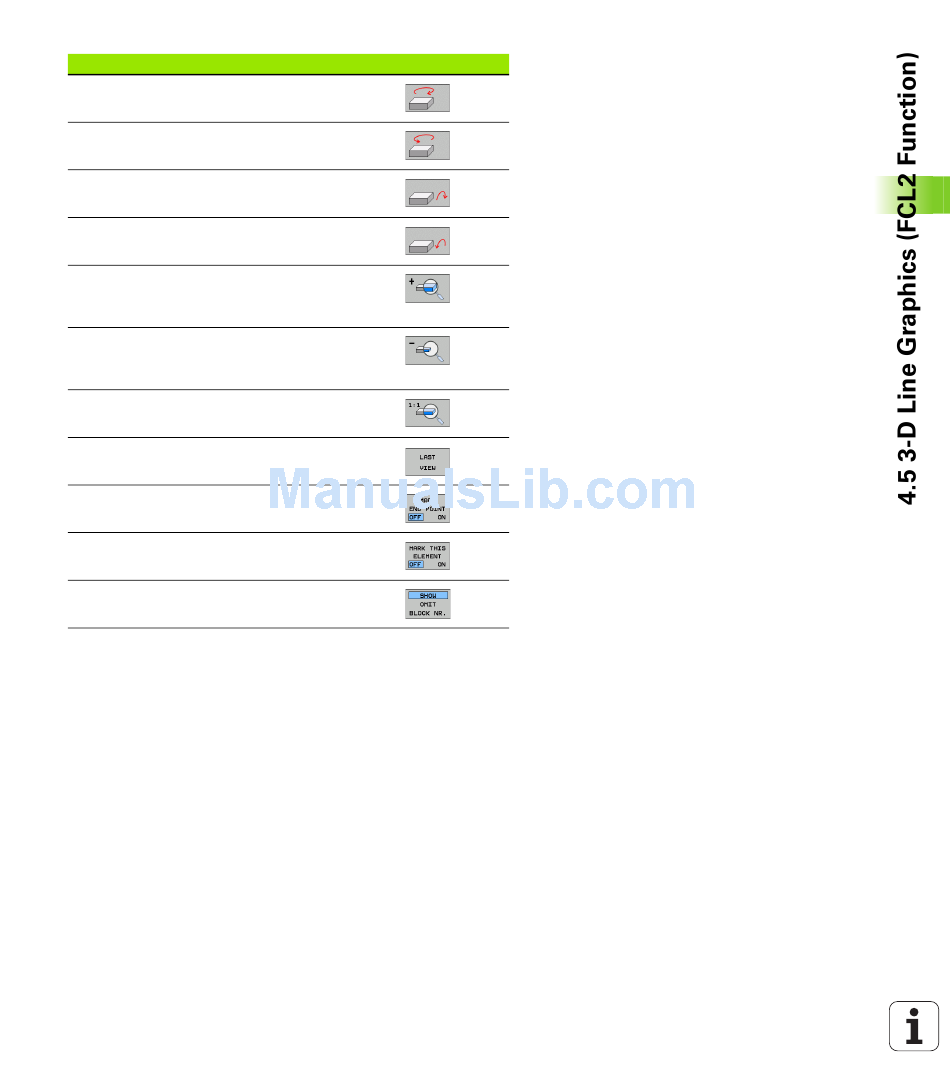

Function Soft key
Rotate workpiece clockwise
Rotate workpiece counterclockwise
Tilt workpiece backward
Tilt workpiece forward
Magnify the graphic stepwise. If the view is
magnified, the TNC shows the letter Z in the
footer of the graphic window.
Reduce the graphic stepwise. If the view is
reduced, the TNC shows the letter Z in the footer
of the graphic window.
Show workpiece at original size
Show workpiece in the last active view
Show/hide programmed end points with a dot on
the line
Do or do not highlight the selected NC block of
the 3-D line graphics in the left window
Do or do not show block numbers
HEIDENHAIN iTNC 530 153
