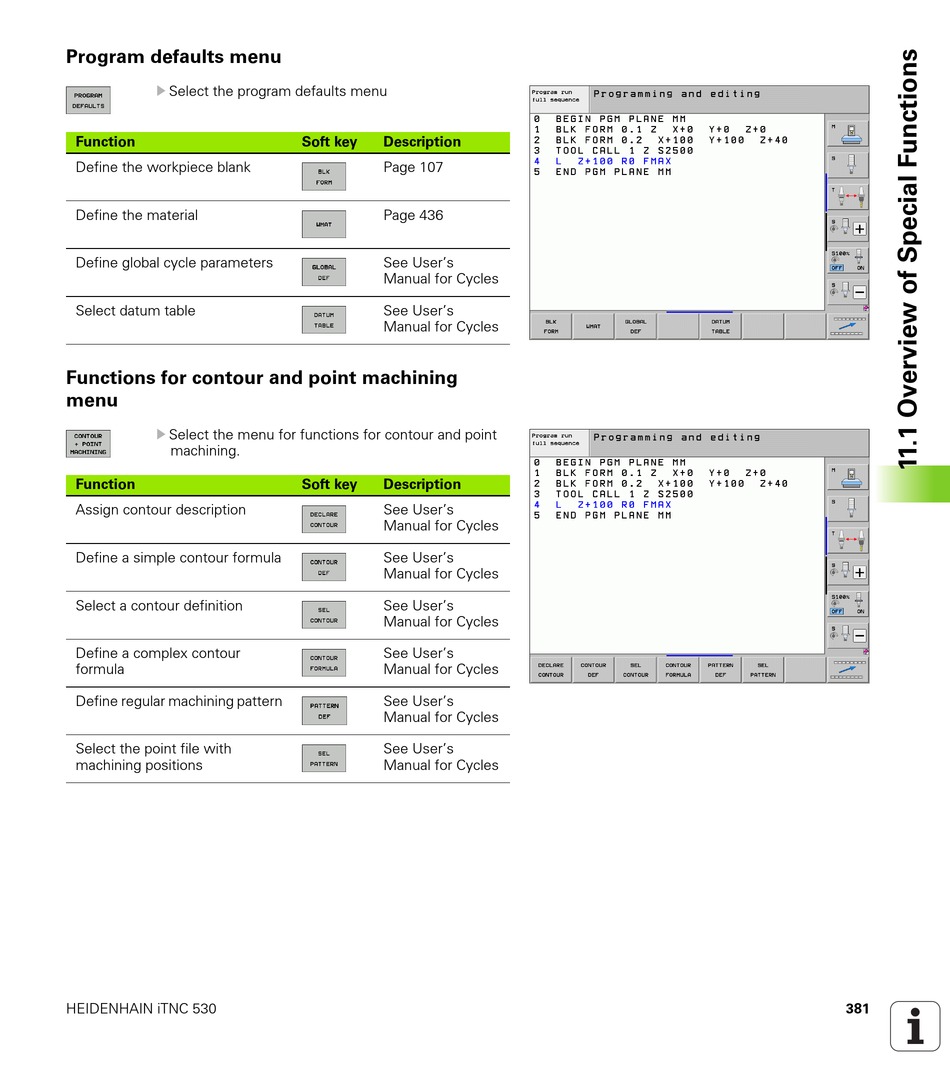

Program defaults menu
U
Select the program defaults menu
Function
Define the workpiece blank
Define the material
Define global cycle parameters
Select datum table
Functions for contour and point machining
menu
U
Select the menu for functions for contour and point
machining.
Function
Assign contour description
Define a simple contour formula
Select a contour definition
Define a complex contour
formula
Define regular machining pattern
Select the point file with
machining positions
HEIDENHAIN iTNC 530
Soft key
Description
Page 107
Page 436
See User's
Manual for Cycles
See User's
Manual for Cycles
Soft key
Description
See User's
Manual for Cycles
See User's
Manual for Cycles
See User's
Manual for Cycles
See User's
Manual for Cycles
See User's
Manual for Cycles
See User's
Manual for Cycles
381
