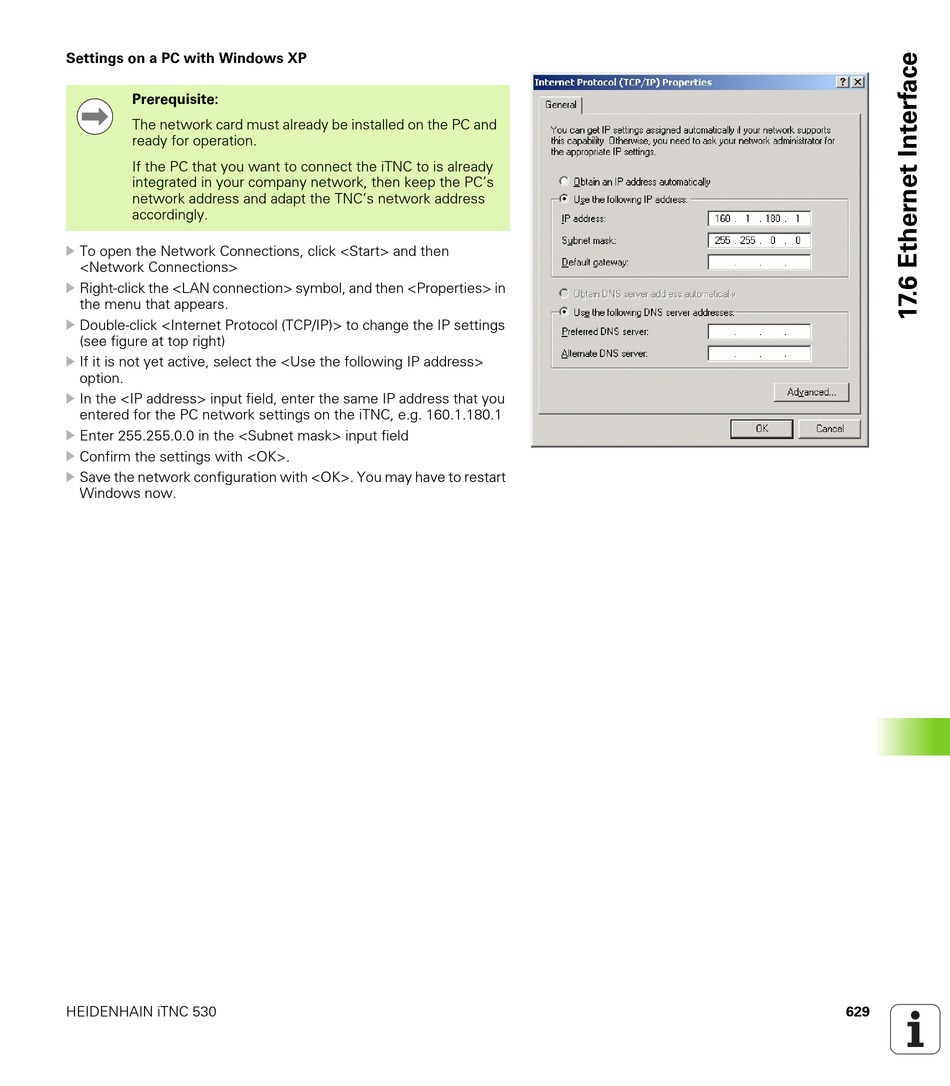

HEIDENHAIN ITNC 530 - CONVERSATIONAL PROGRAMMING User Manual page 629

Settings on a PC with Windows XP
Prerequisite:
The network card must already be installed on the PC and
ready for operation.
If the PC that you want to connect the iTNC to is already
integrated in your company network, then keep the PC's
network address and adapt the TNC's network address
accordingly.
U To open the Network Connections, click <Start> and then
<Network Connections>
U Right-click the <LAN connection> symbol, and then <Properties> in
the menu that appears.
U
Double-click <Internet Protocol (TCP/IP)> to change the IP settings
(see figure at top right)
U If it is not yet active, select the <Use the following IP address>
option.
U In the <IP address> input field, enter the same IP address that you
entered for the PC network settings on the iTNC, e.g. 160.1.180.1
U Enter 255.255.0.0 in the <Subnet mask> input field
U
Confirm the settings with <OK>.
U Save the network configuration with <OK>. You may have to restart
Windows now.
