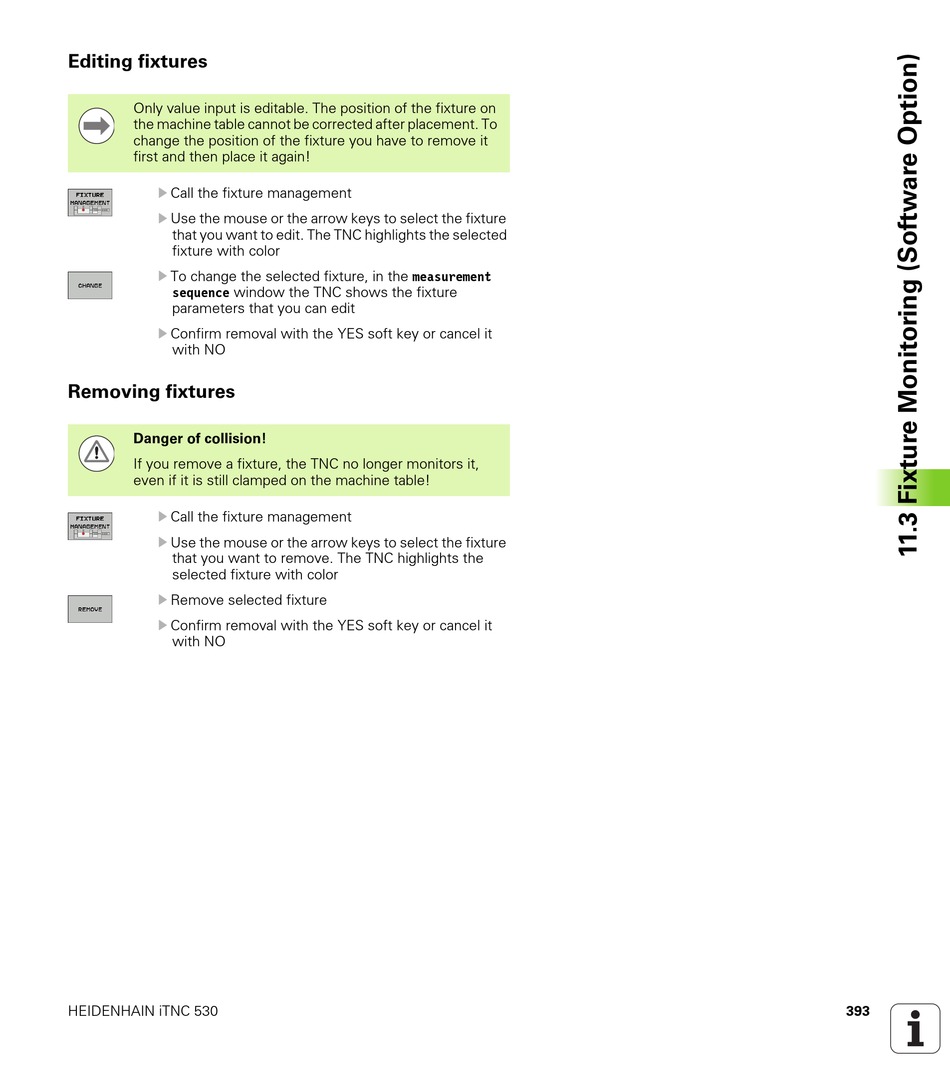

Editing fixtures

Only value input is editable. The position of the fixture on
the machine table cannot be corrected after placement. To
change the position of the fixture you have to remove it
first and then place it again!
U Call the fixture management
U Use the mouse or the arrow keys to select the fixture
that you want to edit. The TNC highlights the selected
fixture with color
U To change the selected fixture, in the measurement
sequence window the TNC shows the fixture
parameters that you can edit
U Confirm removal with the YES soft key or cancel it
with NO

Removing fixtures

Danger of collision!
If you remove a fixture, the TNC no longer monitors it,
even if it is still clamped on the machine table!
U Call the fixture management
U Use the mouse or the arrow keys to select the fixture
that you want to remove. The TNC highlights the
selected fixture with color
U Remove selected fixture
U Confirm removal with the YES soft key or cancel it
with NO
HEIDENHAIN iTNC 530 393
