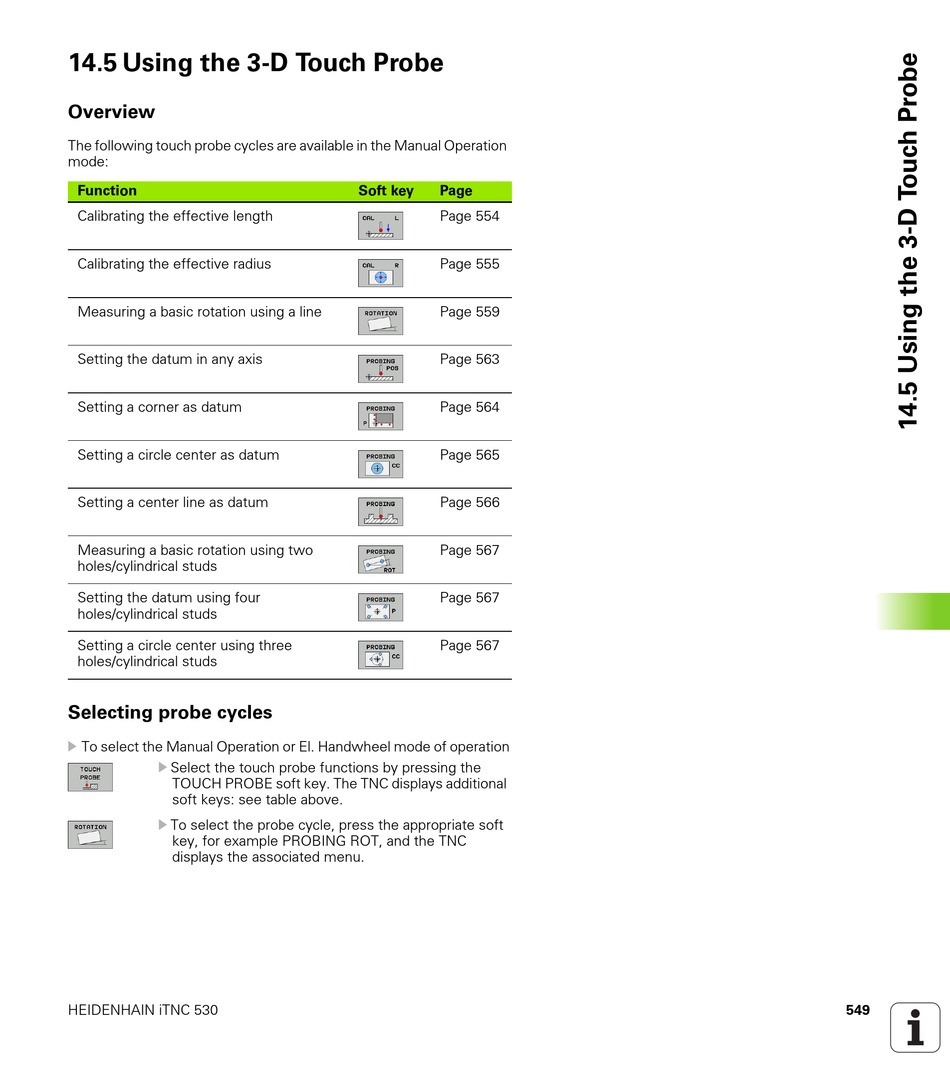

14.5 Using the 3-D Touch Probe

Overview
The following touch probe cycles are available in the Manual Operation
mode:
Function
Calibrating the effective length
Calibrating the effective radius
Measuring a basic rotation using a line
Setting the datum in any axis
Setting a corner as datum
Setting a circle center as datum
Setting a center line as datum
Measuring a basic rotation using two
holes/cylindrical studs
Setting the datum using four
holes/cylindrical studs
Setting a circle center using three
holes/cylindrical studs

Selecting probe cycles

U To select the Manual Operation or El. Handwheel mode of operation
U
Select the touch probe functions by pressing the
TOUCH PROBE soft key. The TNC displays additional
soft keys: see table above.
U To select the probe cycle, press the appropriate soft
key, for example PROBING ROT, and the TNC
displays the associated menu.
HEIDENHAIN iTNC 530
Soft key Page
Page 554
Page 555
Page 559
Page 563
Page 564
Page 565
Page 566
Page 567
Page 567
Page 567
549
