Analog
Analog
Output and
AG
AI0
AG
Analog
AI1
AG
Input
AO0
AG
AO1
Power
PWR
GND
24V
0V

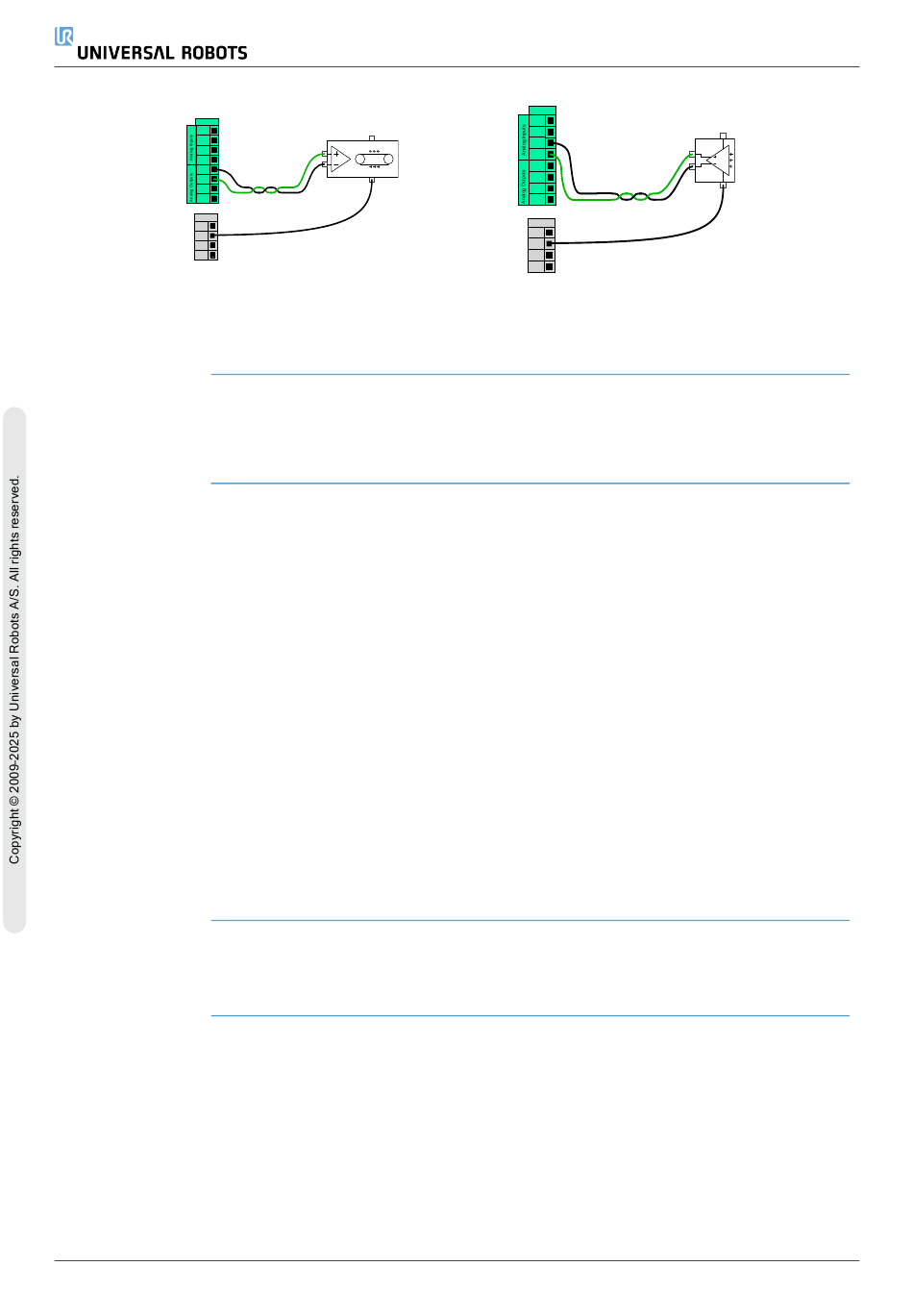

This example illustrates controlling a
conveyor belt with an analog speed control
input.
8.8.1. Digital Output
Description The tool communication interface allows two digital outputs to be independently
configured. In PolyScope, each pin has a drop-down menu that allows the output mode to
be set. The following options are available:
After selecting a new output configuration, the changes take effect. The currently loaded
installation is modified to reflect the new configuration. After verifying the tool outputs are
working as intended, make sure to save the installation to prevent losing changes.
Dual Pin Dual Pin Power is used as a source of power for the tool. Enabling Dual Pin Power disables
Power default tool digital outputs.
UR10e PolyScope X
•
Sinking: This allows the pin to be configured in an NPN or Sinking configuration.
When the output is off, the pin allows a current to flow to the ground. This can be
used in conjunction with the PWR pin to create a full circuit.
•
Sourcing: This allows the pin to be configured in a PNP or Sourcing configuration.
When the output is on, the pin provides a positive voltage source (configurable in
the IO Tab). This can be used in conjunction with the GND pin to create a full
circuit.
•
Push / Pull: This allows the pin to be configured in a Push / Pull configuration.
When the output is on, the pin provides a positive voltage source (configurable in
IO Tab). This can be used in conjunction with the GND pin to create a full circuit
When the output is off, the pin allows a current to flow to the ground.
Analog
AG
AI0
AG
AI1
AG
AO0
AG
AO1
Power
PWR
GND
24V
0V
This example illustrates connecting an
analog sensor.
