Replacing the Front Panel — Desktop
If a 5 1/4-inch device has been removed from your system, you need to replace
the blank panel before replacing the front panel. The blank panel covers the
opening previously used by the device.
Replace the desktop front panel as follows.
1. If necessary replace the metallic shield by pressing it into place over the bay.
2. If necessary, replace the blank plastic panel to cover the bay opening in the
front panel. From the inside, fit the blank panel into bay opening, and press
it until the tabs lock in place.
3. Align the eight front panel locking tabs with the slots in the front of the
system unit (see the following figure). Align the front USB port with the
cutout on the front panel.
4. Press along the edges of the front panel until it snaps into place.
5. Replace the system unit cover (see "Replacing the Small Desktop or
Desktop Cover").
3-18 Disassembly and Reassembly

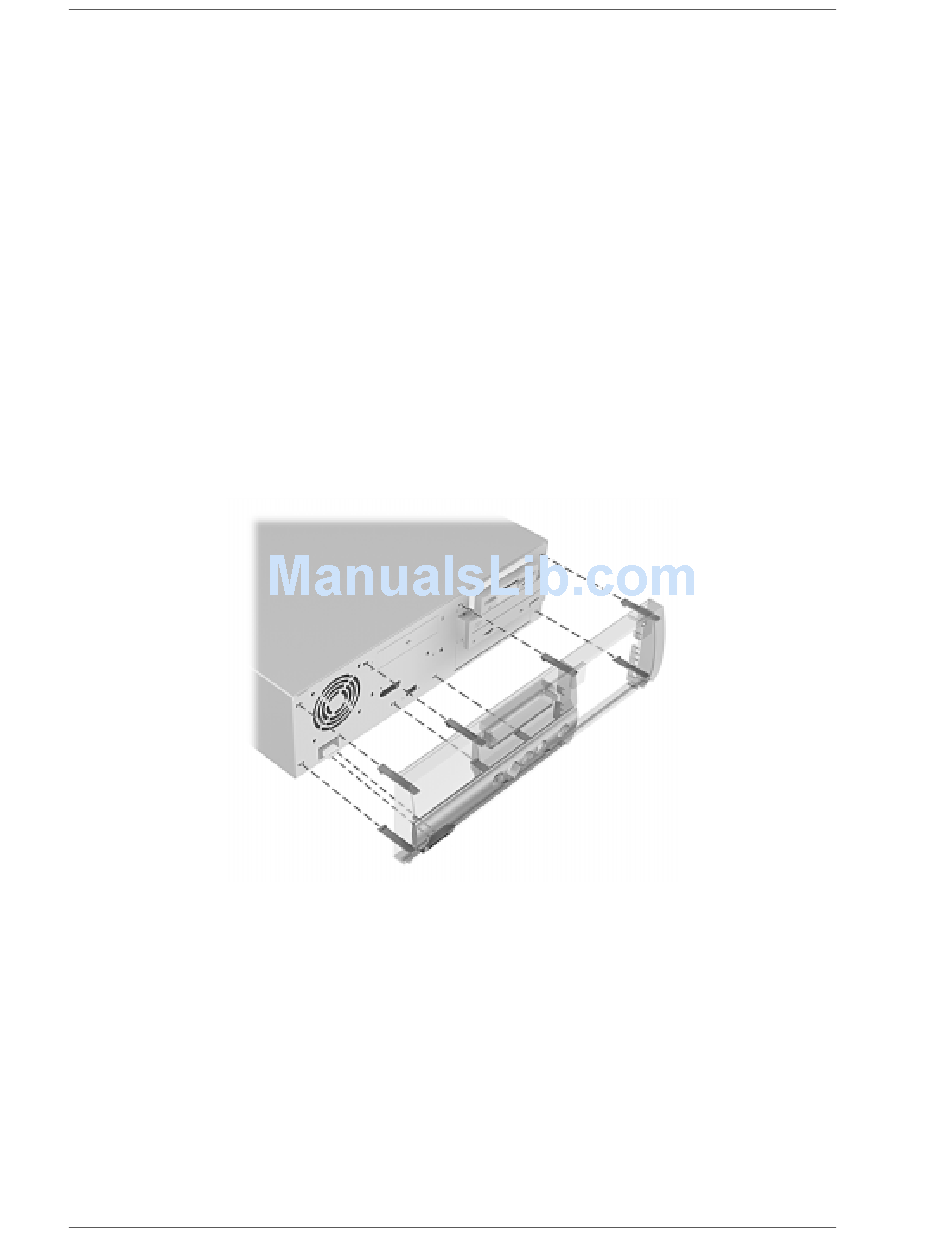

Aligning the Front Panel — Desktop
