A – Screw
Removing an Expansion Board — Small Desktop or Desktop
To remove an expansion board from a small desktop or desktop system, use the
following steps.
1. Remove the system unit cover (see "Removing the Small Desktop or
Desktop Cover").
2. Label and remove any cables connected to the board.
3. Remove the screw that secures the board to the support bracket. Set the
screw aside (it is used to secure the slot cover).
4. Pull the board out of the connector and the expansion board slot.
5. Replace the slot cover removed when the expansion board was installed.
Secure the cover with the screw.
6. Replace the system unit cover (see "Replacing the Small Desktop or
Desktop Cover").
Installing an Expansion Board — Small Desktop or Desktop
To install an expansion board in a small desktop or desktop system, use the
following steps.
1. Remove the system unit cover (see "Removing the Small Desktop or
Desktop Cover").
2. Follow any preinstallation instructions that come with the expansion board
(such as setting jumpers on the board).
3. If necessary, remove the slot cover (see "Removing a Slot Cover — Small
Desktop or Desktop").
3-48 Disassembly and Reassembly

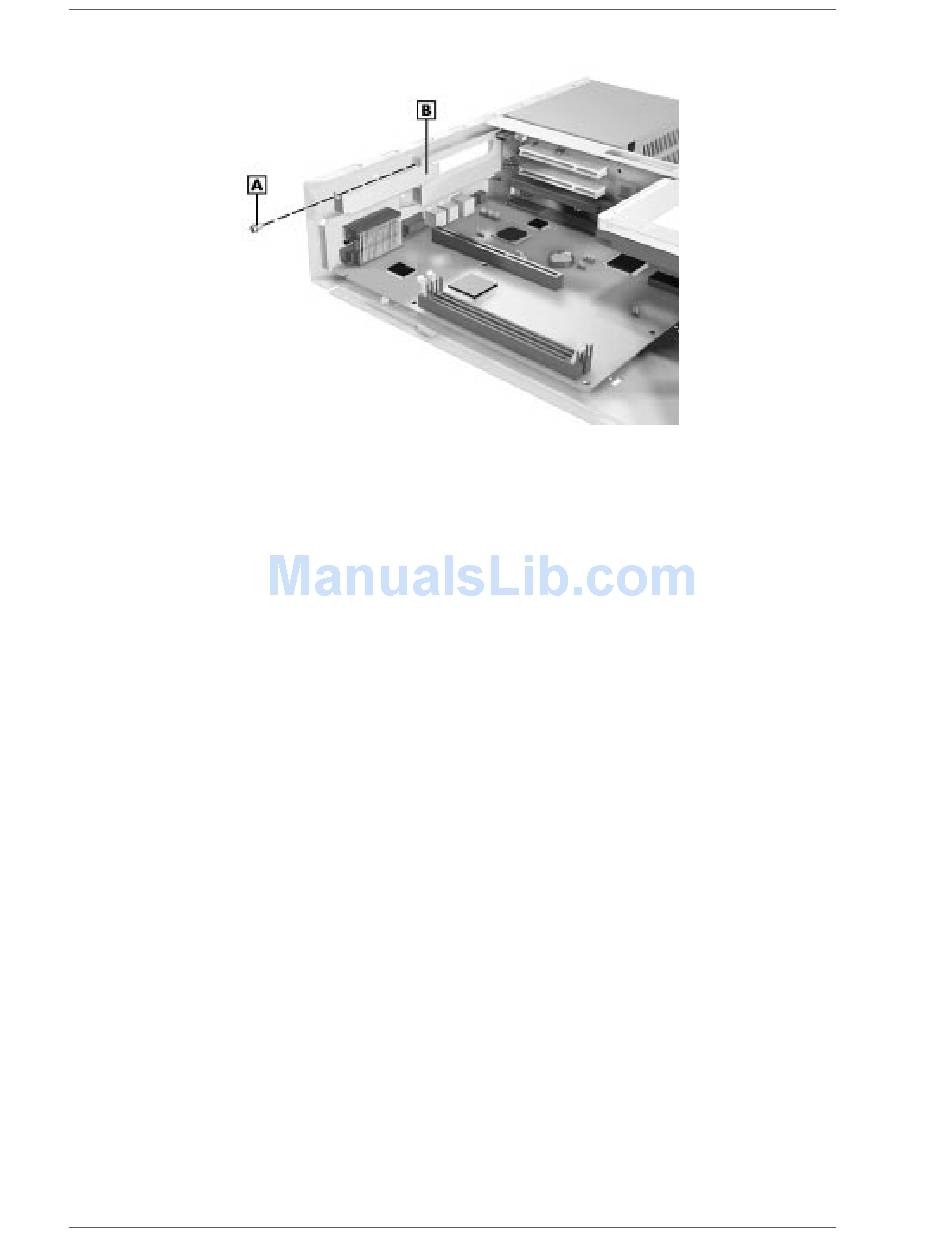

Removing a Slot Cover — Small Desktop
B – Slot Cover
