Installing a 3 1/2-Inch Hard Drive — Desktop
The desktop system has an internal hard drive bay located near the right rear
corner of the chassis, above the power supply. It also has an accessible 3 1/2-
inch bay that can accommodate a second diskette drive, or a second hard drive.
You can upgrade the system by replacing the existing hard drive, or by adding a
hard drive to the 3 1/2-inch accessible device bay. (For instructions on adding an
additional hard drive, see "Installing an Additional 3 1/2-Inch Device —
Desktop").
To install a 3 1/2-inch device in the 3 1/2-inch internal device bay, proceed as
follows.
1. Follow the preinstallation instructions that come with your device, such as
setting jumpers.
2. Remove the system unit cover (see "Removing the Small Desktop or
Desktop Cover").
3. If a currently installed hard drive is being replaced, see "Removing a 3 1/2-
Inch Hard Drive — Desktop."
4. With the cable connectors toward the interior of the system, place the new
the hard drive in the bracket and align the screw holes (see the figure in
"Removing a 3 1/2-Inch Hard Drive — Desktop").
5. Insert and tighten the two screws to secure the hard drive in the bracket.
6. Connect the device cables.
7. Replace the system unit cover (see "Replacing the Small Desktop or
Desktop Cover").
8. Run the Setup program to set the new configuration (see "CMOS Setup
Utility" in Section 2).
3-32 Disassembly and Reassembly

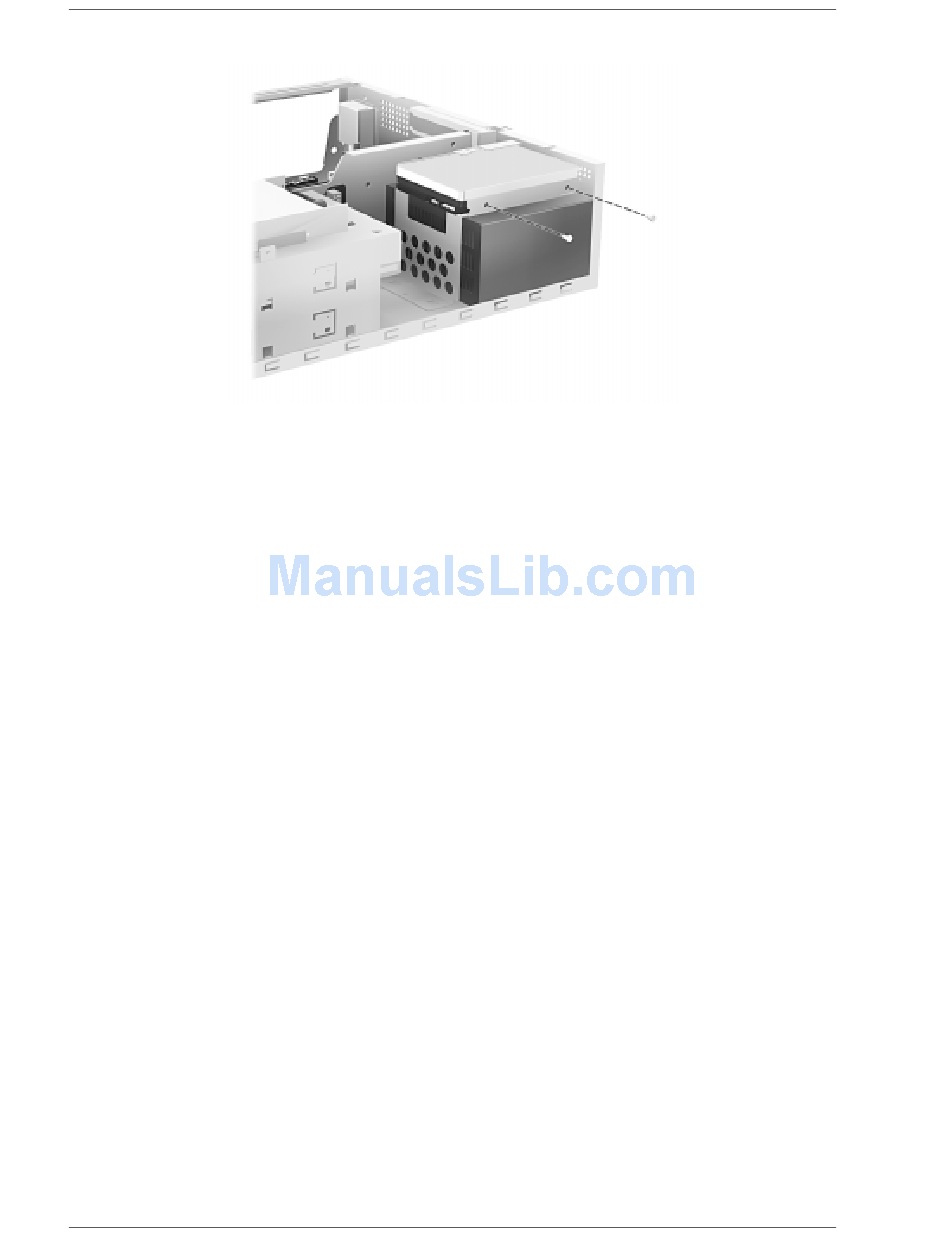

Internal Hard Drive Screws — Desktop
