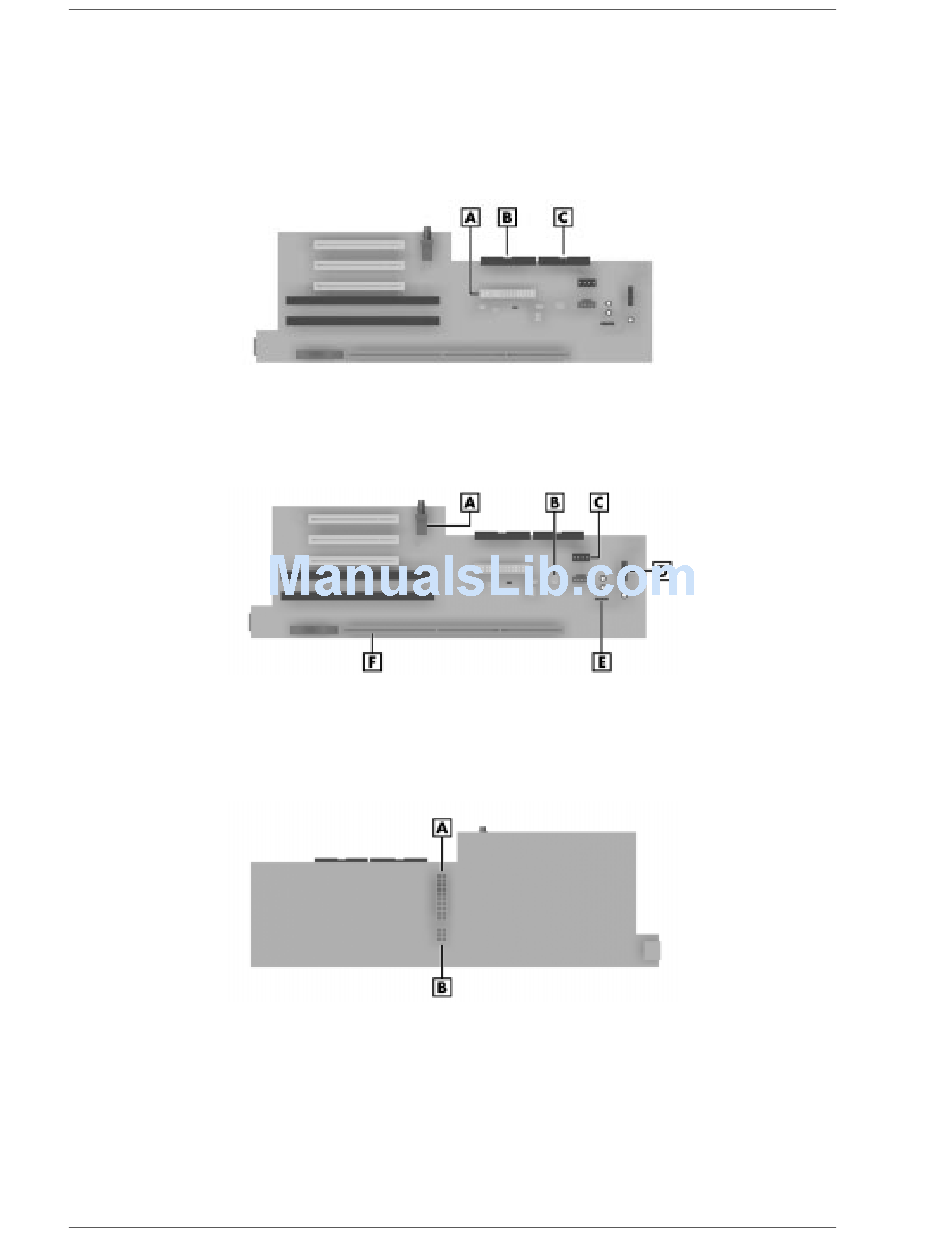

Riser Board Connectors — Desktop
The following figures show the drive connectors, auxiliary connectors, and
power connectors on the desktop riser board.
A – Secondary IDE Connector
B – Primary IDE Connector
Riser Board Auxiliary Cable Connectors — Desktop
A – Chassis Intrusion Connector
B – Fan Connector
C – CD Audio In Connector
Riser Board Power Cable Connectors — Desktop
A – Main Power Connector
5-4 Riser Board
Riser Board Cable Connectors — Desktop
C – Diskette Drive Connector
D – Front Feature Connector
E – USB Connector
F – NLX Connector (System Board)
B – Auxiliary Power Connector
