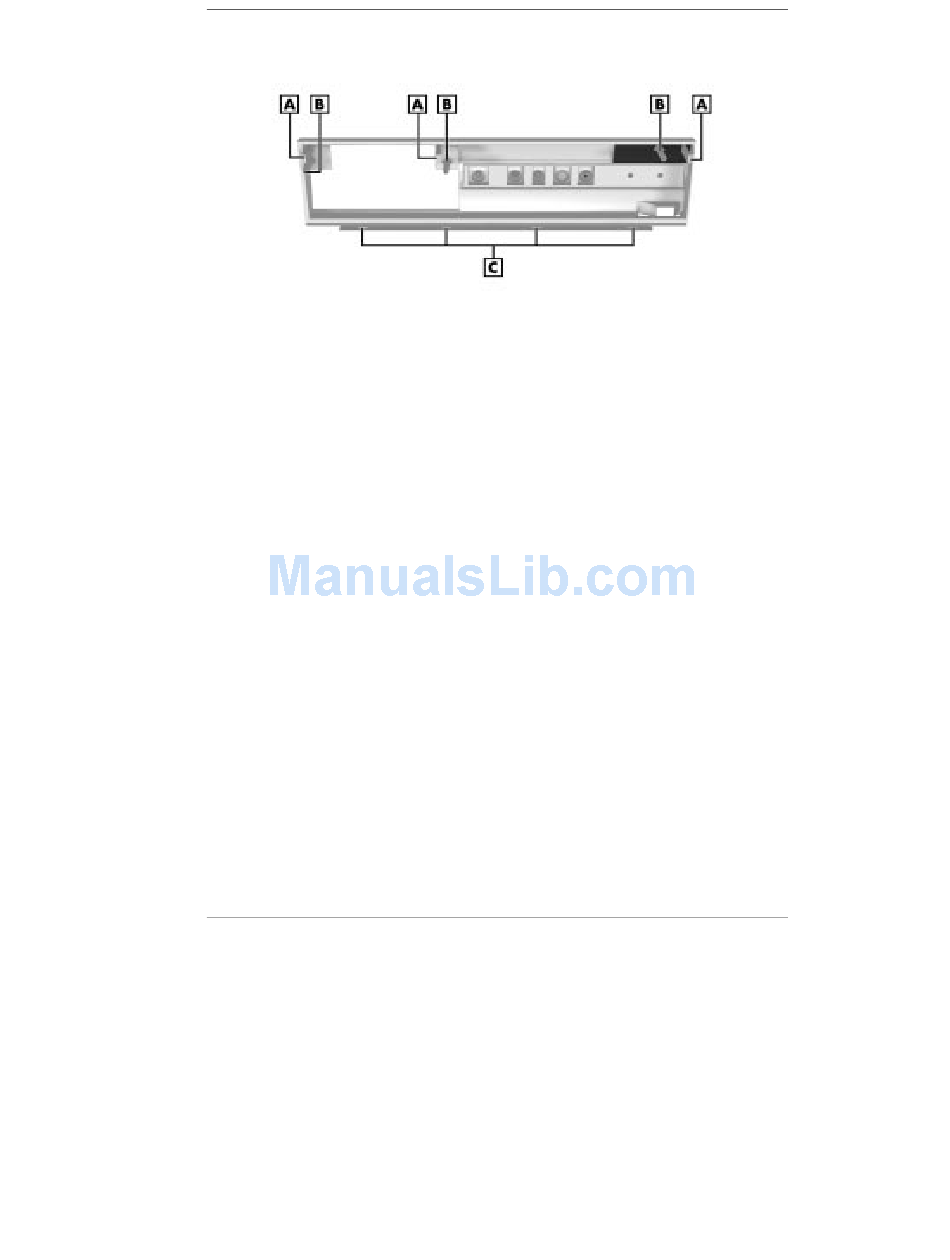

Locating the front panel tabs, posts, and slots — small desktop
A – Locking Tabs
B – Posts
3. Once the locking tabs are free, tilt the front panel down to
free its lower edge from the tabs on the bottom of the
chassis.
4. Install the device (see "Installing a 5 1/4-Inch Device —
Small Desktop").
Replacing the Front Panel — Small Desktop
Replace the small desktop front panel as follows.
1. Align the front panel posts with the holes in the front of
the system unit (see the following figure). Align the front
USB port with the cutout on the front panel.
2. Press along the top edge of the front panel and then along
the bottom and side edges until the front panel snaps into
place.
3. Replace the system unit cover (see "Replacing the Small
Desktop or Desktop Cover").
C – Slots
Installing Options 5-77
