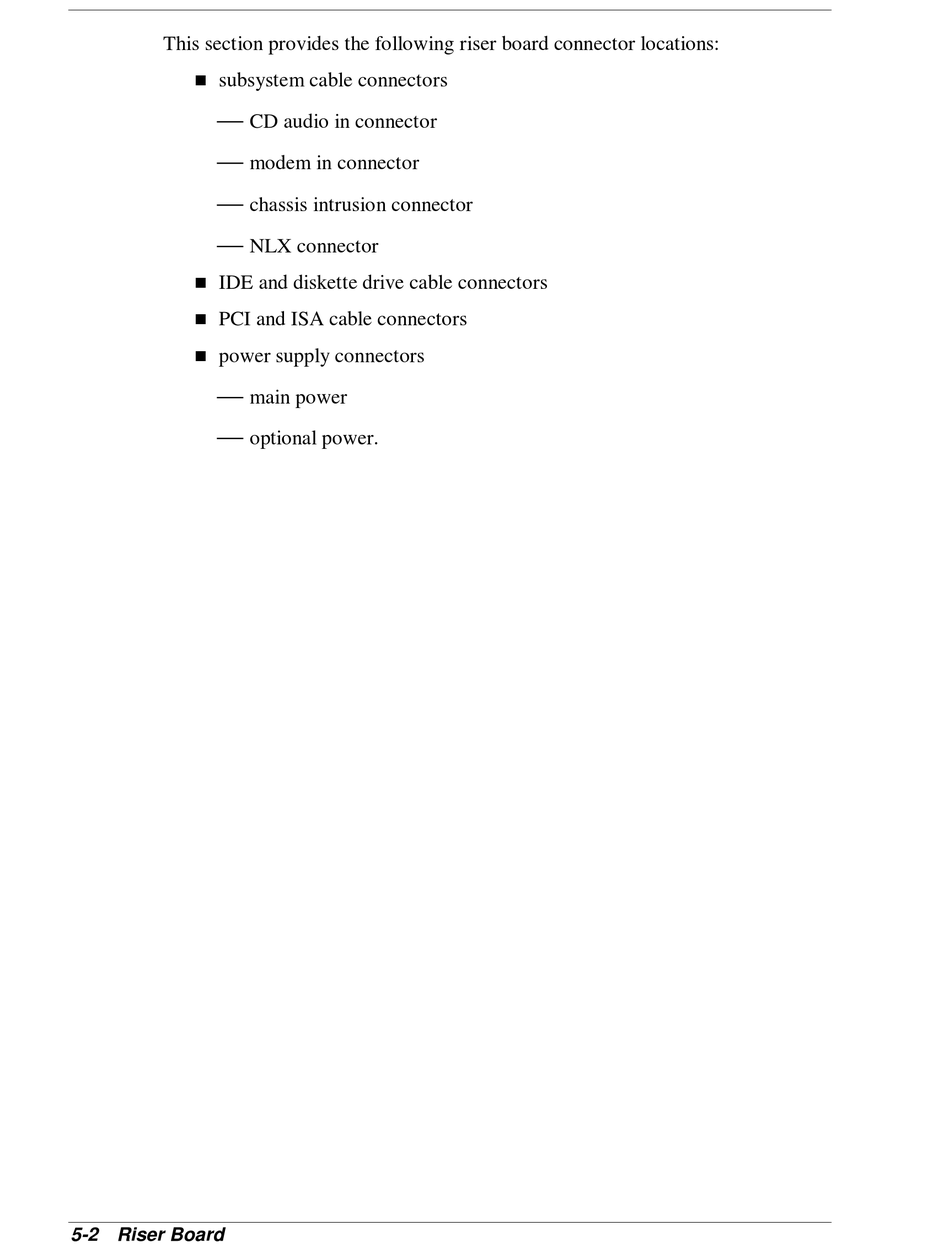

This section provides the following riser board connector locations:
T
subsystem cable connectors
T
IDE and diskette drive cable connectors
T
PCI and ISA cable connectors
T
power supply connectors
5-2 Riser Board
CD audio in connector
modem in connector
chassis intrusion connector
NLX connector
main power
optional power.
