5 1/4-Inch Device Removal and Installation

The following sections describe how to remove or replace a 5 1/4-inch
accessible device. Procedures for small desktop, desktop, and minitower
systems are given.
Removing a 5 1/4-Inch Device — Small Desktop or Desktop
Use the following procedure to remove a 5 1/4-inch device from a 5 1/4-inch
accessible device bay.
1. Remove the system unit cover (see "Removing the Small Desktop or
Desktop Cover").
2. Remove the front panel.
T
For a small desktop system see "Removing the Front Panel — Small
Desktop."
T
For a desktop system, see "Removing the Front Panel — Desktop."
3. Label and disconnect the device cables.
4. Remove the two screws on the right side of the device (see the following
figure).

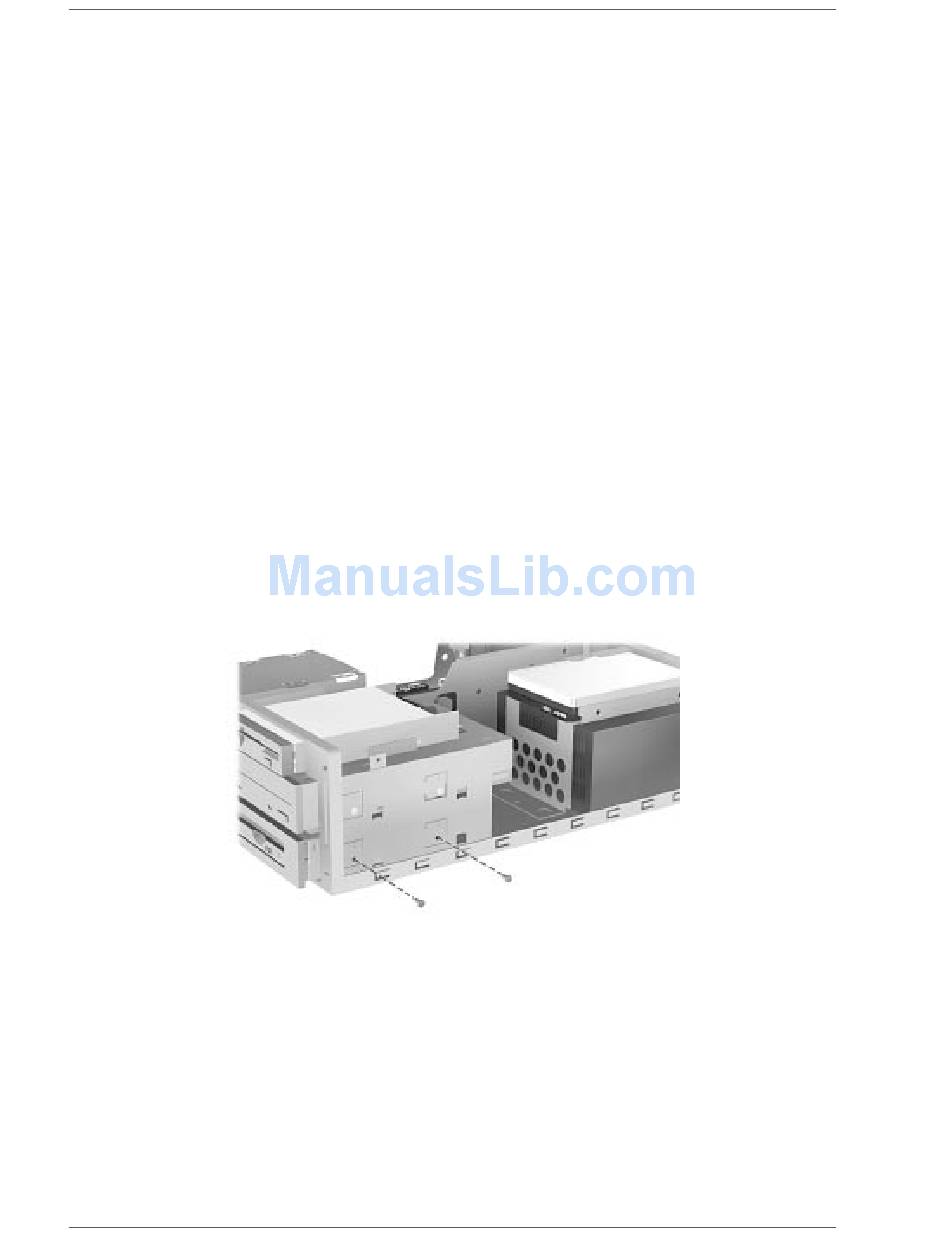

Locating 5 1/4-Inch Device Screws — Desktop
5. Pull the device out of the bay (see the following figure).
3-26 Disassembly and Reassembly
