Before picking up the processor cartridge, reduce static
discharge by touching the metal chassis of the system unit.
2. Align the cartridge with the guides in the retention mechanism (see the
following figure). The cooling fan faces the rear of the chassis.
3. Insert the cartridge into the retention mechanism and evenly press down on
the cartridge until it is fully seated in the Slot 1 connector.
4. Align the retaining bar with the top of the cartridge and evenly press down
on the bar until it snaps in place on the cartridge (see the following figure).

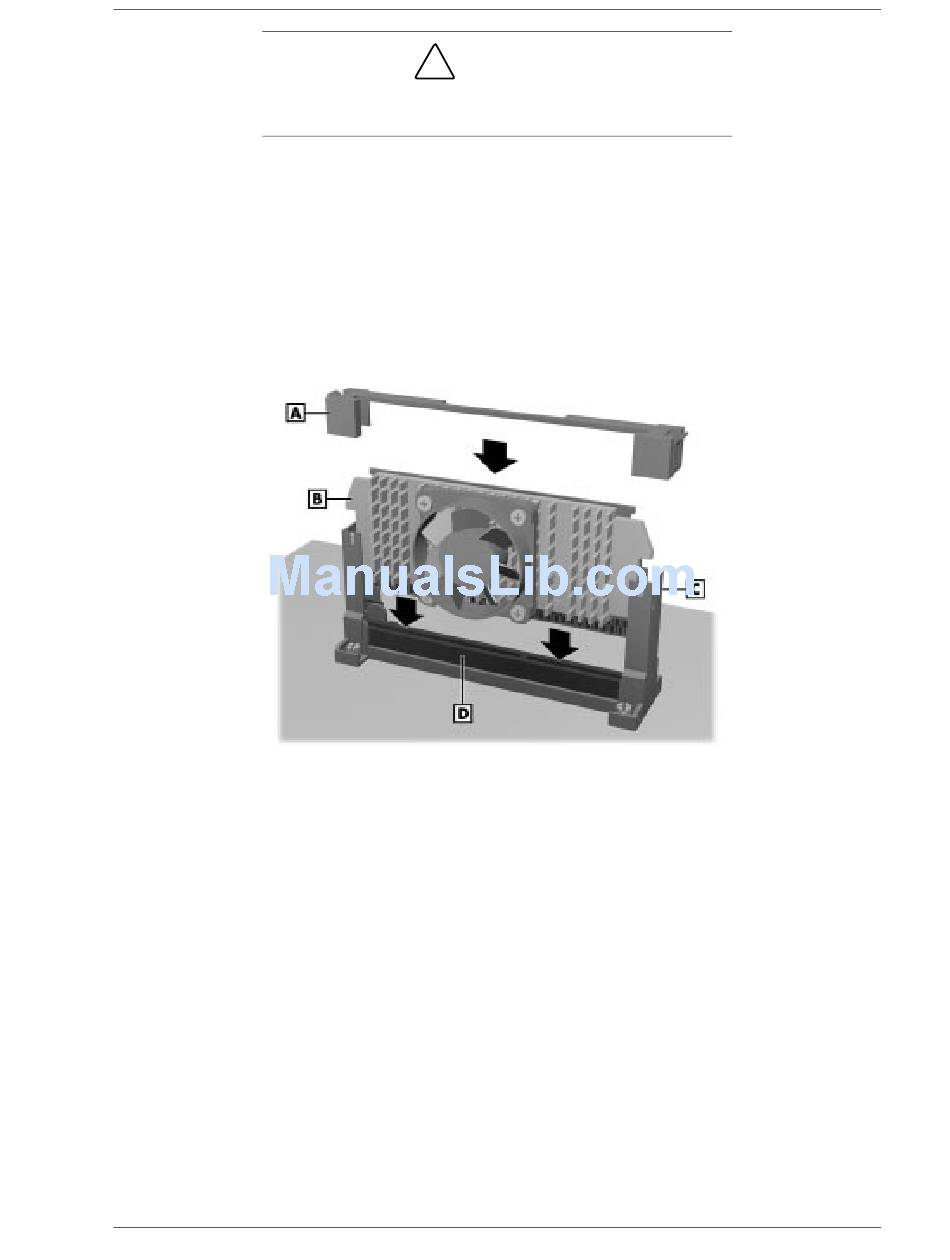

Positioning the Celeron or Pentium III Processor Cartridge

A – Retaining Bar
B – Processor Cartridge
5. Replace the system board.
T
For a small desktop system, see "Installing the System Board — Small
Desktop."
T
For a desktop system, see "Installing the System Board — Desktop."
T
For a minitower system, see "Installing the System Board —
Minitower."
6. Connect any other cables that may have been disconnected for access to the
system board.
7. Replace the system unit cover.
T
For a small desktop or desktop system, see "Replacing the Small
Desktop or Desktop Cover."
T
For a minitower system, see "Replacing the Minitower Side Covers."
! CAUTION
C – Retention Mechanism
D – Slot 1 Connector
Disassembly and Reassembly 3-55
