The B2000 workstation has 4 memory slots, labeled SL0 through SL3. Memory can be
configured from 256 MB to 2 GB for the B2000 workstation. Memory does not have to be
configured in pairs for the B2000, but must be loaded in the order shown in Figure 2-2.
Notice the alternating load pattern by location on the system board.

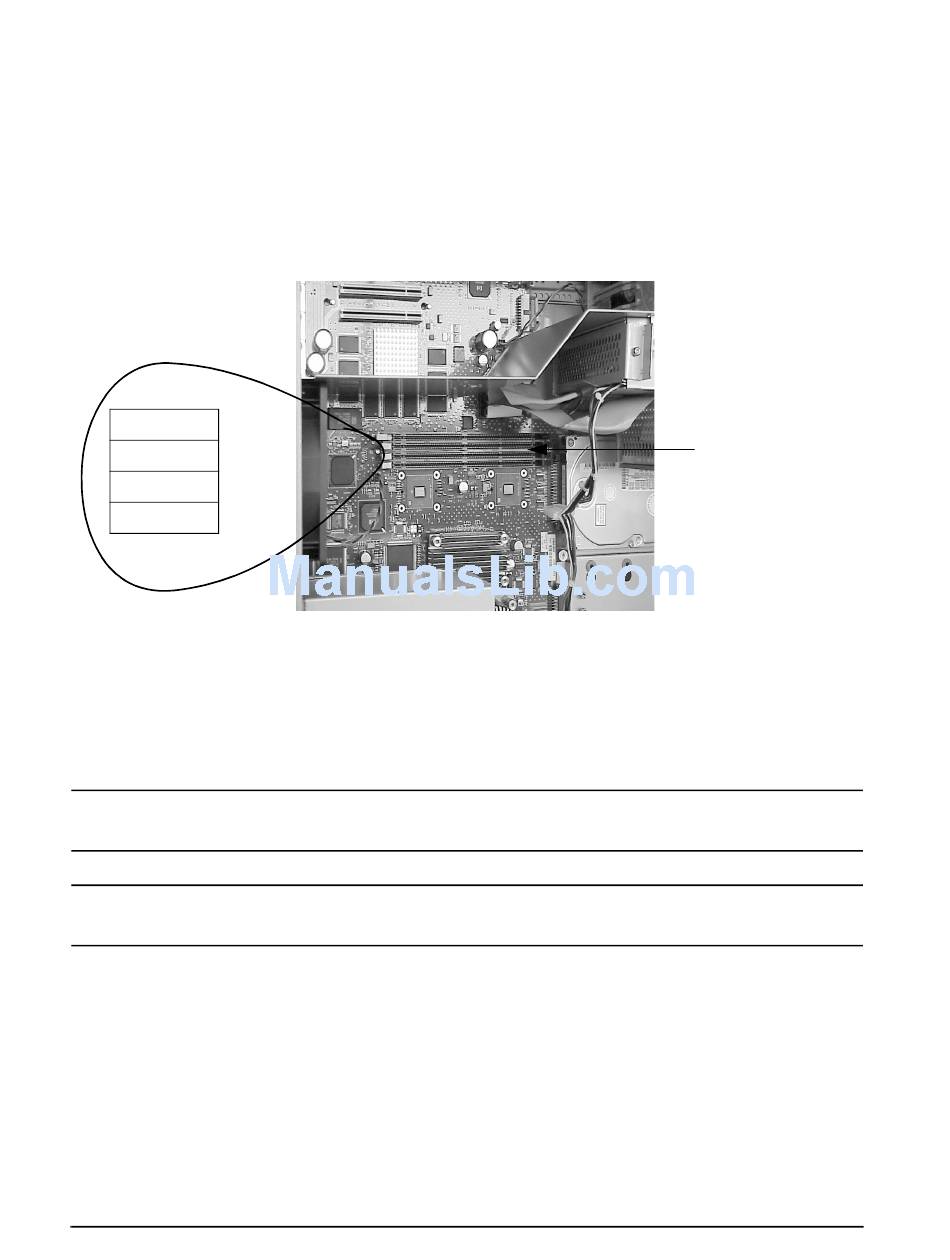

Figure 2-2. Memory Slot Numbers and Loading Sequence

SL0
Load 1st
SL3
Load 4th
SL1
Load 2nd
SL2
Load 3rd
The B2000 workstation supports 128 MB, 256 MB, and 512 MB DIMMs. If you will install
different sizes of memory DIMMs in a particular workstation, load the largest size first
and then the smaller size for maximum performance. For example, load a 256 MB DIMM
in slot 0 (SL0) and then load a 128 MB DIMM in slot 1 (SL1).
CAUTION
The memory DIMMs must be installed in the correct order, else the
workstation will not boot properly.
NOTE
Users who wish to achieve both maximum performance and maximum future
capacity are advised to use 512 MB DIMMs exclusively.
To remove DIMMs, see the section titled "Removing Memory DIMMs" on page 114. To
replace or install DIMMs, see the section titled "Replacing or Installing Additional
Memory DIMMs" on page 115. Note that there is a system label on the floor of the
workstation's interior showing the memory loading order for the B2000.
Use the Boot Console Handler to verify that the workstation recognizes the installed
memory. See "Displaying the Current Memory Configuration" on page 156.
