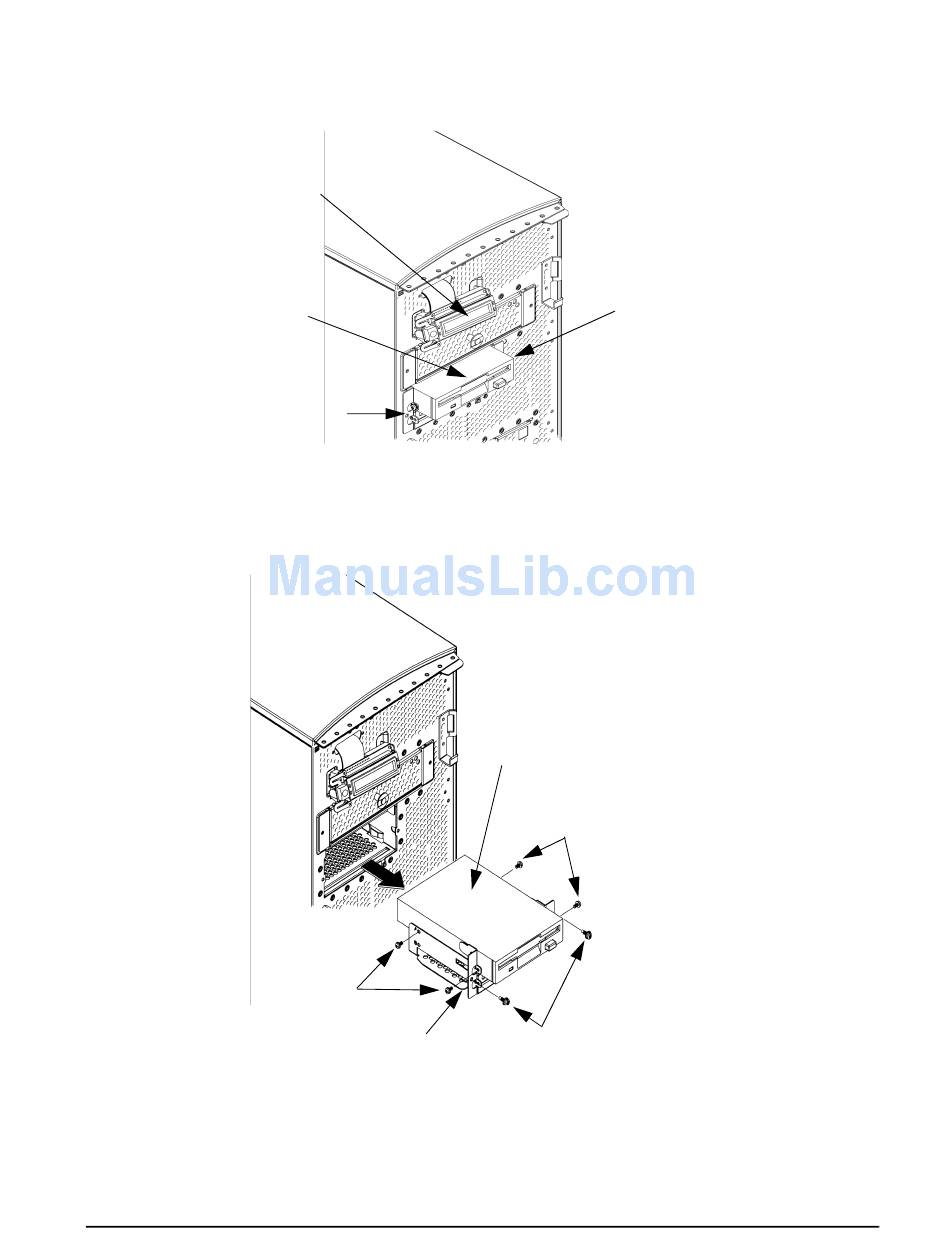

Figure 4-13. Front of Workstation with the Front Panel Removed

Floppy
Disk Drive
Bracket Screw
5. Remove both floppy disk drive bracket screws (T-15 Torx/slotted screws) and pull the
floppy disk drive out of the workstation chassis as shown in Figure 4-14.

Figure 4-14. Removing the Floppy Disk Drive

Floppy Disk Drive
Mounting Screws
(T-15 Torx)
6. Remove the four floppy disk drive mounting screws (T-15 Torx/slotted screws) from the
sides of the floppy disk drive bracket as shown in Figure 4-14 and remove the floppy
disk drive from the bracket.
Chapter 4
LCD
Floppy Disk
Drive Bracket
Bracket
Screw
(hidden)
Floppy
Disk Drive
Floppy Disk Drive
Mounting Screws
(T-15 Torx)
Bracket Screws
(T-15 Torx)
Field Replaceable Units
FRU Removal and Replacement
97
