Replacing or Installing a Hard Disk Drive
NOTE
After replacing or installing a hard disk drive, you will need to mount it and
create a file system on it. Follow the procedures in the section "Configuring a
Hard Disk Drive as a File System" on page 33.
1. Remove the left side panel of the workstation using the instructions found in the section
"Opening the Side Panel." As you face the open, left side of the workstation, the hard
disk drives are on the right side. The lower hard disk drive (SCSI ID 5) is the one
discussed in this section. Figure 4-29 shows an empty bracket for the lower hard disk
drive.

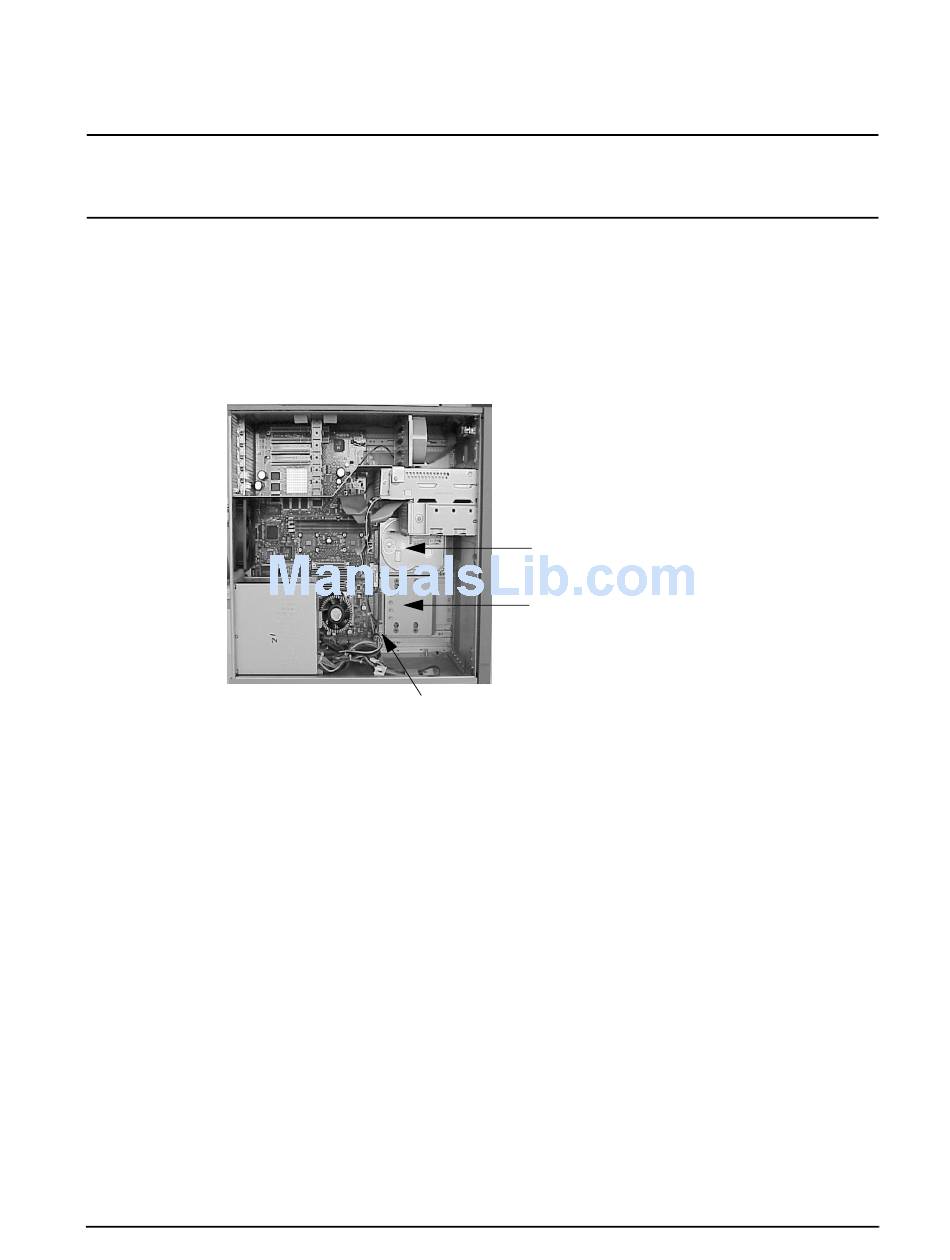

Figure 4-29. Location of the Hard Disk Drives

2. Loosen the T-15 Torx thumbscrew securing the hard disk drive bracket to the system
board. See Figure 4-29. Grasp the bracket and slide it to the front of the workstation to
unseat the bracket from the chassis rail. You may need to angle the hard disk drive
bracket slightly to disengage the hooks as you slide it along the rail.
3. Mount the hard disk drive on the hard disk drive bracket using the four T-15 Torx
mounting screws that are stored on the bracket. See Figure 4-30 for the location of the
mounting screws and Figure 4-31 for positioning the bracket on to the hard disk drive.
Chapter 4
T-15 Torx Thumbscrew
FRU Removal and Replacement
Upper Hard Disk Drive
(SCSI ID 6 -- System Disk)
Bracket for the Lower
Hard Disk Drive (SCSI ID 5)
Field Replaceable Units
107
