Perform the following steps to replace or install additional memory DIMMs:
1. Open the left side panel of the workstation as shown in the section "Opening the Left
Side Panel."

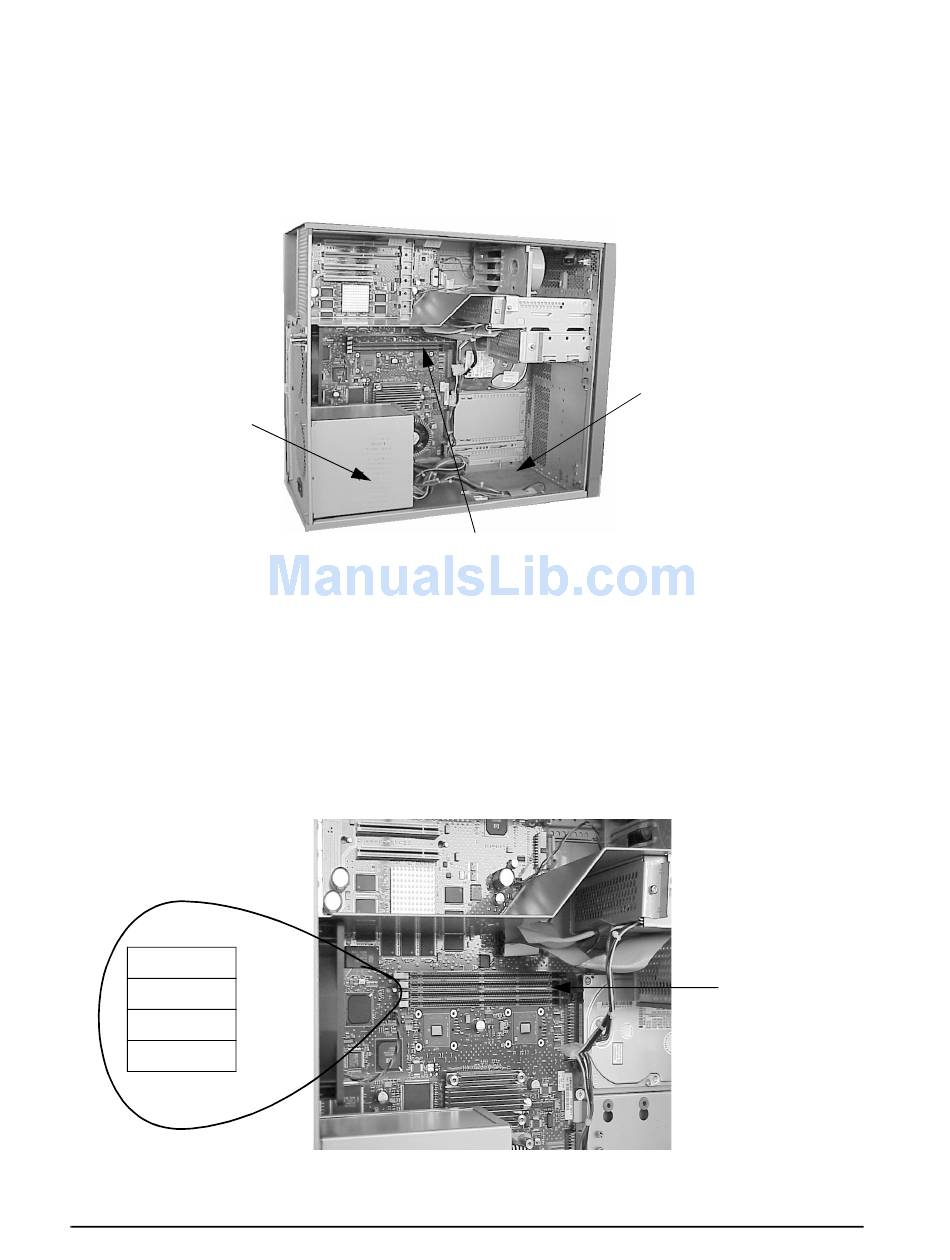

Figure 4-42. System Board View

Power
Supply
2. Position the workstation so that the DIMM connectors on the system board face you, as
shown in Figure 4-43. Note that Figure 4-43 also shows the loading sequence for the
DIMM cards. This loading sequence must be maintained when you install the DIMM
cards, but the size of the DIMM card put in each slot can vary. For example, you can
install a 256 MB card before a 512 MB card, and then follow the installation of the
512 MB card with another 256 MB card. The B2000 workstation supports 128 MB,
256 MB, and 512 MB DIMM cards.

Figure 4-43. Memory Slot Numbers and Loading Sequence

SL0
Load 1st
SL3
SL1
SL2
116
Load 4th
Load 2nd
Load 3rd
DIMM connectors
B2000
System Label
Memory Slots
(4 Slots)
