12.Make sure that the audio, ATAPI, and power cables are positioned so that they will
come out of the bottom edge of the CD drive bay's rear cover when it is replaced. (Note
that the rear cover's bottom edge is rounded to prevent cutting of the cables.) To replace
the rear cover, place the end opposite of the rear cover handle into the cover slot and
rotate it into place. Tighten the T-15 Torx/slotted screw to secure the rear cover. Note
that, when you replace the rear cover, the ferrite bead on the ATAPI cable must remain
outside of the CD drive bay's rear cover. See Figure 4-11.

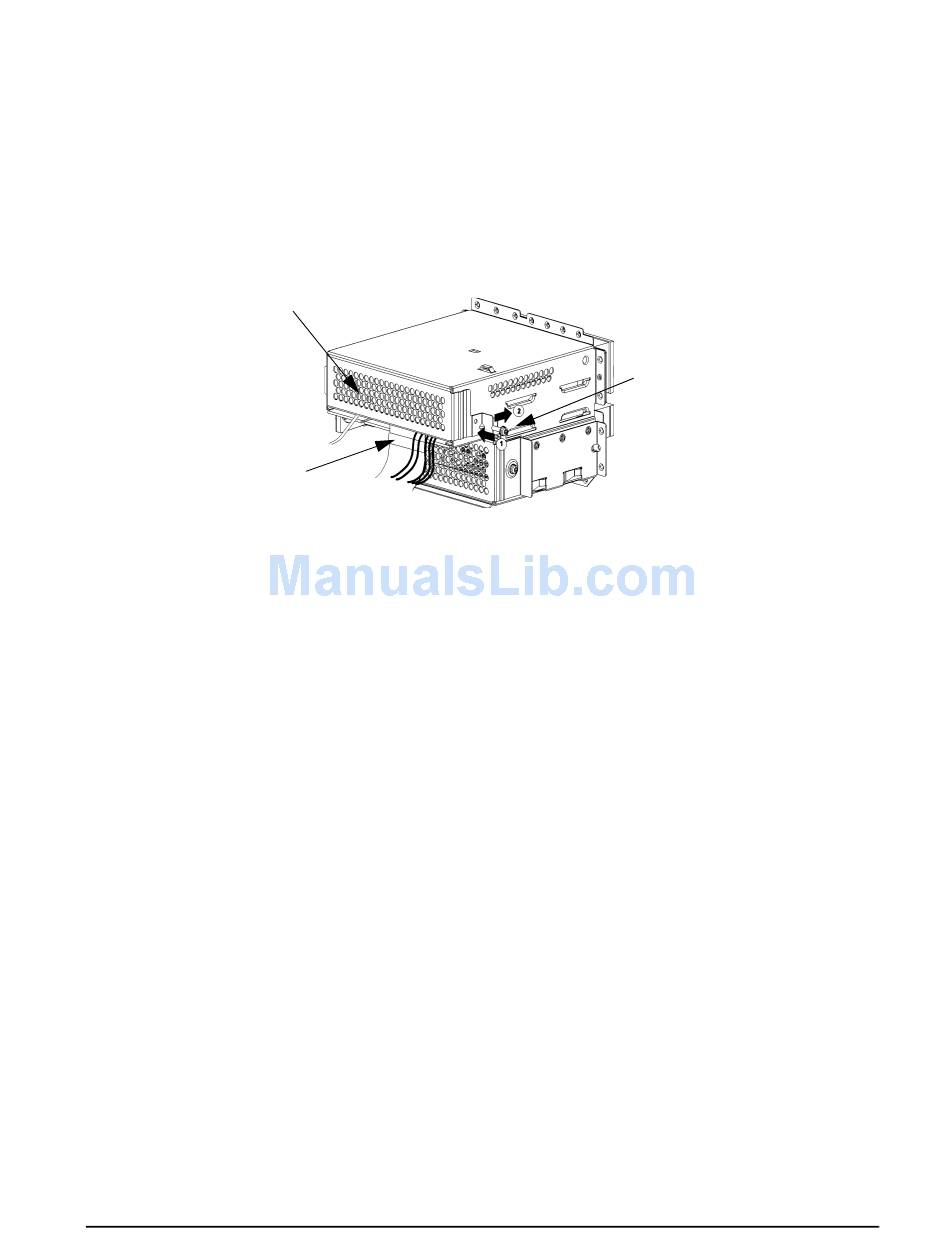

Figure 4-11. Replacing the CD Drive Bay's Rear Cover

Rear Cover
Ferrite Bead
13.Make sure that all cables are positioned within the workstation so that they cannot be
damaged. Then close the left side and front panels of the workstation as shown in the
sections "Closing the Left Side Panel" and "Closing the Front Panel."
Chapter 4
Field Replaceable Units
FRU Removal and Replacement
T-15
Torx/Slotted
Screw
95
