CD Drive Configuration
The CD drive connects to the ATAPI (IDE) interface in the CD drive bay backplane within
the B2000 workstation via a 40-pin ribbon cable, a 4-pin audio cable, and a 4-pin power
cable. No interface addressing is required for the CD drive.

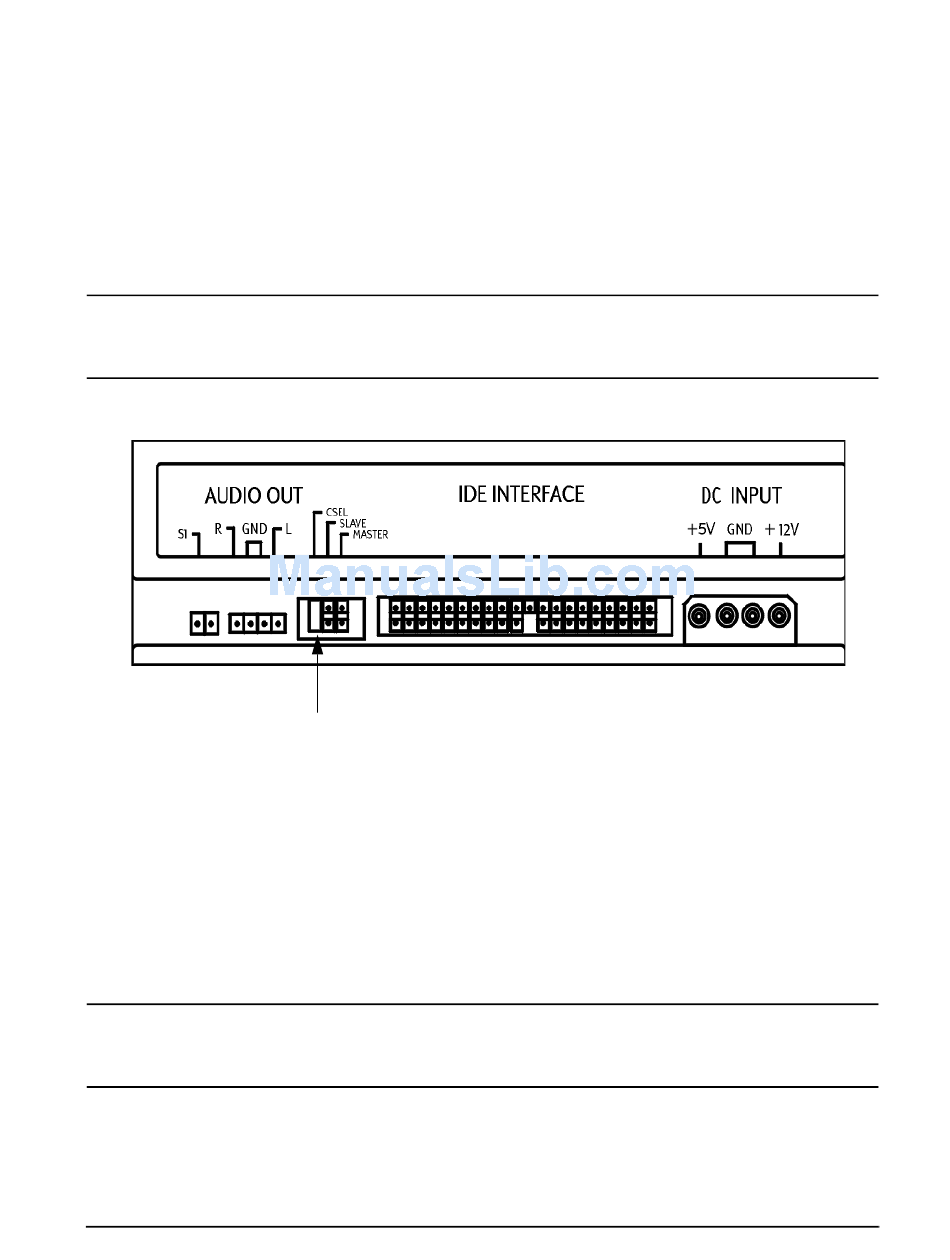

However, as shown in Figure 2-1, the CD drive should have a jumper set on the CSEL
(Cable Select) selection pins. (The CD drive should ship from the factory already jumpered
for CSEL.)
CAUTION CD drives are susceptible to mechanical and electrostatic shock. When
handling the drive, always wear the static-grounding wrist strap that came in
the CD drive kit. Always handle the drive carefully.

Figure 2-1. CD Drive Jumper Setting (Rear View)

To remove and replace a CD drive in the B2000 workstation, see the section titled
"Removing and Replacing a CD Drive" on page 91.
Floppy Disk Drive (Optional) Configuration
The optional 3.5-inch floppy disk drive requires no ID, switch, or jumper settings. To
remove a floppy disk drive from the B2000 workstation, see the section titled "Removing a
Floppy Disk Drive" on page 96. To replace or install a floppy disk drive, see the section
titled "Replacing or Installing a Floppy Disk Drive" on page 99.
CAUTION Floppy disk drives are susceptible to mechanical and electrostatic shock.
When handling the drive, always wear the static-grounding wrist strap that
came in the floppy disk drive kit. Always handle the drive carefully.
Chapter 2
Jumpered for CSEL
Configuration
System Hardware Configurations
37
