Audio Connectors

The B2000 workstation has audio-input and -output capabilities through external input
and output connectors on the rear panel and through an internal speaker. The sound is
16-bit, 44 kHz (CD-quality).
As shown in Figure 1-6, the workstation's rear panel contains four audio connectors: Line
In, Line Out, Microphone In, and Headphones Out.

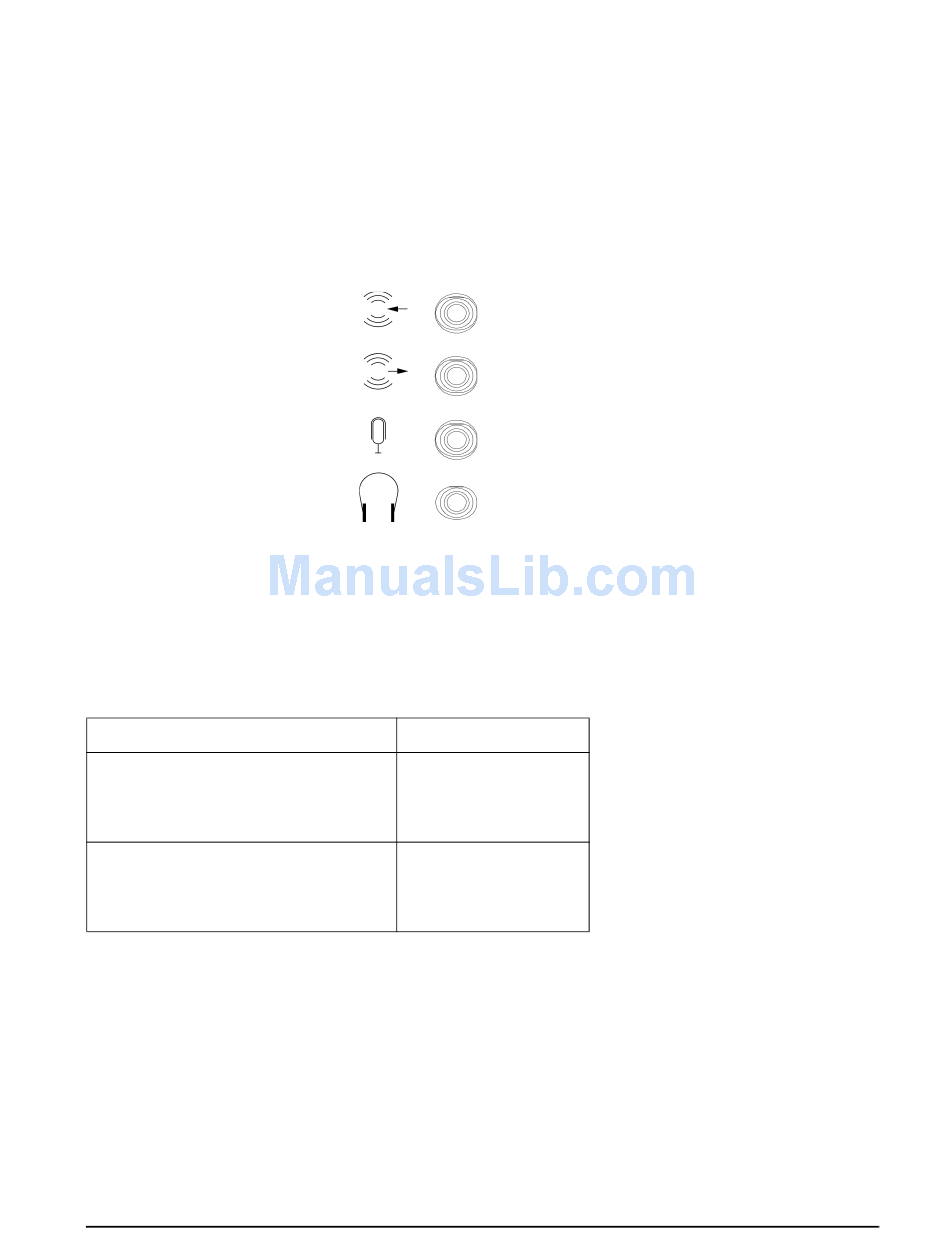

Figure 1-6. Audio Connectors

Microphone In
Headphones Out
The audio connectors are standard stereo audio mini-jacks. Hewlett-Packard recommends
using gold-plated plugs available through audio retailers for best quality recording and
playback through the external connectors.
Table 1-5 summarizes the audio electrical specifications for the B2000 workstation.

Table 1-5. Audio Electrical Specifications

Frequency Response
Input Sensitivity/Impedance:
Line In
Microphone In
Maximum Output Level/Impedance:
Line Out
Headphones Out

TOC Button

The TOC (transfer of control) button interrupts the system and transfers control from the
default device to an auxiliary device. A transfer of control saves the state of the processor
in Processor Internal Memory (PIM) and begins execution of recovery software at a
nonzero location specified by a special location in Page Zero called MEM_TOC. The TOC
code is protected by a checksum.
Chapter 1
Line In
Line Out
25 Hz to 20 kHz
2.8Vp-p/10Kohm
40mVp-p/47Kohm
2.8Vp-p/920ohm
5.6Vp-p/110ohm
Product Information
Rear Panel Components
25
