Speaker

This section explains how to remove and replace the speaker in the B2000 workstation.
The speaker is contained in the mounting bracket with the I/O fan. See Figure 4-53.

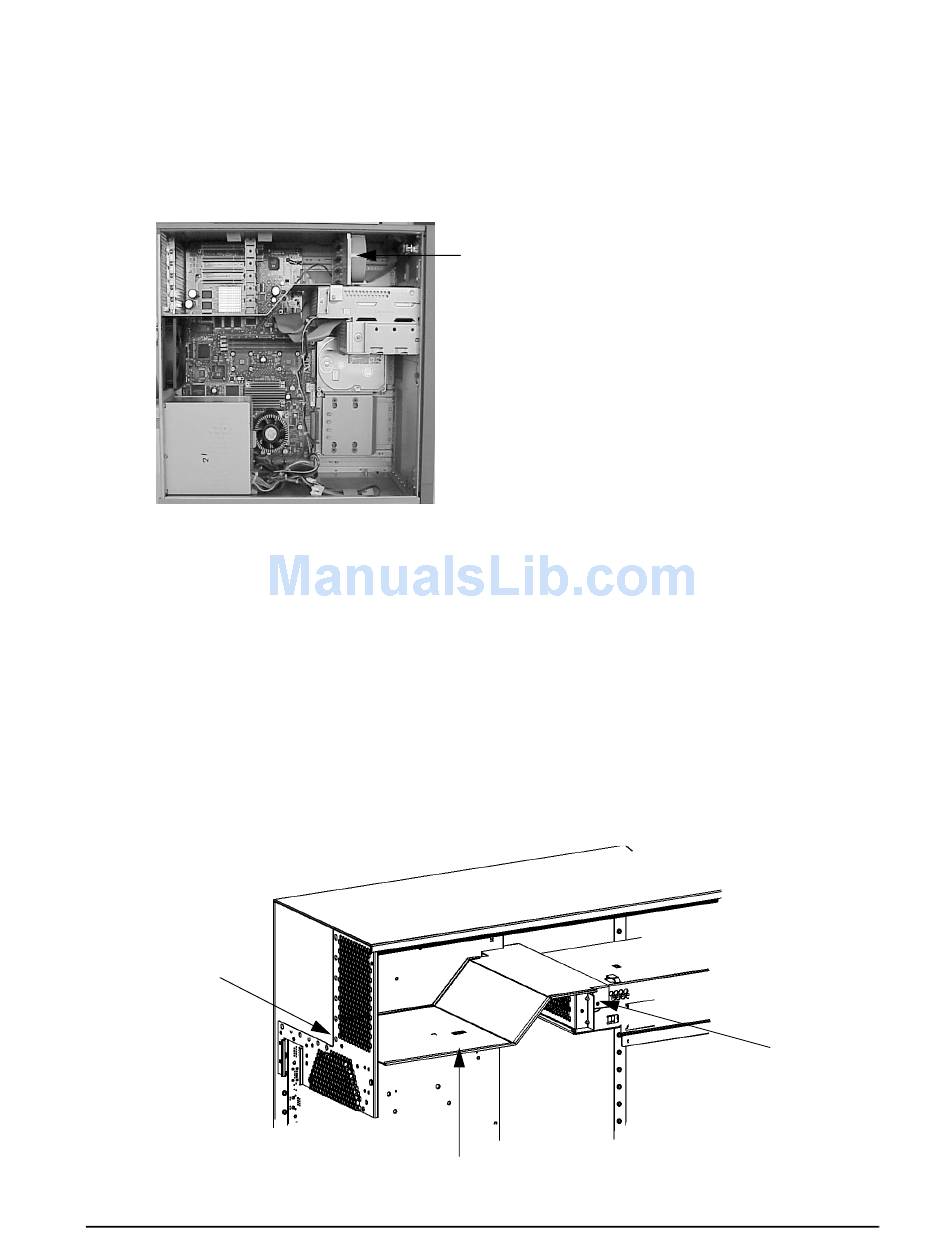

Figure 4-53. Location of the Speaker

Removing the Speaker
Perform the following steps to remove the speaker:
1. Open the left side panel of the workstation as shown in the section "Opening the Left
Side Panel."
2. Remove the PCI retainer clip and all I/O cards. See the section "Removing I/O Cards" on
page 111.
3. Unscrew the two T-15 Torx screws that hold the workstation's air divider in place, as
shown in Figure 4-54. Then grasp the edge of the air divider and pull it towards you to
remove it from the workstation.

Figure 4-54. Removing the Air Divider

T-15 Torx
Screw
Chapter 4
Speaker
Air Divider
Field Replaceable Units
FRU Removal and Replacement
T-15 Torx
Screw
127
