Field Replaceable Units
FRU Removal and Replacement
5. Remove the two T-15 Torx screws that secure the system board tray assembly to the
rear panel of the workstation chassis. See Figure 4-56.

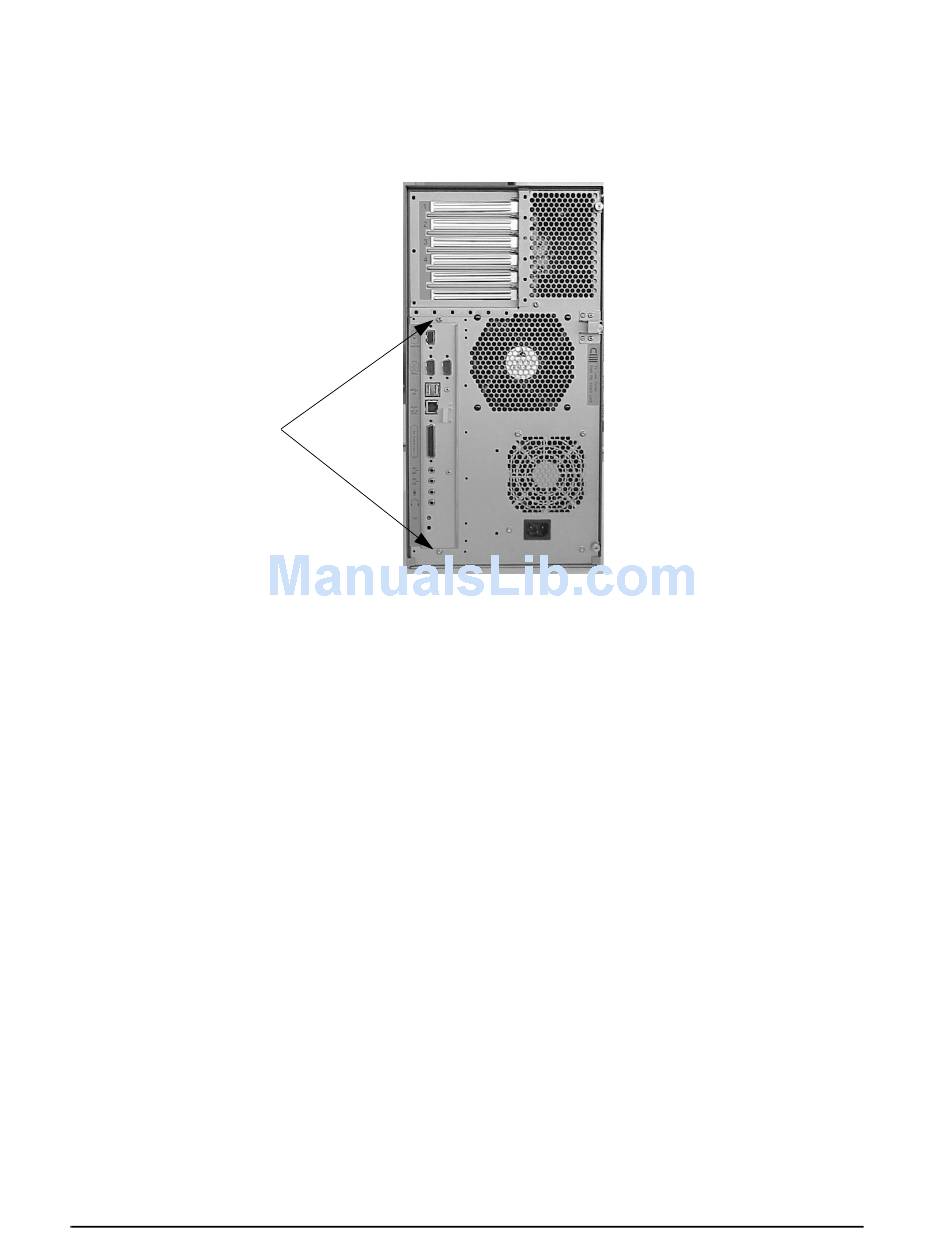

Figure 4-56. Screws Holding the System Board Tray Assembly in Place

Two T-15
Torx Screws
6. Grasp the system board tray assembly and slide the system board tray assembly toward
the front of the workstation. The keyholes in the system board tray assembly are
unlatched from the chassis wall hooks.
7. Tilt the system board tray assembly up, rotate it clockwise, and lift it out of the chassis.
Replacing the System Board Tray Assembly
Perform the following steps to replace the system board tray assembly:
1. Fold back all cables to avoid interference or damage when installing the system board
tray assembly in the workstation chassis.
2. Angle the system board tray assembly diagonally as you begin to put it into the
workstation chassis. Then position it flat inside the chassis, against the chassis wall.
3. Slide the system board tray assembly slightly to the front and then to the rear of the
workstation to engage the chassis wall hooks into the keyholes.
4. Screw in the two T-15 Torx screws that secure the system board tray assembly to the
rear panel of the workstation chassis. See Figure 4-56.
5. Connect all cables to the system board, including the following:
a. CD drive data and audio cables
b. Floppy disk drive data cable
c. I/O fan and speaker cables
130
Chapter 4
