10.Make sure that the floppy disk drive's power and data cables are positioned so that they
will come out of the top edge of the floppy disk drive bay's rear cover when it is replaced.
(Note that the rear cover's top edge is rounded to prevent cutting of the cables.) Put the
rear cover in place and tighten the T-15 Torx/slotted screw. See Figure 4-17.

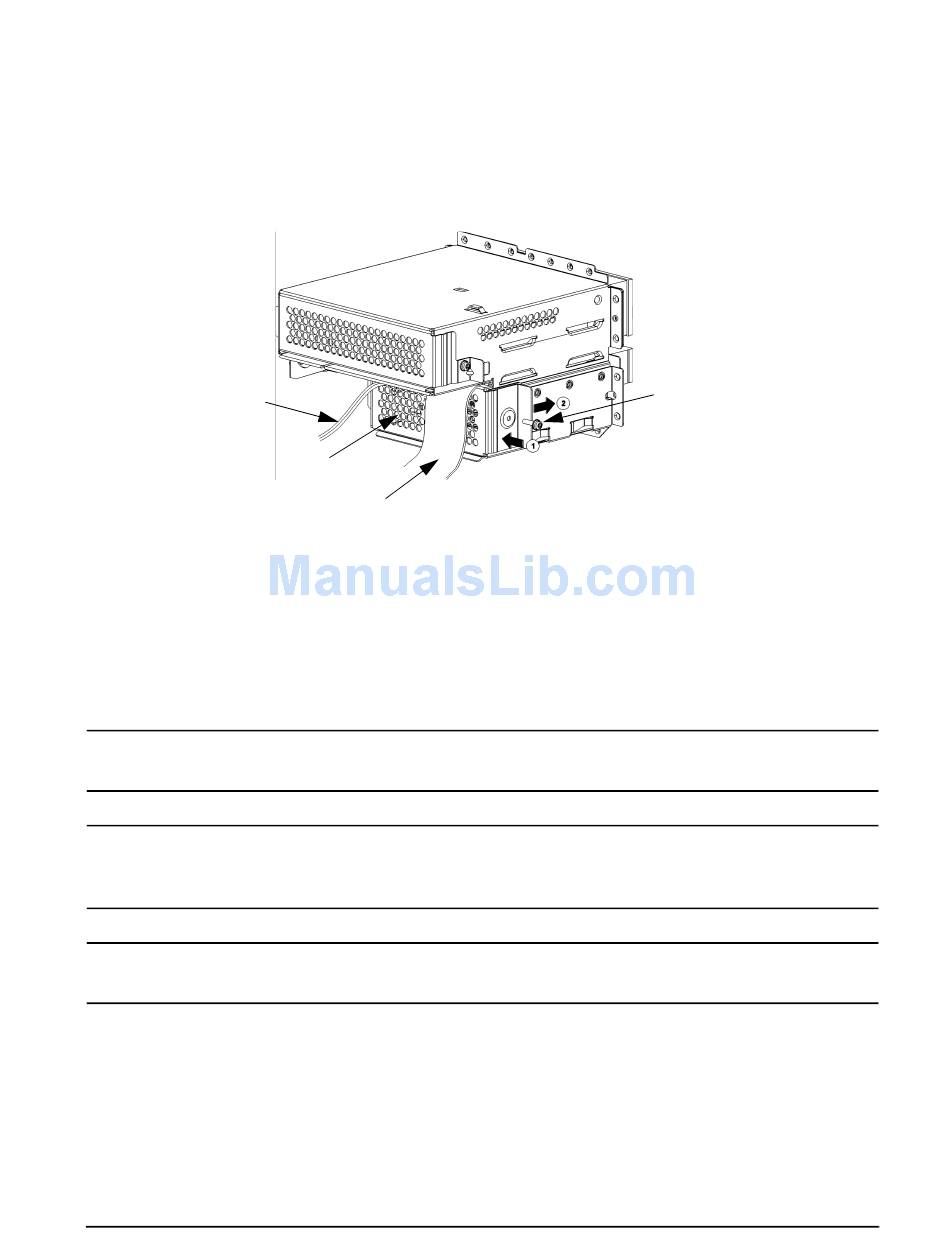

Figure 4-17. Replacing the Floppy Disk Drive Bay's Rear Cover

Power
Cable
Rear Cover
11.Replace the plastic floppy disk drive blank in the workstation's front panel.
12.Make sure that all cables are positioned within the workstation so that they cannot be
damaged. Then close the left side and front panels of the workstation as shown in the
sections "Closing the Left Side Panel" and "Closing the Front Panel."
Replacing or Installing a Floppy Disk Drive
WARNING Power off the workstation and unplug the power cord before
replacing (installing) the floppy disk drive.
Floppy disk drives are susceptible to mechanical and electrostatic shock.
CAUTION
When handling the drive, always wear the static-grounding wrist strap that
came in the floppy disk drive kit. Always handle the drive carefully.
NOTE There are no jumper settings required for the installation of the floppy disk
drive.
Perform the following steps to replace a floppy disk drive:
1. Open the front and left side panels of the workstation as shown in the sections
"Opening the Front Panel" and "Opening the Left Side Panel."
