9.4.

Standoff Types

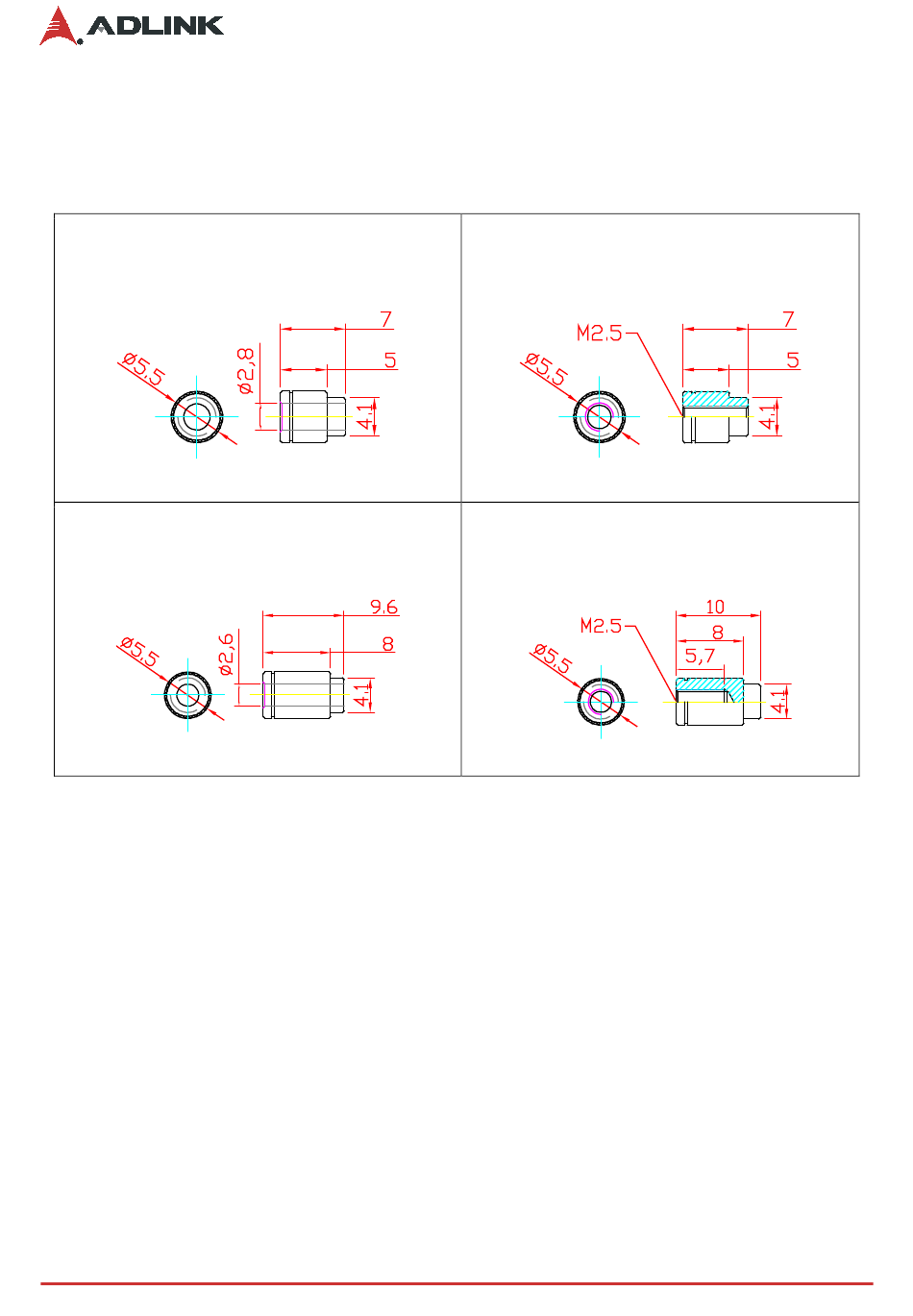

The standoffs available for Top and Bottom mounting methods are shown below. Note that threaded standoffs are
DIP type and through-hole standoffs are SMT type. Other types not listed are available upon request.
5mm through-hole standoff (SMT type)
P/N: 33-72000-0050
8mm through-hole standoff (SMT type)
P/N: 33-72000-0080
80
5mm threaded standoff (DIP type)
P/N: 33-72016-0050
8mm threaded standoff (DIP type)
P/N: 33-72015-0050
Figure 6: COM Express Standoff Types
Mechanical Information
