4. Product Identification

Refer to the drawings below, for how to identify your D2 Turbo/D2 Turbo Low-Voltage motor
and its parts.
1
2
3
4
5
6
7
8
9
1. Motor fuse
2. D2 Turbo 220V orange controller and
D2 Turbo Low-Voltage dark-green
controller
3. 12V 7.2Ah or 5Ah battery
4. Motor enclosure unit
5. Camlock cover
6. Manual Release thumbwheel
7. Foundation plate
8. Gate-mounted origin marker
9. Origin marker bracket
10. Selection knob
www.CentSys.com
10
11
12
13
14
15
16
17
18

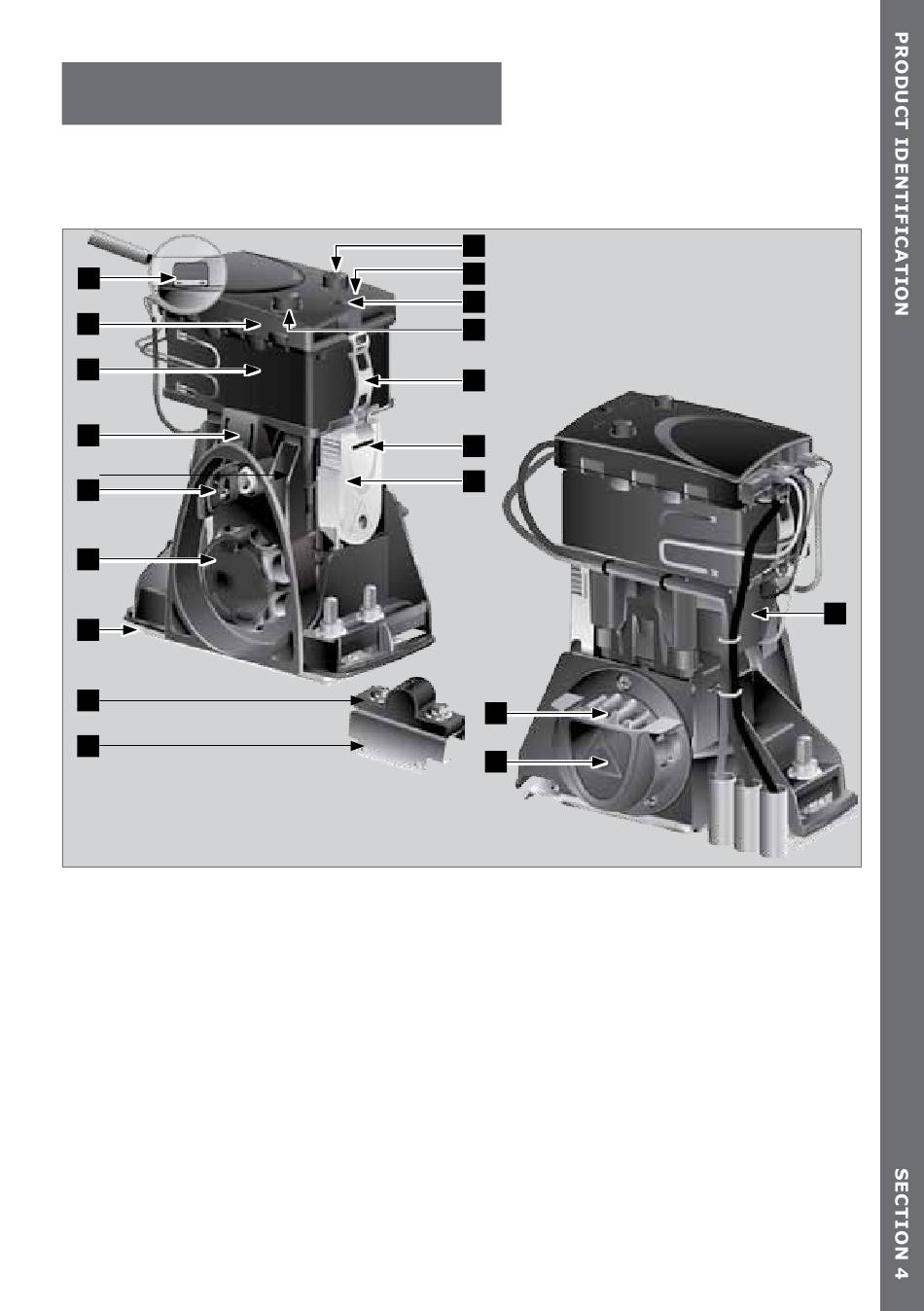

FIGURE 2. PRODUCT IDENTIFICATION
11. Status LED
12. Function Dial
13. Selection knob
14. Battery strap
15. Spare fuse
16. Pulley guard
17. Pinion
18. Pinion guard
19. Motor housing
page 15
