CENTURION SYSTEMS D2 Turbo Installation Manual page 37

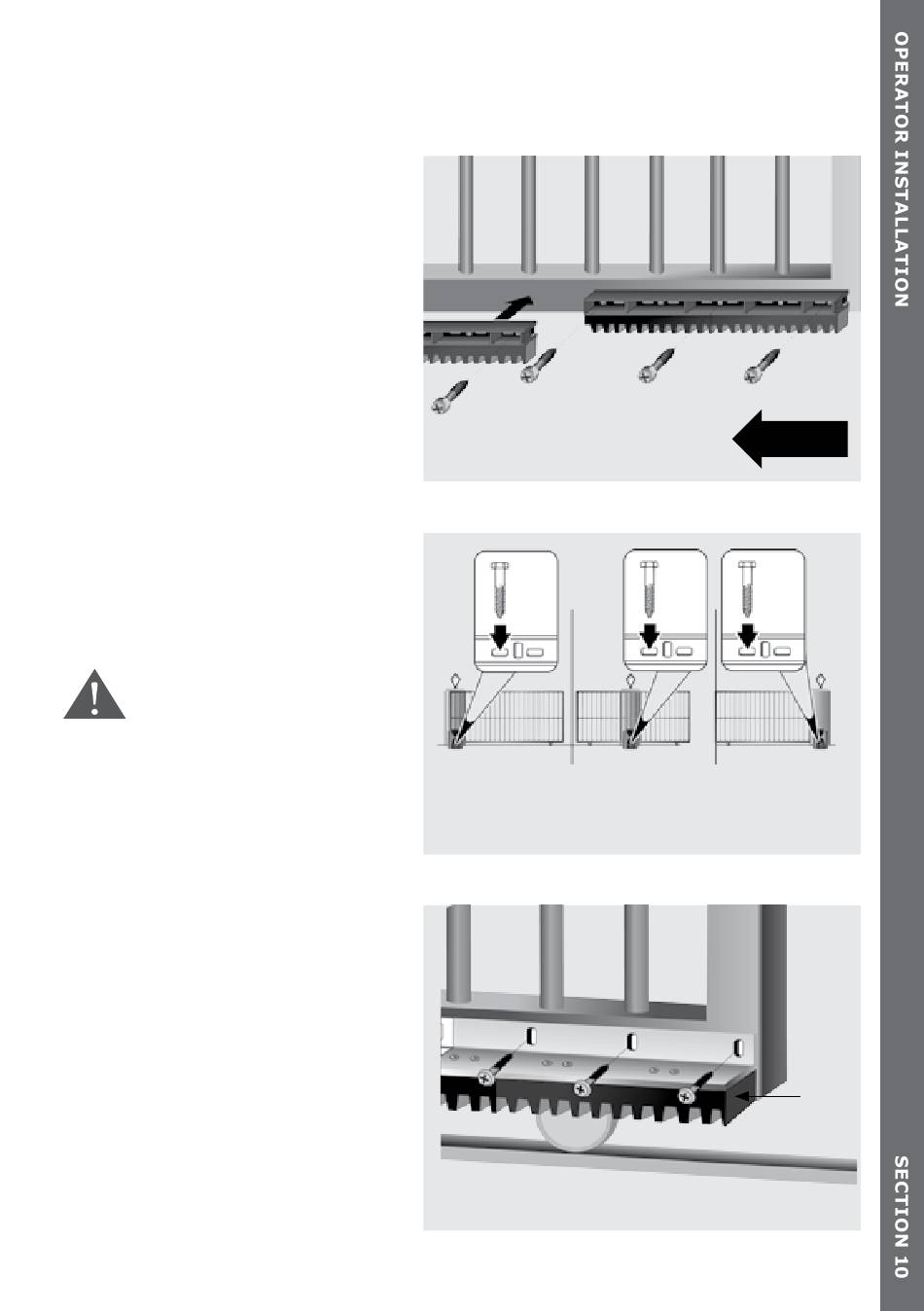

When fitting RAZ rack it is easier to
start on the right and work towards
the left.
RAZ rack simply clips together.
Fit additional fixing
screws through the
horizontal slots to secure
the rack to the gate
directly above the pinion
when the gate is in the
closed, pedestrian and
open positions.
10.4.3. Nylon Angle rack
Fix the rack to the side of the gate
using the TEK screws provided.
Ensure that all the mounting holes
provided in the angle section are
used
www.CentSys.com
Gate Pedestrian
closed
TEK screw
(Self drilling and tapping screw)
page 37
Start on
the right
FIGURE 45
Gate
opening open
FIGURE 46
FIGURE 29.
mounting holes
FIGURE 47
Nylon
angle
rack
Use all
