18. Manual Operation

Disengage the gearbox/drive

To manually override the operator you will need to:
Open the camlock cover, insert
the camlock key and rotate it 90°
clockwise (the cover can also be
removed at this stage if so desired).
This will allow for the rotation of the
Manual Release thumbwheel.
By turning the Manual Release
thumbwheel 90° counter-clockwise
until it clicks, the motor pinion will
be put into 'Manual Mode'.
Re-engage gearbox/
drive
To re-engage the drive mechanism
of the operator you will need to:
Turn the Manual Release
thumbwheel 90° clockwise until it
clicks.
Once you have re-engaged the drive
mechanism, don't forget to lock the
camlock by inserting the key and
rotating it 90° counter-clockwise –
this will help prevent unauthorised
tampering with the operator.
www.CentSys.com page 93

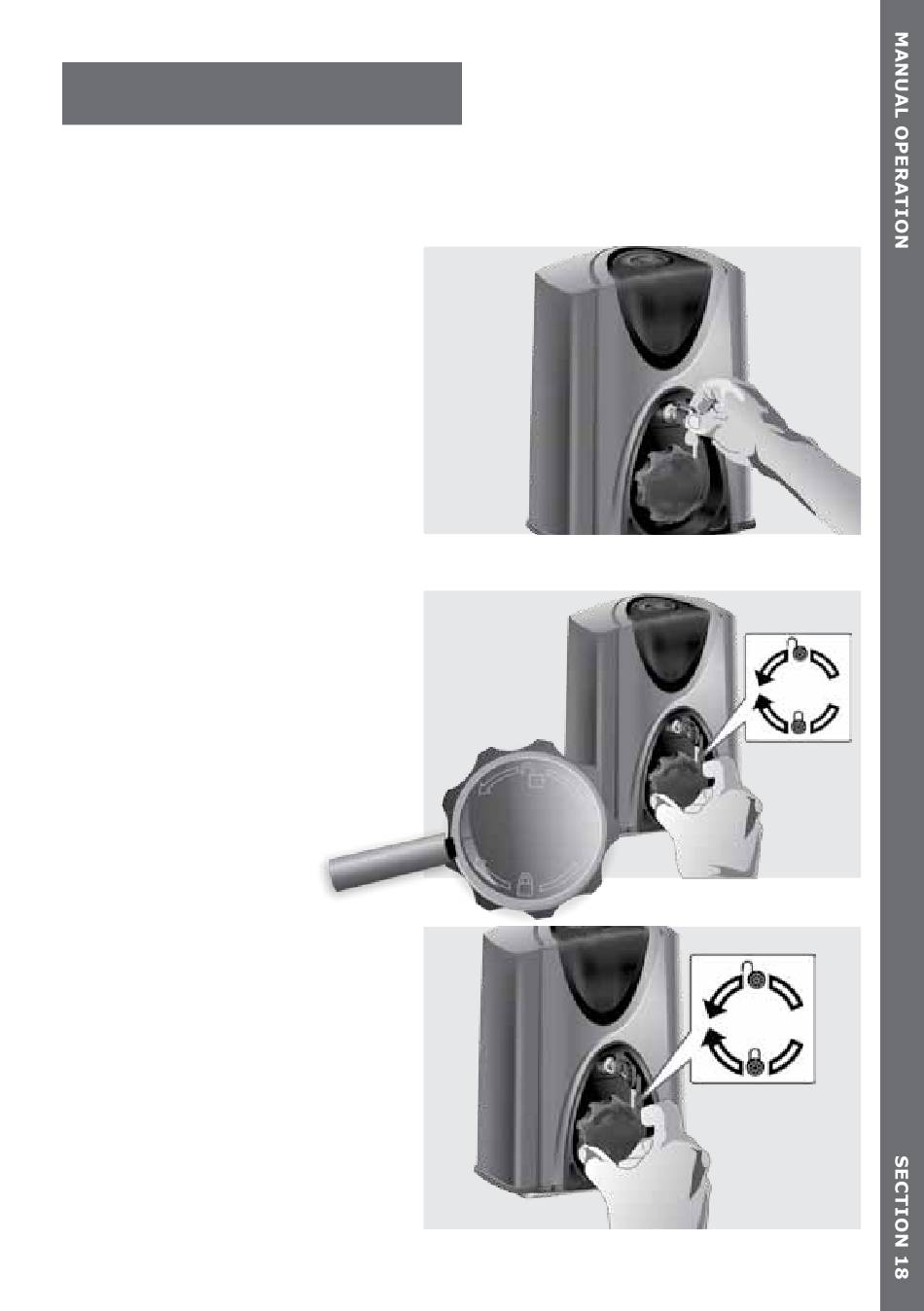

FIGURE 144
