CENTURION SYSTEMS D2 Turbo Installation Manual page 68

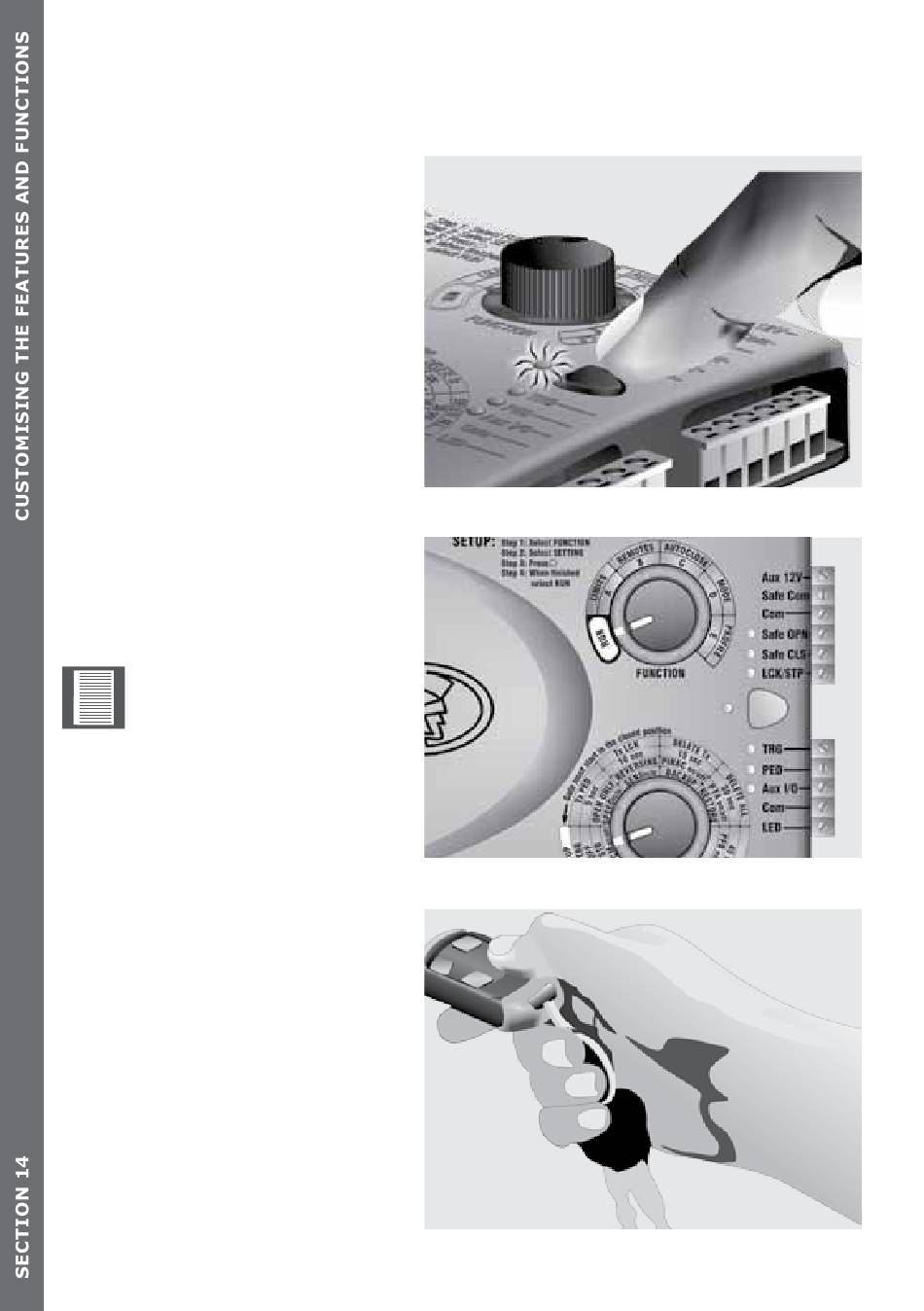

When using the Select pushbutton
to toggle between preferences, the
status LED will light up as green to
indicate On or High; or alternatively
red to indicate Off or Low.
The Function Dial must
always be returned to the
Run position (rotated fully
counter-clockwise) after
you have finished setting up
any of the features, modes
or profiles. This ensures
that it will be ready for use.
Remote control
administration
The D2 Turbo controllers incorporate
an onboard multichannel receiver
compatible with code-hopping
technology.
The receiver will allow any
combination of the different inputs -
Trigger (Gate fully open), Pedestrian,
Holiday Lockout, etc. to be operated
from a single multi-button remote
control.
page 68
FIGURE 95
FIGURE 96
FIGURE 97
