Mount The Origin Marker - CENTURION SYSTEMS D2 Turbo Installation Manual

When joining two lengths together,
simply butt each section firmly
together to ensure the correct pitch.

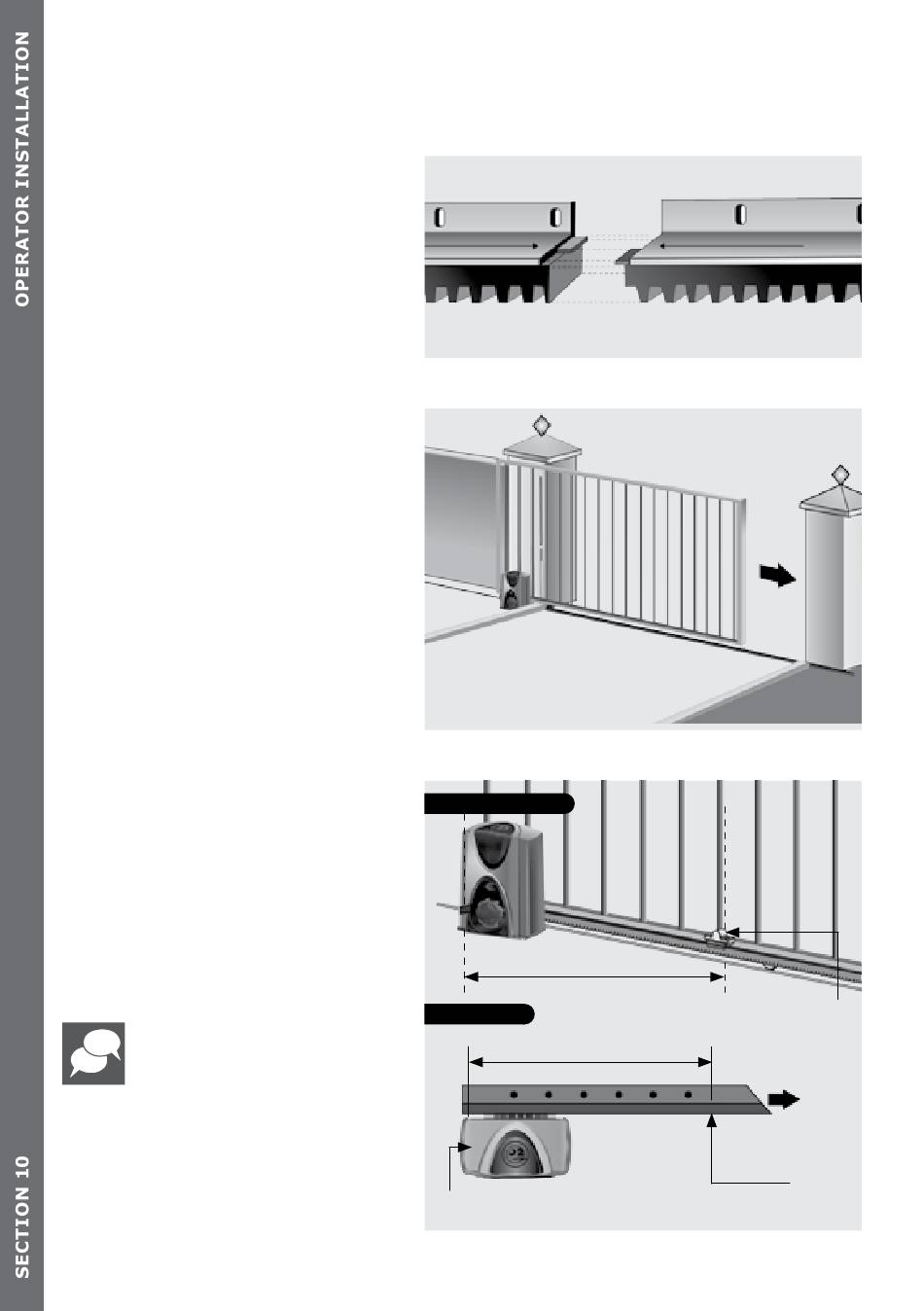

10.5. Mount the origin
marker
Close the gate completely.
Mount the origin marker to the rack,
making sure that there is a minimum
of 500mm from the origin sensor.
Refer to Figure 50, isometric view A
or plan view B.
It is possible to make the
distance between the origin
marker and the origin
sensor much greater than
500mm. However, if using
the Pedestrian Opening
facility, it is preferable to

mount the origin marker

inside of the Pedestrian
Opening point (even though
the position of the marker
will not affect the width of
the Pedestrian Opening).
Butt firmly
together
Isometric view A
Greater than 500mm
Plan view B
500mm
Origin
marker
page 38
FIGURE 48
Close
the gate
FIGURE 49
Origin
marker
Gate
closed
FIGURE 29.
Origin
marker
FIGURE 50
www.CentSys.com
